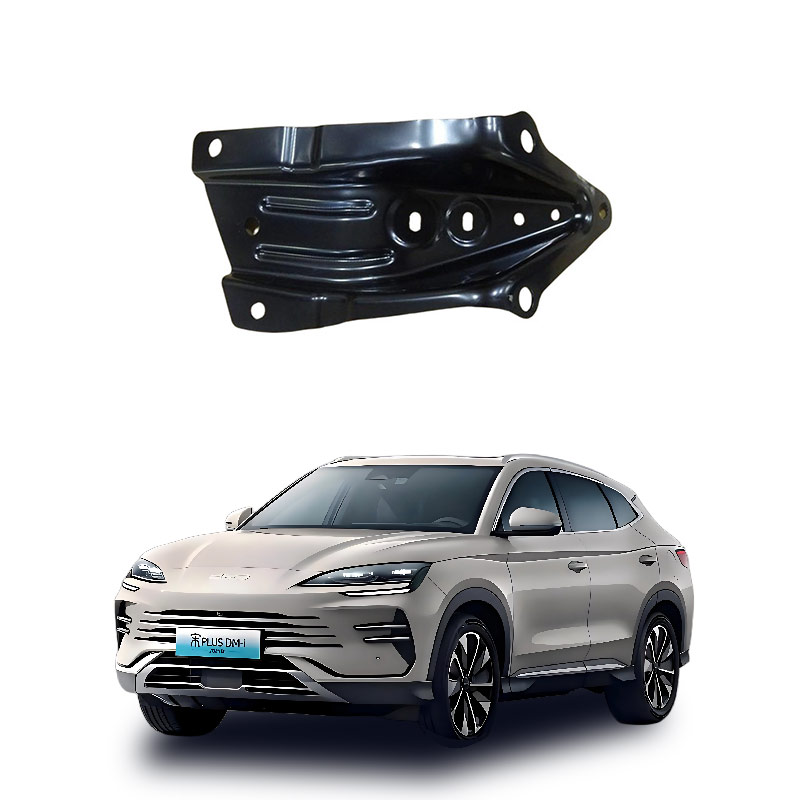

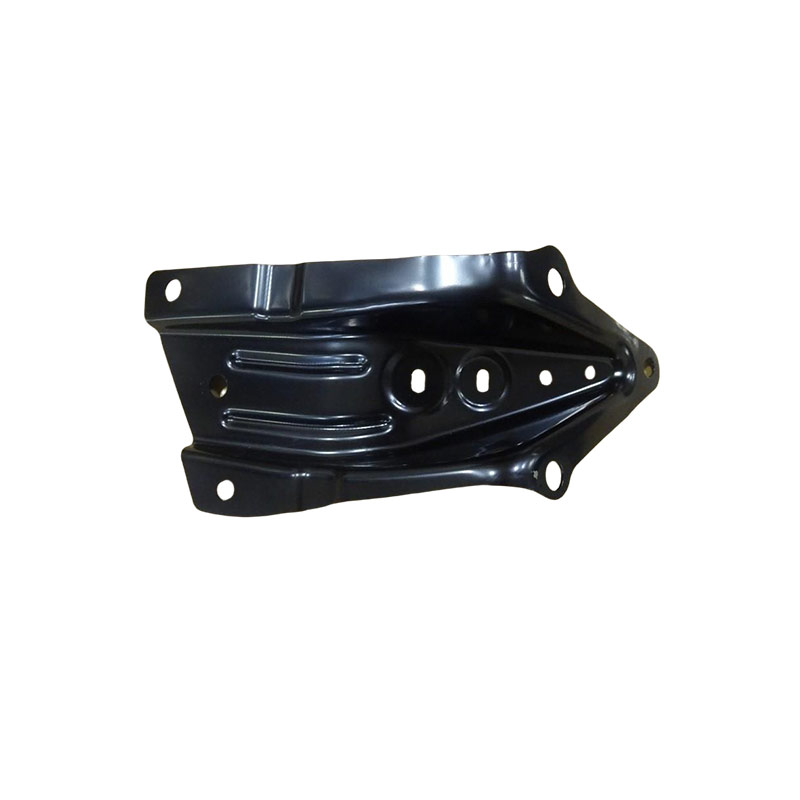

What is the right connecting plate of the side panel reinforcement beam of the car?
The "right side connection plate of the side panel reinforcement beam" is not a standard generic part name. It usually refers to the transitional metal plate that connects the right side structural reinforcement beam (such as the floor sill beam, the lower part of the B-pillar, or the side panel side beam) to the vehicle body structure or other components through welding or bolt connections. Its core function is to distribute collision loads, enhance node rigidity, and achieve reliable fixation of structural components.
Core Definition and Function
Structural Positioning: Located at the key stressed nodes of the vehicle body's right frame, commonly seen at the connection points of the floor sill beam and the front/back longitudinal beams, the B-pillar bottom and the floor crossbeam connection area, or the end of the side panel reinforcement beam.
Main Functions:
Force Flow Transmission: Uniformly distributes the side impact force from the reinforcement beam to the vehicle body frame to avoid stress concentration and resulting fractures.
Rigidity Reinforcement: Fills the connection gaps between different cross-sectional structural components, enhancing the overall torsional stiffness.
Installation Reference: Provides bolt holes or welding points to ensure the precise alignment of the reinforcement beam with the vehicle body.
Common Application Scenarios
Floor sill beam system: Connects the inner panel of the right floor sill to the floor passage, protecting the lower space of the passenger compartment during side impact.
Front/after subframe connection: Some models have a connection plate at the front end of the side beam to fix the suspension or impact energy absorption box.
Integrated door ring structure: In modern vehicles, the A/B pillars and the floor sill are integrated, and the right connection plate may be the segmented welding interface of this ring-shaped structure. Notes for Attention
Non-independent repair parts: This component is often welded or laser-welded together with the vehicle body frame. When severely deformed, the entire side panel assembly needs to be cut and replaced instead of just replacing the connecting plate.
Key for accident determination: If there are signs of cutting, re-welding, or deformation repair on the right connecting plate, the vehicle may be determined as a structural accident vehicle, directly affecting safety performance and residual value.
Naming differences: The naming of different manufacturers' drawings varies (such as "right side panel connection bracket" and "end plate of the side beam"). Specific details need to be confirmed by referring to the corresponding vehicle repair manual or EPC electronic parts catalogue.
For precise identification, it is recommended to provide the specific vehicle model, year, and the approximate location of the component (such as behind the front wheel or under the door), so as to match the official structural diagram.
The right connecting plate of the side panel reinforcement beam is not an independent functional component. It is a key transitional component for rigidly fixing the side panel structure (such as the threshold beam, B-pillar, or longitudinal beam) and other vehicle body components (such as the auxiliary frame, floor, or another side structure). Its core function is to transfer force flow and strengthen nodes.
Core function
Distribute concentrated stress: The side plate reinforcement beam's side impact force or driving torsion force is evenly spread through the connecting plate to adjacent vehicle body frames, avoiding stress concentration at a single weld point or bolt hole, which could cause metal tearing.
Enhance node rigidity: As part of the "strong node" design, the cross-sectional moment of inertia is increased at the connection point to prevent local deformation of the vehicle body during cornering or bumps, ensuring the integrity of the passenger compartment.
Ensure structural integration: Through welding or high-strength bolts, the right reinforcement beam is tightly locked with the vehicle body main body, forming an integral load-bearing frame for the dispersed sheet metal parts, enhancing the vehicle's torsional stiffness.
Safety and performance impact
Collision safety: In the event of a side impact on the right side, this connecting plate assists in guiding the impact force to the roof longitudinal beam and bottom longitudinal beam, reducing the amount of door indentation, and preserving the space for the occupants.
Dynamic stability: Suppress the flexible swaying of the vehicle's right side during high-speed lane changes or emergency evasive maneuvers, improving handling accuracy.
Durability guarantee: Eliminate the risk of connection loosening caused by long-term vibration and prevent fatigue cracks from extending from the connection point.
Note: The specific structural form (such as L-shaped, T-shaped, or arc-shaped) varies by vehicle platform. If this component is deformed or broken, it usually indicates that the vehicle's right side has suffered a severe impact, and professional assessment of structural safety is required.
