What is the component of the reinforced plate for the left rear door lock of the car?

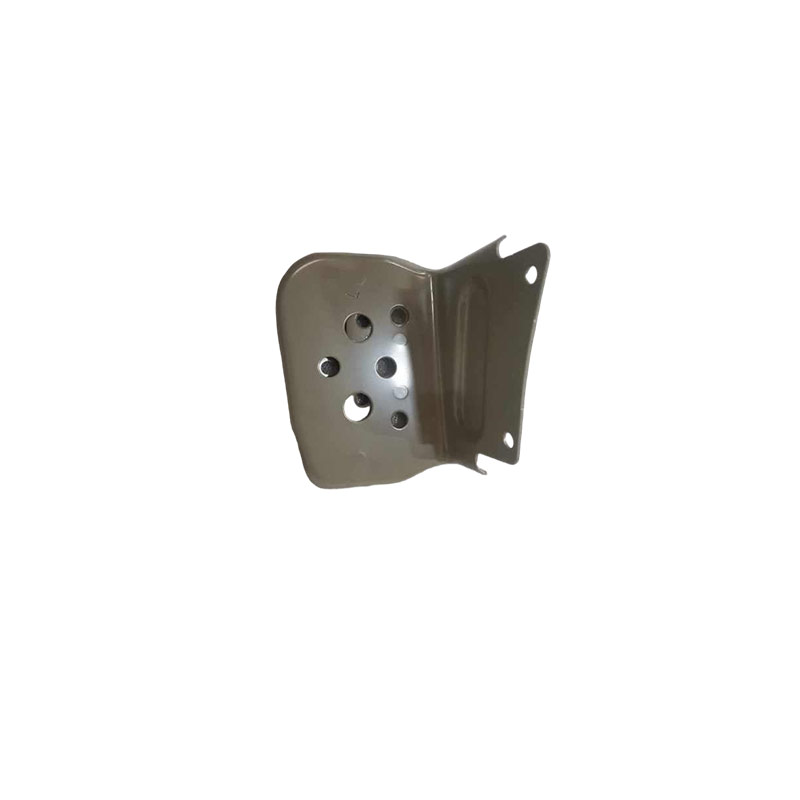

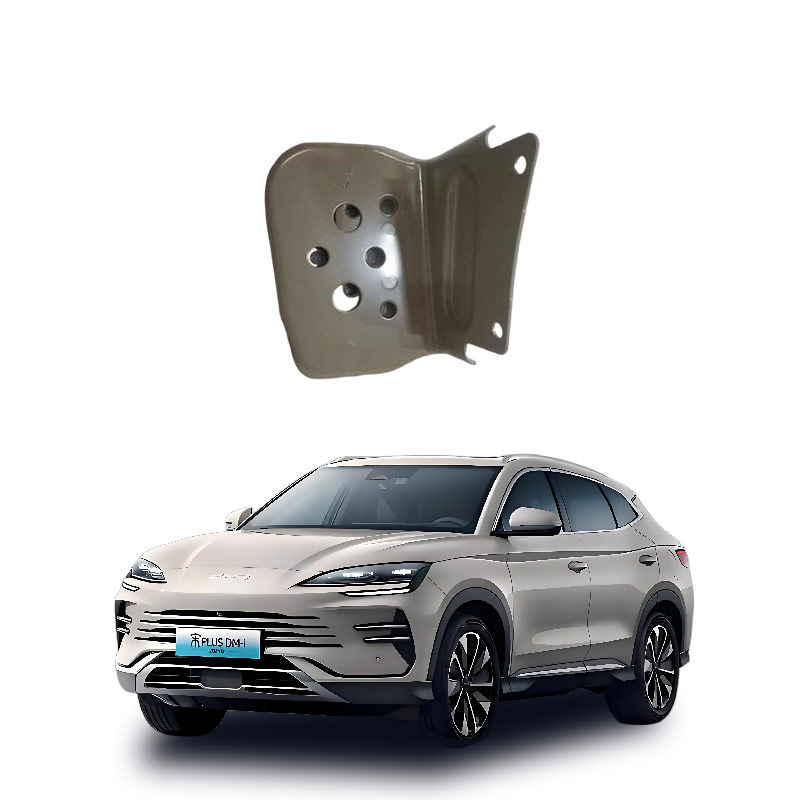

The left rear door lock reinforcement plate assembly is a metal support structure component that is welded to the left rear door frame or the inner side of the C-pillar, used to fix the door lock catch (or lock body) and enhance the local stiffness of this area. Its main function is to prevent sheet metal deformation during door opening and closing, ensure locking reliability, and optimize the sound quality when closing the door.
Core Definition and Function
Essentially: It is a non-independent moving part, belonging to the static reinforcing sheet metal part in the body-in-white (BIW) or door assembly. It is usually made of high-strength steel through stamping.
Location: Installed on the inner side of the corresponding body pillar (B-pillar or C-pillar) at the edge of the left rear door or on the back of the door inner panel lock catch installation position, directly bearing the load of the door lock catch bolts.
Main Function:
Enhance stiffness: Disperse the load on the lock catch to avoid long-term door opening and closing causing stretching deformation or loosening at the installation point.
Precise positioning: Provide a high-precision installation reference plane/holes to ensure accurate alignment of the lock catch with the vehicle lock tongue.
NVH optimization: Some designs include an air cavity foaming structure to suppress closing vibration noise and improve sound quality.
Safety force transmission: Assist in transmitting impact force during side collisions to maintain the integrity of the door structure.
Typical Structural Components
This component is usually an integrated or separately welded structure, consisting of the following key features:
Reinforcement plate body: Main steel plate, often with reinforcing ribs or box-shaped cavities to enhance the bending strength.
Installation interface: Equipped with a nut plate assembly or threaded protrusion for bolt tightening of the lock catch; the edge has a flange for spot welding to fix on the vehicle body.
Auxiliary design: Some high-end models pre-install foamed sound insulation gel in the cavity, which solidifies and fills the space to reduce vibration and noise.
Common Misconceptions
Different from "door lock block": The door lock block is an electromechanical actuator (responsible for operation); the reinforcement plate is a pure structural support component (responsible for stability).
Different from "anti-collision beam": The anti-collision beam is arranged laterally inside the door to prevent side collisions; the reinforcement plate specifically refers to the local reinforcement at the lock catch installation point.
If the vehicle experiences heavy closing, loose lock catch, abnormal closing noise, or uneven door gap after a collision, it is often necessary to check if this component is deformed or if the weld points are cracked.
The core function of the left rear door lock reinforcement plate assembly is to locally enhance the stiffness and strength of the door lock installation point, ensuring reliable locking, dispersing collision loads, and improving the overall structural stability of the door. Core function
Enhance installation point stiffness: Prevent deformation of the door inner panel when frequently opening and closing the door or under force, ensure precise installation position of the lock body, and avoid abnormal sounds or lock failure.
Distribute concentrated load: Effectively transfer the locking impact and lateral force from the lock point to the door inner panel and a larger structural area, reducing the risk of cracking caused by local stress concentration.
Ensure collision safety: Maintain the integrity of the door lock mechanism during side collisions, prevent the door from accidentally opening, and protect the safety of passengers.
Optimize NVH performance: Enhance local rigidity to suppress vibration, improve the quality of the closing sound, and reduce low-frequency rumbling noise.
Structural and Position Characteristics
Installation position: Welded to the corresponding back area of the left rear door inner panel where the door lock is located, with part of the design connecting the inner and outer panels to form a sandwich support structure.
Material and Process: Usually uses 1.2mm - 1.6mm thick high-strength steel plates, formed by stamping and with reinforcing ribs and bent edges to maximize bending resistance.
Synergistic Effect: Often forms the vehicle door load-bearing framework together with the hinge reinforcement plate and impact beam, enhancing the overall side rigidity of the vehicle.
This component may seem insignificant, but it is a key foundation component for the durability and passive safety of the door, especially for the left rear door (which often carries child seats or is frequently used), it is even more important.
