The rear mounting bracket of the front module of the car - what is it?

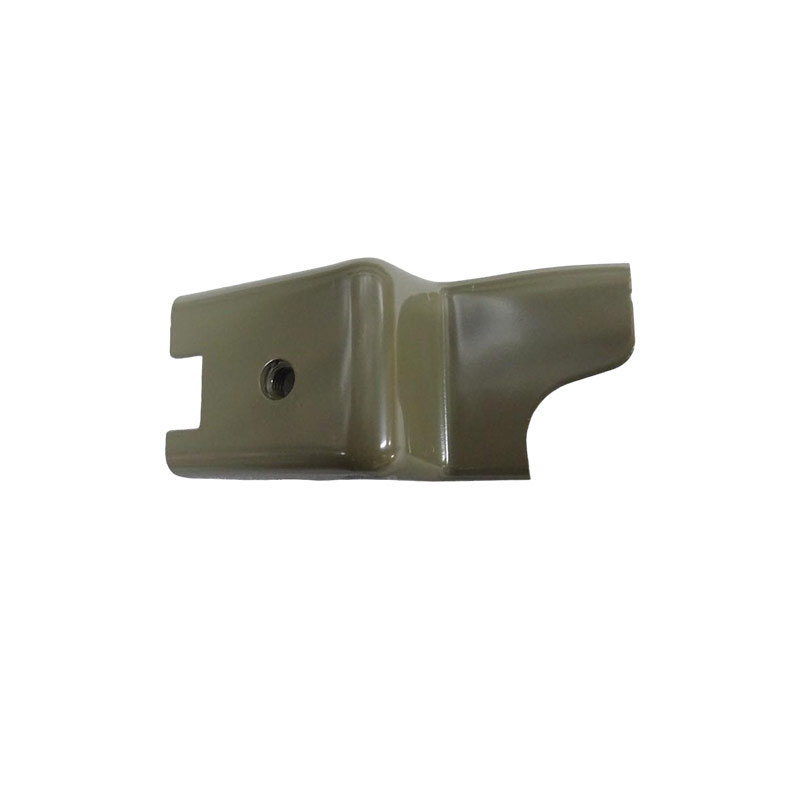

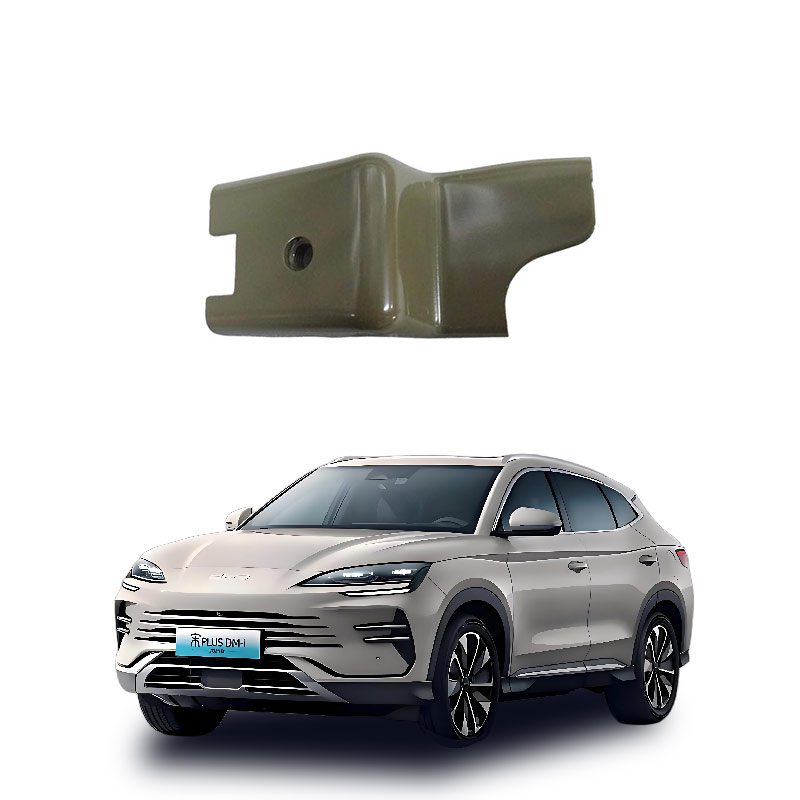

Front-end module of the vehicle - The right mounting bracket is a key metal component that connects the vehicle's front longitudinal beam and the front module assembly (including radiator, condenser, headlights, etc.), located on the right side of the vehicle.
Core definition and function
Positioning and fixation: As the "anchor point" of the front module on the right side of the vehicle, it is fixed to the vehicle's front longitudinal beam using bolts or welding to ensure the precise position of components such as headlights, water tank, etc., and prevent displacement during driving.
Load transfer: It bears part of the weight of the front module and, in the event of a frontal collision, assists in transferring and distributing the impact force to the vehicle's main structure to protect core components.
Modular assembly foundation: In the modern "modular production" process of automobiles, this bracket is a key interface for pre-installing the front module and then hoisting it into the vehicle, significantly improving assembly efficiency and accuracy.
Structural features
Material and form: Usually made of high-strength steel sheet stamping or aluminum casting, the structure is often designed with reinforcing ribs, flanges, and multiple bolt installation holes to balance lightweight and rigidity.
Symmetrical design: Its structure is usually mirror-symmetrical to the "left mounting bracket", jointly forming the left-right support system of the front module.
Subdivided types: Depending on the specific model, it may be divided into "upper connection bracket" (fixing the upper crossbeam) and "lower connection bracket" (connecting the anti-collision beam energy absorption box), and some models also include a dedicated sub-bracket for fixing the front cover lock.
Common faults and maintenance
If this bracket shows deformation, fracture, or loose bolts, it will cause the headlights to deviate in the illumination angle, the radiator to tilt and leak water, the engine hood gap to be uneven, or abnormal resonance during driving. Maintenance usually requires disassembling the front module for replacement, and it is recommended to preferentially use original factory parts to ensure compatibility.
The "right mounting bracket" commonly referred to usually means the "engine right bracket" (also known as the right engine foot), which is a key suspension component connecting the engine to the vehicle. Its core functions are as follows:
Fixing the engine position: Stabilizing the engine in the designated position of the frame to prevent significant displacement or shaking of the engine during driving, accelerating, or braking.
Shock absorption and sound insulation: Using rubber or hydraulic structures to absorb high-frequency vibrations and impacts generated by the engine operation, blocking the transmission of vibrations to the driver's cabin, significantly improving the quietness and comfort of idle and driving.
Protecting surrounding components: Avoiding severe shaking of the engine causing belt loosening, pipeline wear, or loosening of connection bolts, extending the lifespan of the power system.
If this bracket ages and is damaged, common symptoms include: obvious numbness of the steering wheel at idle speed, hesitation when shifting gears, increased abnormal noise during cold start, and "thumping" sounds when passing over speed bumps. Some models may also have specific components such as "right engine foot", but in daily usage, the majority cases refer to the engine suspension system.
"The right mounting bracket of the front module of the vehicle" usually refers to the plastic/metal support components that fix the front bumper, radiator frame (behind the anti-collision beam), headlights or ACC radar, rather than the engine foot. The failure of this component is often caused by collision, aging and cracking, or loose bolts, and the core impact is "displacement of exterior components, abnormal noise, and active safety system alarms".
Core fault manifestations
Visual and structural abnormalities: Uneven gaps on the right front bumper, sagging, or deviation of the headlights position; visible fractures, deformations, or disengagement of the brackets.
Driving abnormal noise: When passing over speed bumps or bumpy roads, the right front side emits "clicking" sounds or metallic impacts, caused by the loose bracket resulting in module resonance.
Electronic system error: If the ACC millimeter-wave radar or the automatic emergency braking (AEB) sensor is fixed with the bracket, positional deviation will cause signal angle deviation. The dashboard will display "Active Braking Not Available" or the relevant fault light will illuminate.
Heat dissipation risk: Severe deformation may squeeze the radiator or condenser, resulting in decreased heat dissipation efficiency or even water leakage.
Diagnosis and repair plan
Preliminary inspection: With the engine off, shake the right front bumper and the headlight components with both hands to check for obvious looseness; visually inspect the bracket for cracks (plastic parts are prone to aging and cracking) or whether the bolts are missing.
Professional diagnosis:
Use a lift to inspect the side connection points of the chassis to confirm if the bracket is bent due to being bottomed out.
If it involves the radar/camera, use a dedicated diagnostic instrument to read the angle calibration data. Simply replacing the bracket is not enough; sensor calibration must be performed otherwise the fault code cannot be cleared.
Repair strategy:
Slight looseness: Tighten the original factory bolts, apply anti-loosening glue, and check if the rubber buffer pad is aging.
Breakage/Deformation: Do not attempt to repair by welding (plastic welding has insufficient strength and affects energy absorption, while metal welding is prone to deformation and affects installation accuracy). It is necessary to replace the original or high-quality aftermarket brackets as a whole.
System reset: If it involves safety sensors, perform ADAS system calibration at a 4S store or professional repair shop. Notes for Attention
Safety Warning: In case of a collision, it is necessary to simultaneously check whether the internal anti-collision beam and energy absorption box are damaged to avoid only replacing the appearance bracket while leaving potential safety hazards.
Accessory Matching: The front module structure of different model years varies greatly. When purchasing, it is necessary to verify the VIN code to ensure that the bracket hole positions and wiring interface are completely matched.
Temporary Handling: Before repair, avoid driving over bumps at high speed to prevent the module from completely falling off and blocking the view or getting caught in the wheels.
It is recommended to go to a professional repair facility for lift inspection as soon as possible. Especially for the failure of the bracket of the active safety system, priority should be given to ensuring the installation accuracy of the sensors.
