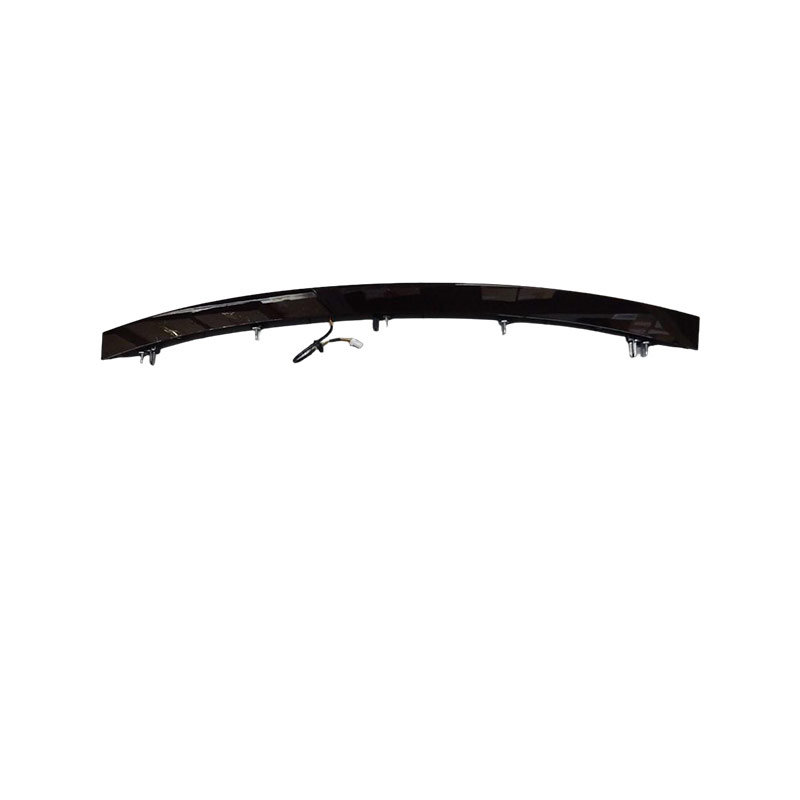

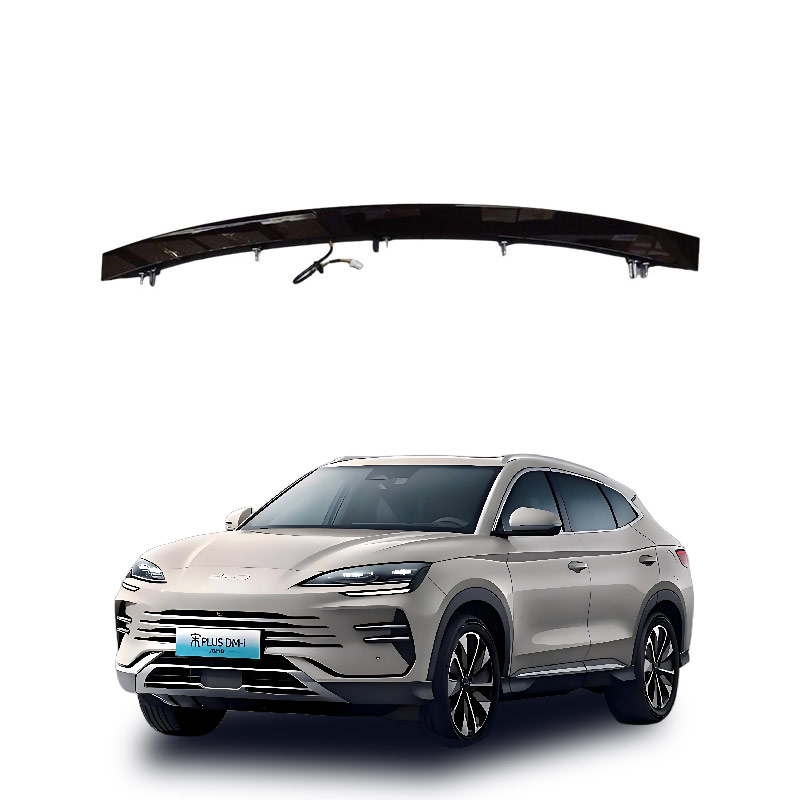

What is a high-mounted brake light for cars?
The automotive high-mounted brake light, officially known as the "High-Position Brake Light" (CHMSL), also referred to as the "Third Brake Light", is a red braking signal device installed at the central position above the vehicle's rear end.
Key features:
- Installation location: Typically located at the top of the rear windshield, above the trunk lid, or at a height along the vehicle's rear center line, forming a "three-point" warning layout.
- Light color: Strictly specified as red, taking advantage of the long wavelength and strong penetration of red light to ensure clear recognition even in adverse weather conditions such as rain and fog.
- Main function: To compensate for the visual blind spots of traditional low-position brake lights, especially when the following vehicle is a high-profile truck or bus, it can more intuitively and quickly convey the braking signal, effectively reducing the risk of rear-end collisions.
Technical evolution:
- Light source type: Initially, gas bulbs were commonly used. Currently, the mainstream has been fully upgraded to LED lighting units. LEDs have the advantages of high brightness, fast response time (microsecond level), long lifespan (up to 100,000 hours), and no radiation pollution.
Regulatory requirements: Since the 1980s, most countries, including the United States and China, have made high-position brake lights a mandatory safety feature for passenger vehicles.
In summary, it is a passive safety key component that enhances safety by increasing the height of the warning and improving the visibility of the braking signal, thereby effectively reducing the risk of rear-end collisions.
The core function of the automotive high-mounted brake light (also known as the "High-Position Brake Light" or "Third Brake Light") is to eliminate visual blind spots and enhance the clarity of the braking signal, thereby effectively reducing the risk of rear-end collisions. Core function
Eliminating Blind Spots in Vision: The standard brake lights are positioned low, which can be easily blocked by large vehicles (such as trucks and buses) behind. Installing them at a higher position (usually on the upper part of the vehicle tail, the top of the rear windshield, or within the spoiler) ensures that drivers of vehicles with a low chassis can clearly see the braking signal.
Enhancing Signal Recognition: As an auxiliary light independent of the left and right side brake lights, its centered and elevated design is more penetrating and eye-catching in complex light conditions, rain and fog, or at night, helping the following vehicle to detect the braking intention of the preceding vehicle earlier.
Shortening Reaction Distance: Modern high-position brake lights mostly use LED light sources, which light up faster by more than 0.2 seconds compared to traditional bulbs. In high-speed driving, this can significantly increase the reaction distance of the following vehicle (about 6 meters at a speed of 100 km/h), providing crucial time for avoiding danger.
Technical Features and Regulations
Compulsory Configuration: According to the regulations of most countries around the world (such as the United States since 1986 and China's GB 7258 standard), passenger vehicles must be equipped with high-position braking lights, and the light color must be red, with strict standards for the light area and height.
Smart Evolution: Some high-end models have integrated dynamic warning functions, which further warn the following vehicle through flashing or high-brightness mode during emergency braking, even combining with the ADAS system for active warning.
In summary, it compensates for the visual deficiencies of traditional brake lights through "position advantage" and is an indispensable part of the modern automotive passive safety system.
Common Faults of High-Position Brake Light (High-Position Braking Light) Failures mainly manifest as "not lighting, flashing or constantly on", and the core reasons are concentrated in "bulb/lamp assembly damage, brake switch failure, poor contact in the circuit, and fuse melting". It is recommended to troubleshoot in the order of "from simple to complex" and prioritize the resolution of low-cost components.
Common Fault Causes and Troubleshooting Steps
Bulb or LED Lamp Assembly Damage
Symptom: Partial or total failure to light up, visible filament breakage in halogen bulbs, or failure of the LED lamp assembly due to solder point detachment or drive chip breakdown.
Solution: Remove the lamp cover for inspection. If it is a halogen bulb, replace it with a new one of the same specification directly; if it is an integrated LED lamp assembly, it usually needs to be replaced as a whole.
Note: Avoid touching the glass part with your hands to prevent high-temperature cracking caused by oil contamination.
Brake Light Switch Failure
Symptom: No "clicking" sound when stepping on the pedal, or neither the high or low position brake lights light up. The switch is located above the brake pedal and long-term stepping can cause wear or sticking of the contacts.
Solution: Unplug the switch plug, short-circuit the two contacts with a wire, and if the lights turn on, it proves that the switch is damaged and needs to be replaced; for some models, the switch needs to be reset after replacement.
Line and Plug Issues
Symptom: The lights flicker on and off.
Solution: Check if the wiring harness at the tailgate is damaged, clean the oxidation layer on the plug and apply conductive grease; use a multimeter to detect if there is voltage input when stepping on the brake.
Fuse Melting
Symptom: The high-position and low-position brake lights fail to light up simultaneously, and other electrical devices are normal.
Solution: Refer to the vehicle manual to find the location of the brake light fuse, check if it is melted, and replace it with a fuse of the same specification; if it melts again, it indicates a short circuit in the circuit, and professional repair is required. Self-inspection technique: Park facing the wall or ask someone for assistance. Observe the intensity of the reflection when you step on the brake through the rearview mirror. Conduct this check at least once a month.
If you want to know more, keep reading the other articles on this site!
