What is the front pressure relief support component of the car?
There is no standard term "front compression upper support assembly" in automobiles. This expression is most likely a misnomer or colloquial confusion for the "front shock absorber top mount" or "front shock upper support assembly". The term "compression" here has no clear engineering equivalent; it typically refers to the functions of buffering, vibration isolation, and load transfer.
Core Definition

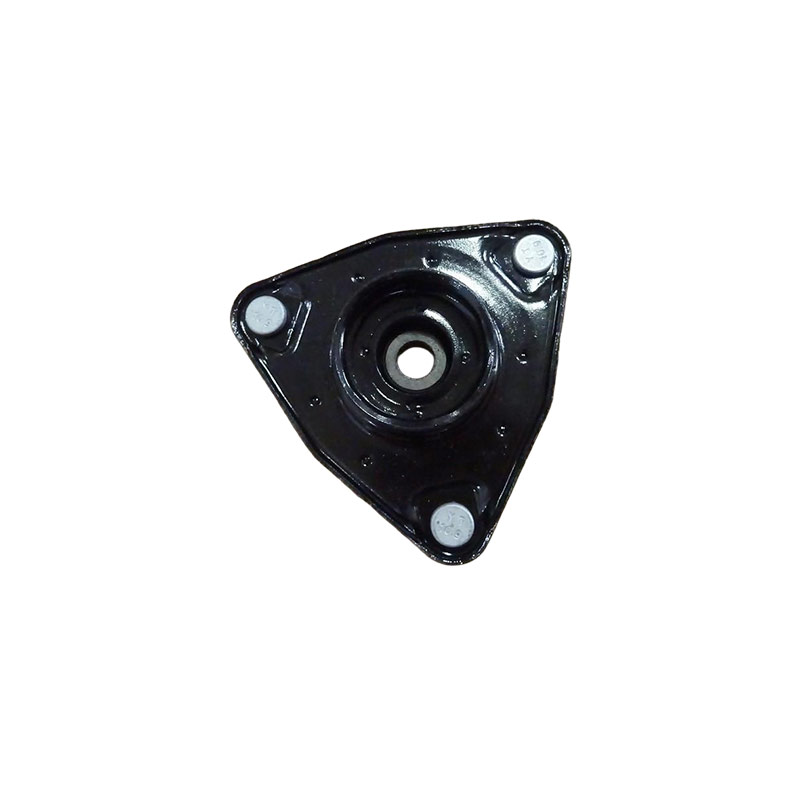

Formal Name: Front Shock Absorber Top Mount, commonly known as "top rubber", "tower top", or "upper support".
Location: At the top of the front suspension, connecting the shock absorber piston rod to the body fender liner (shock tower).
Essence: It is a key flexible connection node between the suspension system and the body, rather than a "compression" device.
Main Components and Functions
This component is typically composed of a metal bracket, rubber vibration isolators, and a flat bearing. Its main functions are as follows:
Load Transfer: Transfers the vertical impact force from the wheels to the vehicle frame through the shock absorber.
Vibration Isolation and Noise Reduction: The internal rubber or polyurethane elements absorb high-frequency vibrations, preventing road noise from entering the cabin (i.e., the "compression/buffering" effect mentioned).
Steering Support: Integrates a flat bearing, allowing the shock absorber pillar to rotate with the steering wheel, enabling the wheel steering function.
Positioning Maintenance: Assists in maintaining stable parameters such as the front wheel camber.
Common Fault Phenomena
If this component is aged or damaged, the following typical symptoms will occur:
When passing over bumps or potholes, the front of the vehicle emits a "clunk" metal impact sound.
The steering wheel shows abnormal shaking or a heavy turning sensation.
The vehicle's resonance intensifies, and the noise inside the cabin significantly increases.
When checking, directly search for the corresponding "front shock absorber upper support" or "front top rubber" parts, without focusing on the term "compression".
There is no standard term "front compression upper support assembly" in the automotive industry. This expression is most likely a misnomer for the "front shock absorber top mount" (commonly known as "top rubber" or "shock tower top"), where "compression" actually means "decompression/buffering". Its core functions are as follows:
Load Bearing and Fixation: As a key component connecting the front shock absorber assembly to the vehicle tower top, it bears the weight of the vehicle and vertical loads during driving, ensuring the stability of the shock absorber installation position.
Vibration Isolation and Noise Reduction: The internal rubber or polyurethane elements can absorb high-frequency vibrations generated by road impacts, isolating noise from entering the cabin, and improving ride comfort.
Auxiliary Steering: Most front supports include flat bearings, allowing the shock absorber pillar to rotate with the wheels, ensuring smooth steering and avoiding jamming.
Protective Structure: Distributes the impact force to the vehicle frame to prevent the tower top from deforming or cracking due to direct metal collision.
If the vehicle has a "clunk" abnormal sound in the front when passing over bumpy roads, a heavy steering feeling, or a shaking steering wheel, it is usually caused by the aging of the rubber or damage to the bearings of this component, and timely replacement is necessary to ensure safe handling.
"Front compression upper support assembly" is not a standard automotive term. In the context, it usually refers to the "front shock absorber upper support (including pressure bearing/top rubber)" or "engine hood hydraulic support rod". The fault manifestations and handling methods of these two are completely different. Please check according to the specific symptoms:
If referring to the "front shock absorber upper support/pressure bearing" fault (chassis suspension system)
This component connects the shock absorber to the vehicle and is responsible for transmitting loads and allowing steering rotation.
Typical Symptoms:
Sound: At idle or low-speed steering, a "clunk", "squeak", or metal friction sound is emitted from above the front wheels; when passing over bumps, there is a dull impact sound.
Control Abnormalities: Reduced steering return force, uneven steering resistance, and decreased vehicle stability at high speeds. Tire wear: Due to deviation of positioning parameters, the tire shows abnormal single-sided zigzag or irregular wear.
Causes: Wear of pressure bearing balls, loss of lubricating grease, aging and cracking of the upper supporting rubber top layer, or loosening of the fixing nuts.
Suggestions for handling: The vehicle needs to be lifted to inspect the connection gap. Usually, the upper support assembly and pressure bearing of the shock absorber need to be replaced in pairs, and the four-wheel alignment needs to be redone.
If referring to the "engine hood hydraulic support rod" failure (engine compartment cover)
This component is used to support the engine hood after opening. The interior contains high-pressure gas.
Typical symptoms:
Weak support: The engine hood cannot remain open after being opened and slowly descends automatically.
Stuck/leaking oil: There is oil on the surface of the rod body (sealing failure), or the extension process is stuck.
Causes: Aging of the sealing ring, internal gas leakage, wear of the connecting ball head or loosening of the latch.
Suggestions for handling: Cannot be repaired. It is necessary to directly replace the same specification new part; Do not stretch or bend the rod body擅自， to avoid disrupting the mechanical balance and causing safety hazards.
Emergency safety reminder
If the chassis suspension components fail， continued driving may lead to steering loss or tire detachment. It is recommended to stop immediately and call for rescue.
If the engine hood support fails， the engine hood will accidentally pop open during driving， seriously blocking the view. It is essential to fix the engine hood with auxiliary ropes or avoid long-distance driving before repairing.
Please confirm the specific fault location (chassis or engine hood) to obtain a more accurate repair plan.
