What is the rearview mirror assembly of a car?
The rearview mirror assembly (often referred to as the rearview mirror assembly) is a complete safety system installed inside and outside the vehicle, used to assist the driver in observing the rear and side road conditions. It is composed of mechanical structure, optical components, and electronic modules.
Core Components
Shell: Made of high-strength plastic (such as ABS, PC/ASA alloy), it serves as a protective, supporting, and decorative component. Some are integrated with LED turn signals.
Mirror Surface: The core of optics, divided into flat mirrors (commonly used in the rearview mirror) and convex mirrors (commonly used in the sideview mirror), high-end models are equipped with electrochromic anti-glare glass.
Adjustment Mechanism: Includes a steering motor (electric/automatically adjustable angle) or mechanical linkage (manual adjustment), ensuring precise coverage of the field of vision.
Auxiliary Function Modules: Built-in heating coils (for defogging and deicing), wiring (for signal and power transmission), blind spot monitoring indicator lights, and cameras (for intelligent models).
Classification and Functions
External Rearview Mirror Assembly: Located on both sides of the vehicle, the structure is complex, usually containing folding motors, heating, and blind spot monitoring functions.

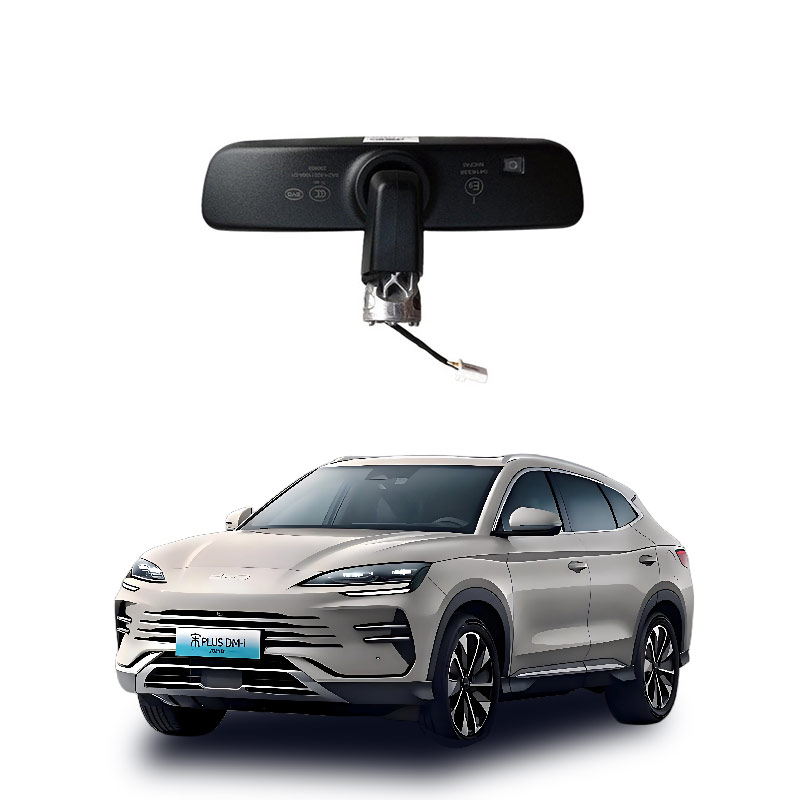

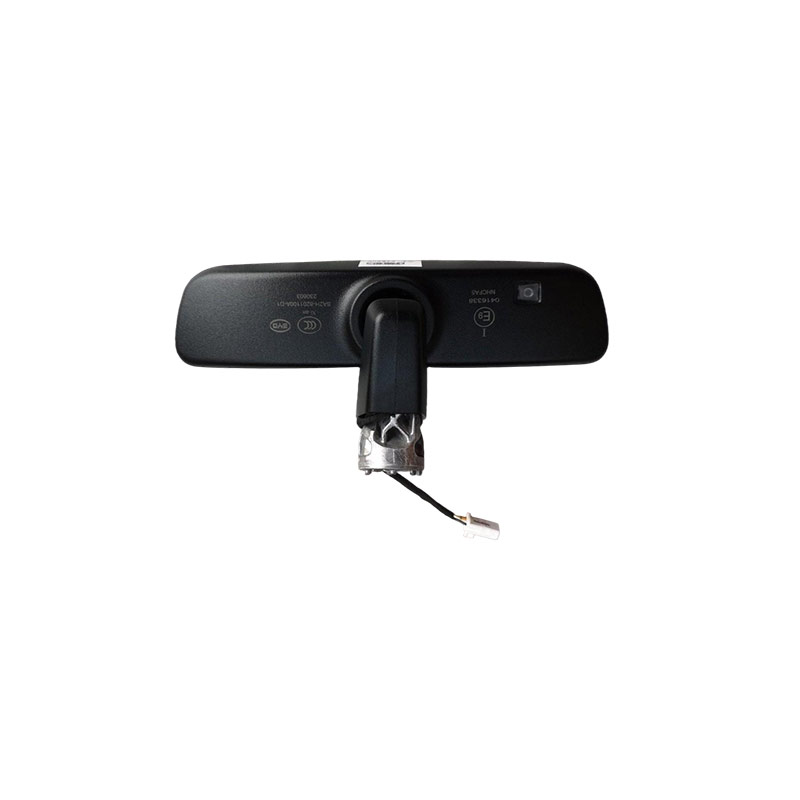

Internal Rearview Mirror Assembly: Located on the inner side of the windshield, mainly focusing on anti-glare function (manual dials or automatic light sensing control).
This assembly is a key safety component of the vehicle. If the internal precision components are damaged, the entire assembly needs to be replaced during repair to ensure performance and safety.
The rearview mirror assembly is a core safety component of the vehicle, mainly serving to eliminate driving blind spots and help the driver grasp the rear and side road conditions in real time, ensuring driving, lane changing, and reversing safety.
Core Functionality
Expand Field of Vision and Eliminate Blind Zones: Through optical reflection (flat mirror or convex mirror), it projects a wide range of scenes from the rear and sides onto the driver's eyes, compensating for blind spots in direct vision, especially the convex design of the external rearview mirror can significantly expand the visible angle.
Assist Driving Decisions: Provides information about approaching vehicles during lane changes, overtaking, and turns, confirming safe gaps; before emergency braking, it observes the distance of the following vehicle to prevent rear-end collisions.
Reverse and Parking Assistance: Cooperates with reverse camera, intuitively judging the relative position and angle of the vehicle and obstacles, and some models have the "reverse automatic flip" function, specifically observing the ground near the rear wheels.
Special Scene Protection: The internal rearview mirror has anti-glare function (manual or automatic), filtering strong light from behind, avoiding blinding during night driving; the external rearview mirror often integrates heating and deicing, ensuring clear vision in rainy and snowy weather.
Component Composition and Added Value
Modern rearview mirror assemblies have gone beyond simple optical reflection and integrate multiple intelligent modules to enhance safety and convenience:
Basic Structure: Composed of the shell (impact-resistant, low wind resistance), lens (anti-distortion, anti-glare), and adjustment mechanism (electric/manual).
Intelligent Integration: High-end assemblies integrate blind spot monitoring (BSD), lane change assist (LCA) indicators, or even replace the lens with an electronic rearview mirror (CMS), providing a stable and clear image even in adverse weather conditions.
Convenient Configuration: Includes electric folding (to prevent scratches in narrow roads during overtaking, and to narrow the vehicle width during parking) and memory function (to quickly restore the commonly used viewing angle).
In short, the rearview mirror is the driver's "third eye", with its core mission being to provide comprehensive environmental perception to reduce collision risks and enhance control confidence.
