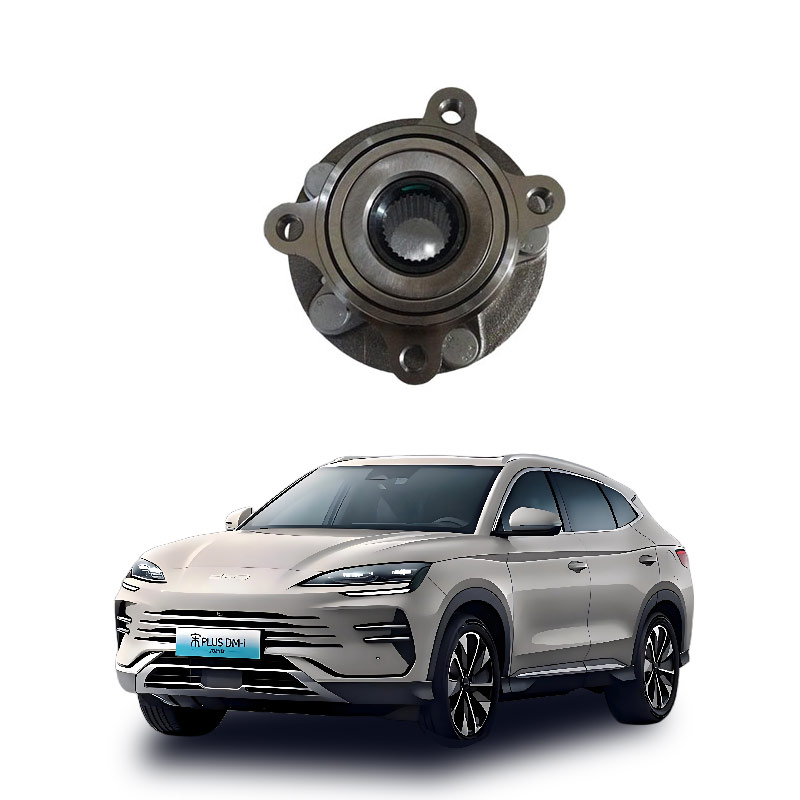

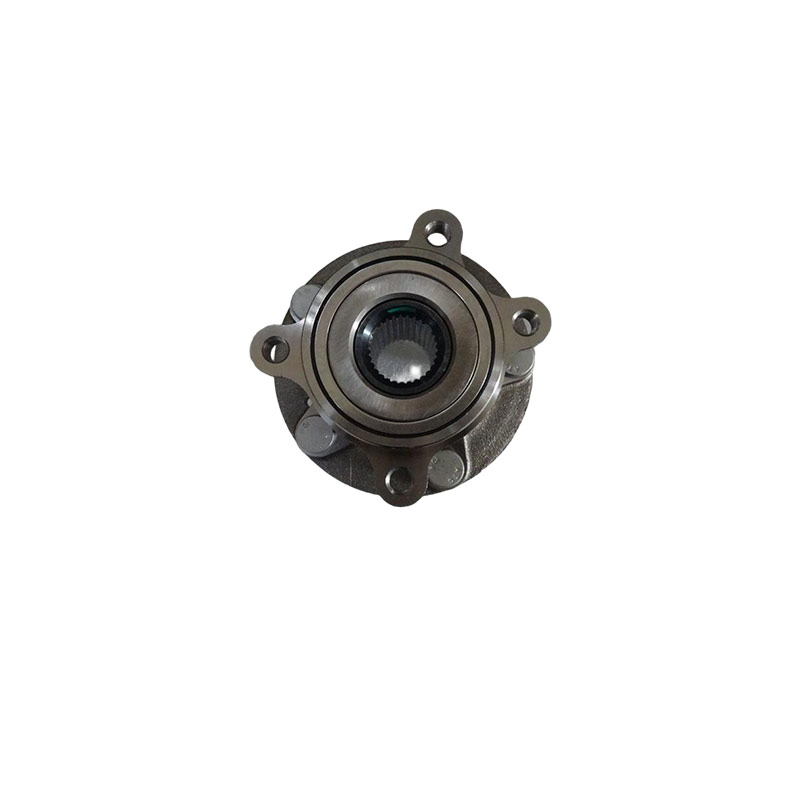

What is the front wheel hub assembly of a car?
The front wheel hub unit assembly is an integrated key component of the chassis, consisting of a hub, bearings, seals, and an ABS sensor ring. It is responsible for supporting the vehicle's weight, ensuring smooth rotation of the wheels, and transmitting steering and braking forces.
Core Definition and Structure
Integrated Design: It integrates traditional separate components such as bearings, shaft heads, and locking nuts into a prefabricated module. It is precisely adjusted for clearance and filled with lubricating grease at the factory, achieving "maintenance-free" operation.
Main Components: Includes the hub body (for installing tires), double-row angular contact ball bearings or tapered roller bearings, high-precision dust-proof and waterproof sealing rings, and a magnetic encoder ring (for collecting speed signals, in conjunction with ABS/ESP systems).
Technical Generation: Modern cars mostly adopt the third-generation hub bearing unit. Its inner ring is integrated with the hub, and the outer ring with a flange directly connects to the steering knuckle, resulting in a more compact structure and lighter weight.
Core Functions
Load-bearing and Rotation: It bears the vertical load of the vehicle and the lateral force during turns, reducing energy consumption through rolling friction and ensuring high-speed rotation accuracy of the wheels.
Power and Signal Transmission: On front-wheel drive vehicles, it cooperates with the half shaft to transmit driving force; at the same time, it integrates sensor interfaces to provide wheel speed data to the ECU in real time to ensure braking stability.
Sealing Protection: It uses a double lip seal structure to effectively prevent sand, water vapor from entering, and prevent early wear or locking of the bearings.
Common Faults and Maintenance
Typical Symptoms: During driving, the front wheels emit a continuous "buzzing" noise (increasing with speed), the steering wheel shakes, or the ABS fault light illuminates.
Replacement Principle: It is an "unreparable" repair part. Once damaged, the entire assembly needs to be replaced; during installation, the flange bolts must be tightened strictly according to the specified torque, and knocking or adjusting the internal clearance is strictly prohibited.
This component directly affects driving safety and handling stability. It is recommended to regularly check if there is oil leakage or abnormal noise at the wheel end. If any abnormalities are found, timely maintenance should be carried out to eliminate potential safety hazards.
The front wheel hub unit assembly is the core hub connecting the wheels to the suspension and steering system, primarily responsible for three core functions: supporting the vehicle's weight, ensuring precise rotation of the wheels, and transmitting various loads.
Core Function
Bear vertical load: It directly bears the weight of the vehicle's front part and transfers the load smoothly to the ground, ensuring driving stability.
Support wheel rotation: It integrates high-precision bearings to significantly reduce friction, enabling the front wheels to rotate flexibly and at low resistance at high speeds during steering and straight driving.
Transfer compound torque: In braking, acceleration, and cornering, it effectively transmits braking torque, driving torque, and complex lateral forces to ensure precise handling accuracy.
Key Auxiliary Function
Integrated ABS signal collection: It includes magnetic tooth rings or sensor target wheels to monitor wheel speed signals in real time, ensuring the normal operation of the anti-lock braking system (ABS) and electronic stability program (ESP).
Sealing Protection: It uses a double lip seal structure to prevent dust and moisture from entering the internal lubrication system, prolonging component lifespan and maintaining stable performance.
