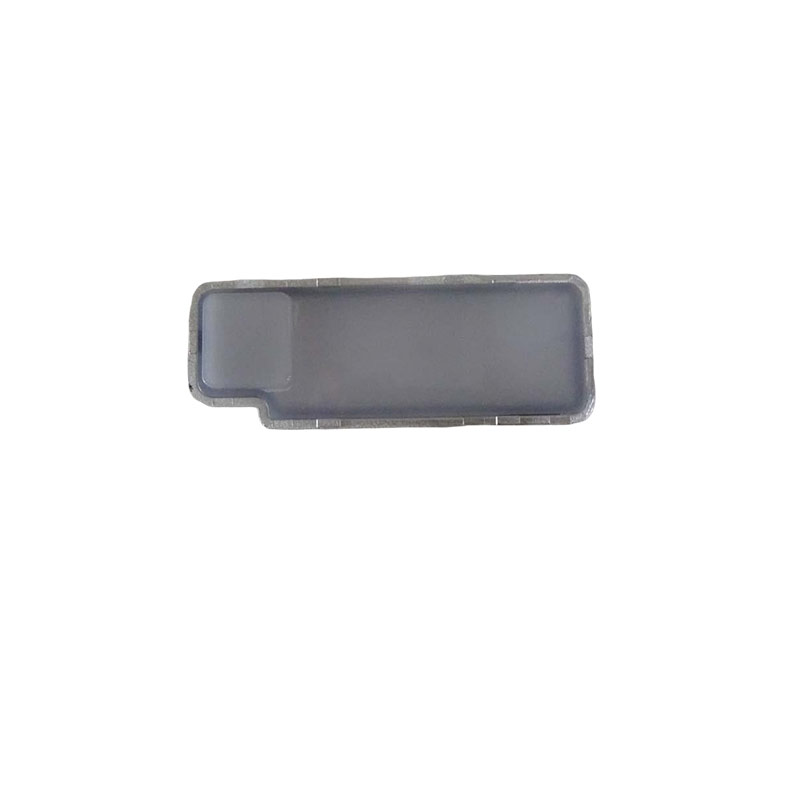

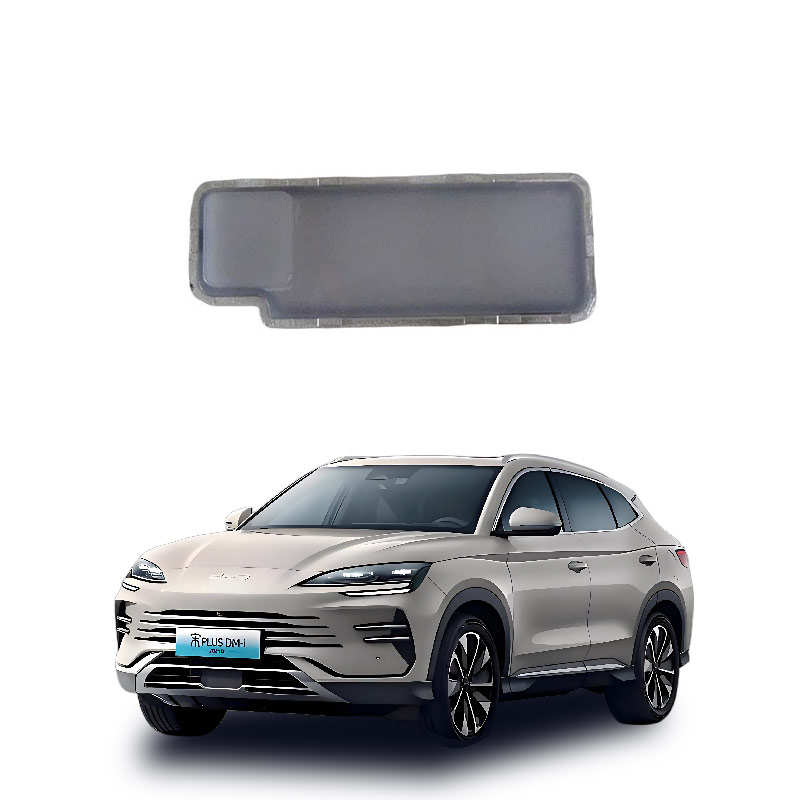

What is the automotive blind spot warning light assembly?
The automotive blind spot warning light module is the execution terminal responsible for providing visual warnings to the driver in the blind spot monitoring system (BSD/BSM), usually referring to the LED indicator lights integrated in the external rearview mirror housing.
Core composition and location
Physical form: Mostly embedded yellow or red LED light sources, some models are designed as triangular, exclamation mark or vehicle icon shapes.
Installation location: Fixed on the inner side of the external rearview mirror lens or the edge of the mirror housing to ensure that the driver can catch the light with their peripheral vision within the normal driving line of sight.
Belonging system: It does not work independently but is the "display end" of the blind spot monitoring system, receiving electrical signals from the control unit to trigger the light.
Working logic and state meaning
This component transmits risk levels through different lighting modes:
Constantly on: The system detects that there is a vehicle in the blind spot area (usually 3-8 meters behind the vehicle), indicating a potential collision risk and suggesting that the driver should not change lanes.
Flickering: On the basis of constantly on, if the driver turns on the same side turn signal, the warning light will flash at a high frequency and may be accompanied by a buzzer sound, indicating that the lane change operation is extremely dangerous.
Off: No object in the blind spot area, or the system is off/faulty (some models will display a specific status icon when faulty).
Technical coordination relationship
The warning light module needs to be coordinated with the following components to function:
Sensor: Millimeter-wave radar on both sides of the rear bumper or rearview mirror camera, responsible for collecting blind area data.
Control unit (ECU): Processes sensor data, determines whether to trigger an alarm command and sends it to the warning light.
Sound and light linkage: High-end models will synchronize the warning light with sound alarm and steering wheel vibration to form multiple sensory reminders.
In short, the blind spot warning light module is the "small light" on the rearview mirror, it is the last link in the system that directly acts on the driver's line of sight after the system senses danger.
The automotive blind spot warning light module is the visual warning terminal of the blind spot monitoring system (BSM/BLIS), its core function is to provide potential collision risk warnings in the side rear blind area when the driver changes lanes or turns, to compensate for the visual blind spot of the rearview mirror.
Core function logic
Static warning: When there is a vehicle in the side rear area (usually covering 8 meters behind and 3 meters on the side) of the vehicle, the warning light on the external rearview mirror is constantly on, indicating that there is an obstacle in this area.
Dynamic strong alarm: If the driver turns on the turn signal to change lanes and the system detects a vehicle in the blind area, the warning light will change from constantly on to rapid flashing, and some models will trigger a buzzer sound, forming "visual + auditory" dual interception to prevent dangerous lane changes.
Status indication: If the warning light is constantly on with a yellow system icon (not flashing), it usually indicates that the system is not activated or the sensor is faulty, and it needs to be checked.
Key application scenarios
Adverse weather assistance: Provides objective data reminders in adverse weather conditions such as rain, fog, night, or strong light interference that cause blurred rearview mirror vision.
Door opening collision prevention: Some advanced systems monitor the side after parking and ignition is turned off, if there is a non-motorcycle vehicle approaching quickly from behind, the warning light can remind the driver to avoid "door strike".
Highway lane change safety: Precisely identifies approaching vehicles in high-speed driving, reducing accidents caused by judgment errors due to misjudgment.
This component usually receives data from millimeter-wave radar sensors, which are processed by the control unit to drive the high-brightness LED to light up within the rearview mirror, and is a key configuration for improving active safety during driving.
