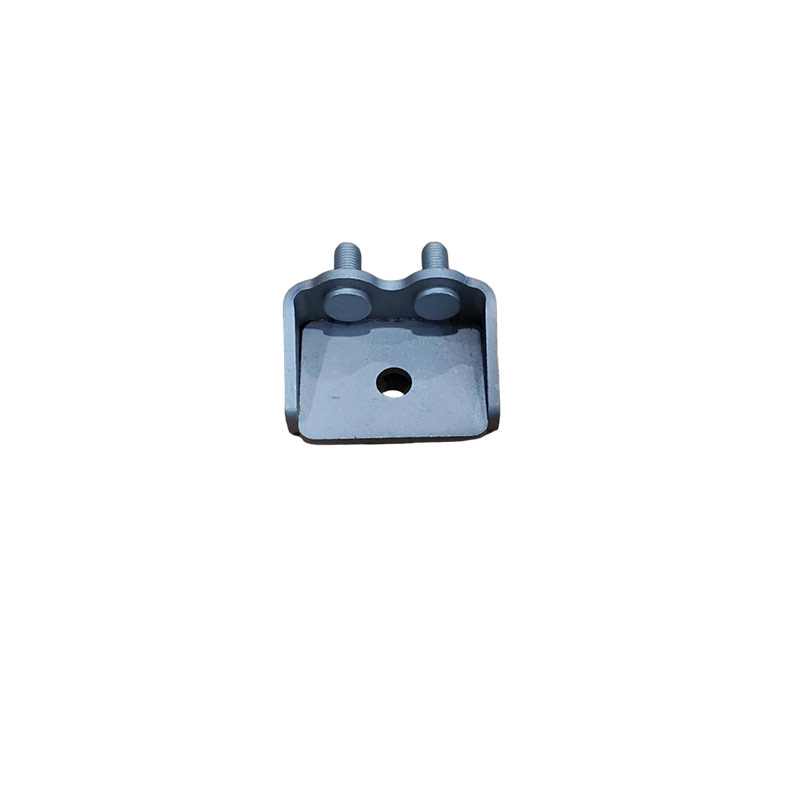

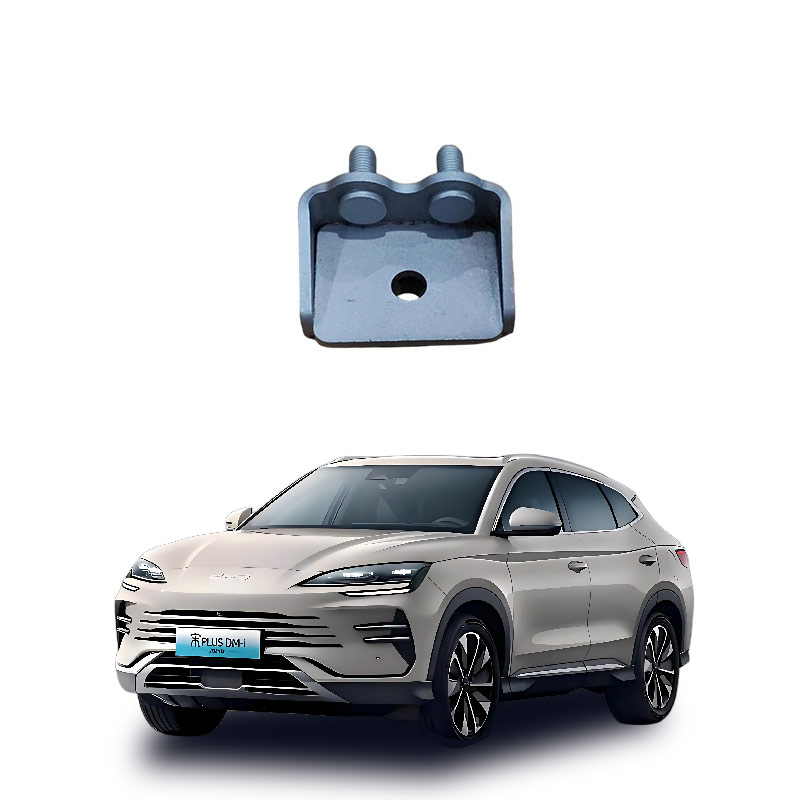

What is the rear stabilizer bar puller bracket assembly of the car?
The rear stabilizer bar link bracket assembly is a crucial transmission component that connects the rear lateral stabilizer bar (anti-roll bar) to the rear suspension arm. It is typically composed of a link body, two ball joints at both ends, and a fixed bracket/sleeve, commonly known as the "small connecting rod" or "hanger".
Core Definition and Structure
Essentially, it is the "joint" of the stabilizer bar system, responsible for transferring the torsional force of the stabilizer bar to the wheel suspension instead of directly bearing the vehicle weight.
Composition: Generally consists of a metal link, two multi-directional rotating ball pins (some models include rubber sleeves or fixed brackets), used to compensate for the angle changes during suspension bounce.
Position: Vertically or inclinedly installed at the rear of the vehicle, one end is clamped to the end of the U-shaped stabilizer bar, and the other end is connected to the rear lower control arm or shock absorber body.
Main Function
Torque Transmission: When the vehicle turns or one side wheel is under pressure, it converts the unequal deformation of the left and right suspensions into the torsional deformation of the stabilizer bar, generating reverse elasticity.
Side-Impact Suppression: By rigidly connecting, it limits excessive lateral tilting of the vehicle body, enhancing cornering stability and tire grip.
Decoupling Vibration: The ball joint structure allows the suspension to freely rotate up and down, avoiding interference and abnormal noise from the stabilizer bar in non-side-tilt conditions.
Failure Manifestations and Notes
Common Failures: Wear and looseness of the ball joint or cracking of the sleeve, resulting in a "clunking" noise when passing over potholes and a decrease in rear-end stability during cornering.
Maintenance Tips: This component is a wear-prone part. When replacing it, attention should be paid to torque specifications, and it is usually recommended to replace them in pairs to maintain force balance.
In summary, it is an indispensable "transmission short rod" in the rear suspension anti-roll system. Even if it is broken, it does not affect normal straight driving, but it will significantly reduce handling safety and produce abnormal noises.
The rear stabilizer bar link (commonly known as "small connecting rod" or "plum blossom") bracket assembly's core function is to reliably connect the lateral stabilizer bar to the suspension shock absorber or control arm, transmitting torsional force to suppress vehicle body side倾. Core function
Reduce vehicle body roll: When the vehicle turns or encounters single-side bumps, the left and right suspensions vibrate inconsistently. This component pulls the stabilizer bar to twist, utilizing the elastic force of the bar to generate reverse resistance, significantly reducing the lateral inclination angle of the vehicle body.
Maintain suspension independence: It only works when the movements of the two wheels are not synchronized; if the wheels move synchronously up and down (such as when driving on a flat road), the component moves with the wheels but does not produce rigid pulling, thus balancing control stability and driving comfort.
Torque transmission hub: As the "joint" between the stabilizer bar and the vehicle suspension, it precisely transmits the torsional elastic force of the stabilizer bar to the wheel end, preventing control blur or abnormal noises caused by loose connections.
Component composition and failure impact
This component is usually composed of two end ball joints, a middle connecting rod, and a fixed bracket/sleeve. If the bracket is loose, the sleeve is aged, or the ball joint is worn:
During cornering, the rear stability of the vehicle decreases, causing a "sway" sensation or increased side roll;
When driving over uneven roads, the chassis is prone to emit a "clicking" metal impact sound;
Long-term damage may lead to the failure of the stabilizer bar, increasing the risk of abnormal tire wear.
In short, it is the "transmission shaft" of the rear suspension anti-roll system, ensuring that the stabilizer bar can intervene in work in real time, guaranteeing safe high-speed cornering and smooth riding.
