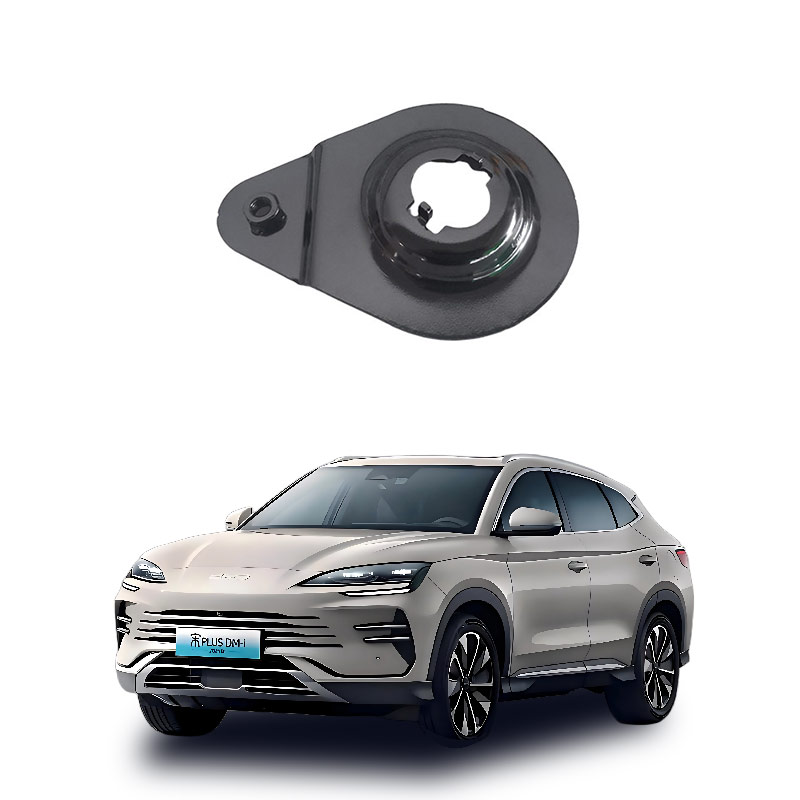

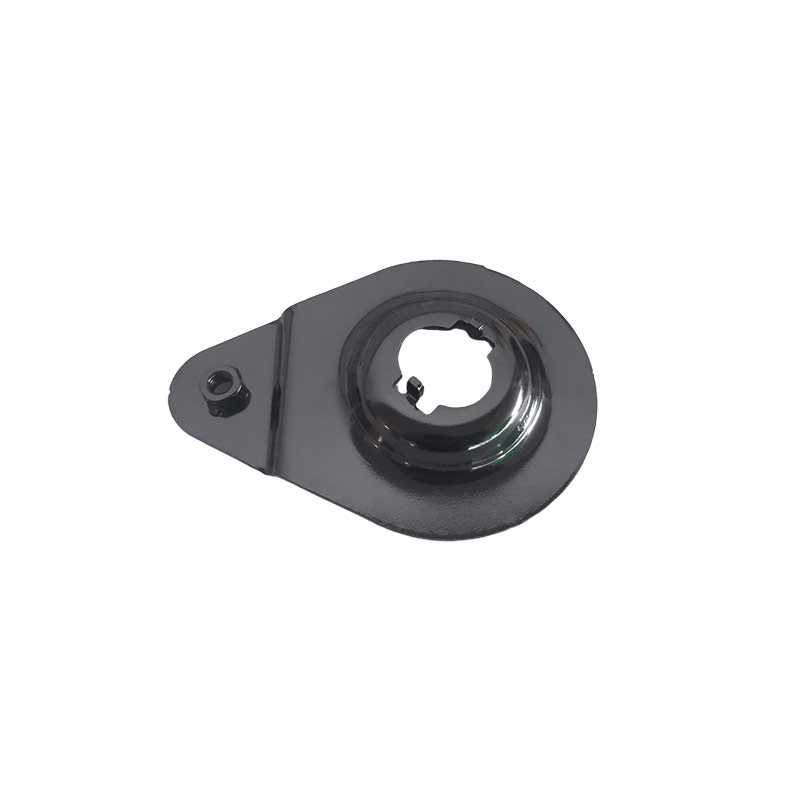

What is the front mounting bracket assembly installed on the front sub-frame of the car?
The front mounting bracket assembly of the car's front subframe is a key structural component that connects the front subframe to the vehicle's longitudinal beam or front fender. It mainly serves the functions of positioning, fixation, and force transmission.
Core Definition and Function
Structural Positioning: It is part of the front subframe assembly or an independent connecting piece, used to precisely fix the front subframe, which carries the engine, transmission, and front suspension, on the front frame of the vehicle.
Mechanical Transmission: It is responsible for smoothly transferring the road impact, braking torque, and collision energy from the subframe to the main structure of the vehicle body, avoiding stress concentration that causes deformation of the vehicle body.
Damping and Noise Reduction: It is usually used in conjunction with hydraulic bushings or rubber bushings to isolate the transmission of engine vibrations and road noise to the cockpit, improving comfort.
Common Components and Locations
Installation Form: It is mostly formed by high-strength steel stamping and connected to the inner side of the vehicle's front longitudinal beam or the front fender crossbeam by high-strength bolts. Some models adopt a welded integrated structure.
Associated Components: It often works in conjunction with the front longitudinal beam, energy absorption box, and front suspension tower top, being an important node in the path of force transmission in the front part of the collision.
Fault Impact: If this bracket cracks or the bushings age, it will cause inaccurate front wheel alignment parameters (such as tire wear), abnormal driving noise, steering wheel shaking, and even affect the collision safety. Notes for Attention
For different vehicle models (such as those with monocoque or non-monocoque body structures), the name given to this component may vary slightly. During maintenance, it is necessary to strictly follow the original factory torque standards for tightening, and check if the bushings are aged or broken.
The front sub-frame mounting bracket assembly (often referred to as the front sub-frame mounting point or the front suspension bracket) is the core component that connects the sub-frame to the body longitudinal beam, playing a crucial role in positioning, force transmission, and vibration isolation. Core function
Structural connection and positioning: Precisely fix the front subframe (which carries the engine, transmission, suspension, etc.) on the front longitudinal beam of the vehicle to ensure the geometric position of the powertrain and suspension system is stable and prevent displacement during driving.
Load transmission: During acceleration, braking, and cornering, the subframe transmits longitudinal forces (such as driving force and braking force) and lateral forces efficiently to the vehicle frame, ensuring handling stability.
Vibration isolation: The internal structure of the bracket usually integrates rubber sleeves or hydraulic buffering systems, which can filter engine vibrations and road impacts, reducing noise and vibration entering the driver's cabin and improving comfort.
Collision protection: In a frontal collision, this component serves as part of the force transmission path, assisting in distributing the impact force to the main structure of the vehicle body to avoid local stress concentration leading to severe deformation.
Common failure impacts:
If this component ages, the rubber sleeve cracks or the bolts loosen, it may cause abnormal engine noise, steering shake, and decreased steering accuracy, and even lead to the displacement of the subframe, affecting driving safety. It is recommended to regularly check the condition of the rubber parts and replace them in time if damaged.
Faults in the front subframe mounting bracket (commonly referred to as the engine torsion bracket or the connection bracket of the front suspension subframe) typically result in severe shaking, abnormal noise, and decreased handling stability caused by the displacement of the powertrain, and require immediate repair to prevent geometric misalignment of the suspension.
Typical failure symptoms:
Abnormal shaking and fishtailing: During idling, starting, reversing, or driving at low gears with high torque, the vehicle exhibits a distinct "shaking" or "shuddering" sensation; at high speeds, the steering transmits strong vibrations.
Specific conditions of abnormal noise: When turning at the wheel, passing over减速带， or driving on bumpy roads， the front part emits "clunking" or "bang" metal impact sounds or rubber friction sounds.
Control performance decline： The vehicle's driving trajectory becomes unstable， the side-slip increases during emergency braking or cornering， and may be accompanied by abnormal tire wear. Handling suggestions
Stop immediately for inspection: If the above symptoms occur, avoid intense driving to prevent the complete fracture of the bracket, which could cause the engine to shift or the suspension to lose control.
Professional diagnosis and confirmation: Lift the vehicle and check if the rubber of the bracket is damaged, if the metal arm is deformed, and if the bolt torque meets the standard; distinguish whether it is a simple bracket failure or a combined issue with the shock absorber top rubber, ball joint damage.
Replace instead of repair: This component is a safety-critical part. Welding repair is strictly prohibited. It must be replaced in pairs or according to the manufacturer's requirements with original/quality aftermarket parts, and tightened according to the specified torque.
Four-wheel alignment calibration: If the position of the sub-frame changes after replacement, a new four-wheel alignment must be performed to ensure normal steering and suspension parameters.
