What is the function of the sealing strip at the front door of a car?
The front door sealant is an elastic sealing component filled between the front door and the vehicle body frame. It is the core part of the front door sealing system. Mainstream products are typically made of highly weather-resistant EPDM rubber. The usage rate of this component in family cars exceeds 90%.
Core functions and effects
Waterproof and dustproof: It completely fills the gaps between the door and the vehicle body, blocking the intrusion of rain and dust through these gaps, preventing the interior from getting damp and moldy, and the metal components inside the door from rusting. The protection level can reach IPX6 waterproof and IP6X dustproof standards.
Sound insulation and noise reduction: As an important part of the vehicle's NVH system, it effectively blocks high-frequency wind noise and road noise from entering the vehicle, significantly improving the interior's quietness. At the same time, it avoids air leakage in the door during winter, ensuring the efficiency of the air conditioning's cooling and heating.
Buffer and shock absorption: When opening or closing the door, it absorbs the collision impact force between the door and the vehicle body, eliminating the "clunking" sound from hard metal collisions, making the closing feel more substantial. At the same time, it cancels out the vibrations and friction between the door and the vehicle body during driving, avoiding fine noise generation.
Auxiliary heat insulation and temperature isolation: It enhances the vehicle's airtightness, reducing heat exchange between the interior and the outside, slightly improving the efficiency of the air conditioning system, and reducing the energy consumption of the air conditioning system.
Daily maintenance tips
Every week, use a soft cloth to wipe the dust off the surface of the sealant to prevent sand and dust from entering the gaps and accelerating wear and aging.
Once a month, apply a special rubber maintenance agent to prevent the sealant from cracking, shrinking, or deforming after long-term use. Under normal maintenance, the service life can reach 8-15 years.
After the rainy season, check if there is water accumulation in the groove of the sealant to avoid long-term water accumulation causing rust inside the door.
Most of the regular front door sealants do not require removing the door panel. Only for a few special positions, the sealant may need to be removed from the interior panel. Specific situations will be explained:
Scenarios where no door panel removal is required

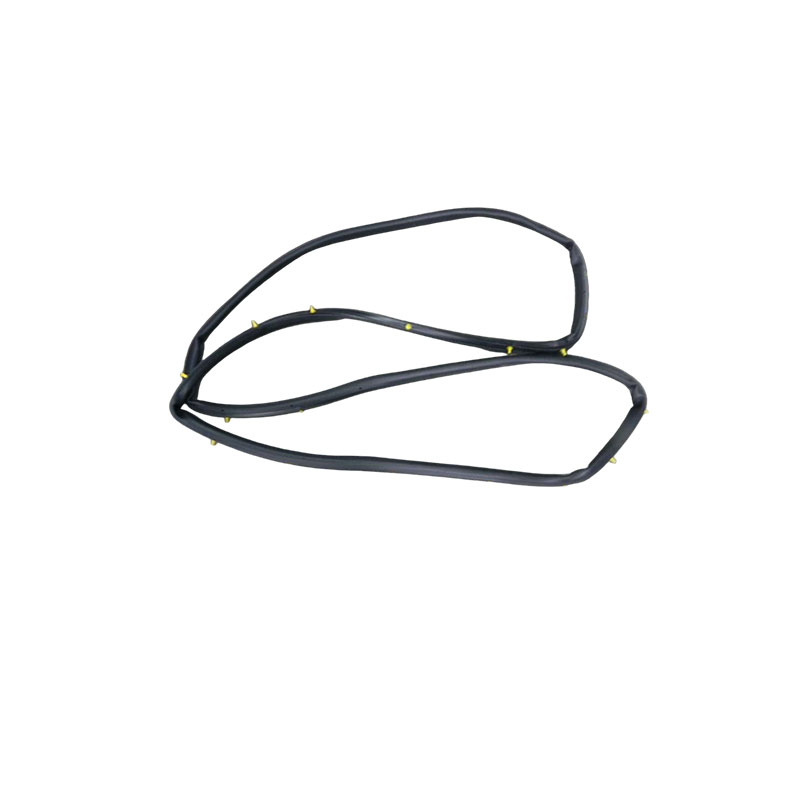

Main door frame sealant: This is the large ring sealant installed around the vehicle body frame. 99% of family cars directly use plastic snap fasteners to embed it in the metal card slots. With bare hands, you can directly pull off the old sealant, align it with the slot, and press it in place. No tools are needed, and it does not touch the interior panel of the door.
Outer water cut sealant: This is the pressure strip on the outside of the glass. For mainstream models like Tesla Model 3, simply lower the glass completely, use a plastic pry bar to lift it up, and you can directly remove the old strip. The new strip aligns with the position and presses down to secure it. No door panel removal is required.
Main door edge sealant: This is the sealant directly attached to the outer edge of the door panel. Follow the installation direction to pull out the old strip, press it in place, and it can be done in 10 minutes.
Only these situations require removing the door panel
Inner glass groove / guide rail sealant of the door: This is the inner sealant embedded when the glass is raised. For some models, the fixing screws of the guide rail are hidden inside the door panel. It is necessary to remove the interior panel to loosen the fixing part and remove the old sealant.
Sealant of some older models with a complete ring: A few older cars have a complete ring-shaped sealant. Some of the snap fasteners are partially hidden inside the door panel. It is necessary to remove the interior panel to completely remove the old sealant. Hard pulling may break the remaining snap fasteners.
Integrated sealant of some luxury models: Some high-end models integrate the sealant with the interior sound insulation layer and wire harness protection board. It is not possible to completely separate the old sealant without removing the door panel. Forceful pulling may break the internal wires.
Tips for avoiding pitfalls
Before replacement, confirm the installation position of the sealant: If it is a rubber strip attached to the vehicle body frame, 100% no door panel removal is required; if it is a rubber strip embedded in the inner glass raising track, it is necessary to prepare the door panel latch in advance and make preparations for removing the interior panel.
