What is the complete assembly of the vehicle's main lock key?

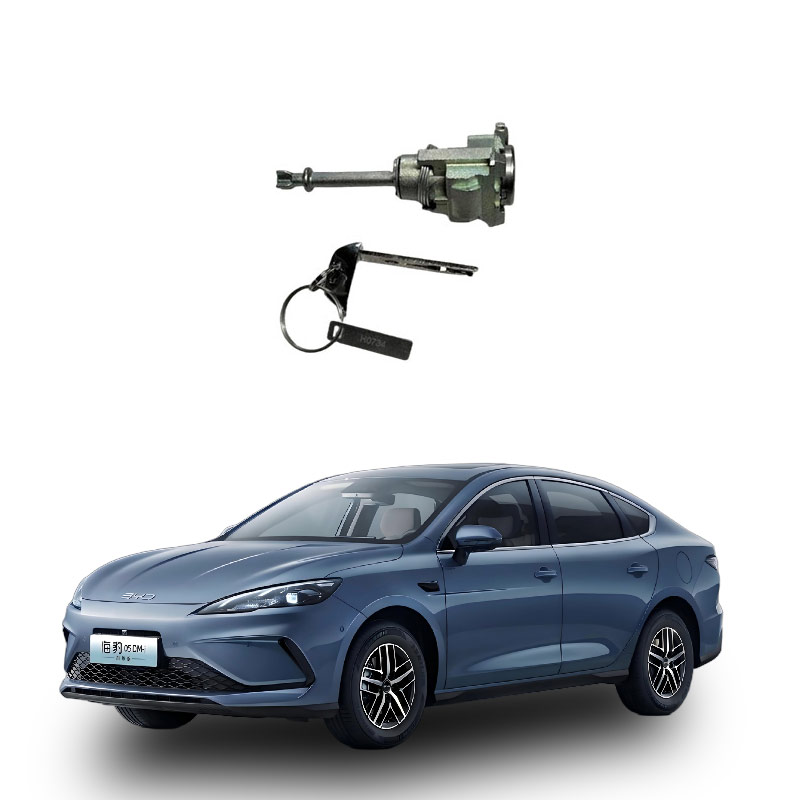

The vehicle whole-lock key assembly is also known as the vehicle-wide lock assembly. It is a complete modular kit consisting of all the vehicle locks and their corresponding keys, controlled by the same key. It enables "one-key opening" for all the locks in the vehicle and is the core physical hardware assembly for vehicle security and the vehicle door control system.
Core Components

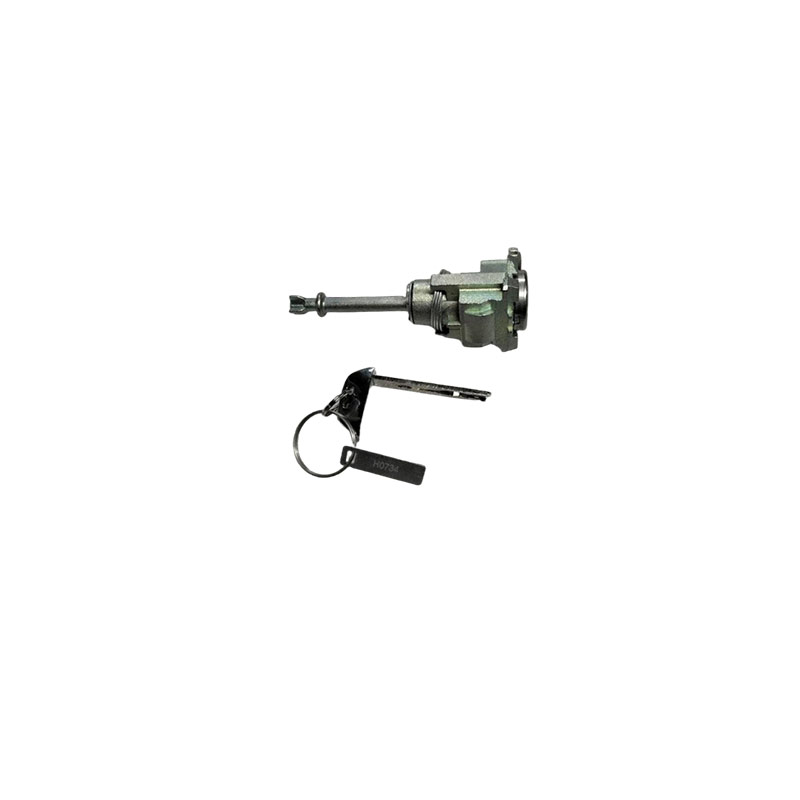

Multi-position Lock Core Assembly: Includes the left front door lock core, right front door lock core, trunk lock core, ignition switch lock core. Some models also integrate the fuel tank cover lock core. All the lock cores have the same internal pins, and with just one key, all the locks can be opened.
Matching Exclusive Key Set: Standardly comes with 2-3 mechanical keys that perfectly match the tooth shape. For some models with anti-theft chips, the keys also include an encrypted chip integrated with the original vehicle's anti-theft system. Unauthorized keys cannot start the engine.
Linked Installation Accessories: Includes all the lock cores' fixing screws, positioning clips, transition wiring harnesses. Some high-end models also come with a dedicated password strip required for anti-theft matching, facilitating the subsequent pairing with the vehicle's BCM anti-theft module.
Core Functionality
Unified Lock Control Experience: With just one key, all operations such as opening the door, starting the engine, and opening the trunk can be completed. There is no need to carry multiple different keys, significantly enhancing usability.
Vehicle-wide Anti-theft Protection: The arrangement of the lock cores' pins and the key's tooth shape are the only exclusive code. The difficulty of brute-force is much higher than that of a single independent lock core. Combined with the anti-theft chip binding， even if the key tooth shape is replicated， the vehicle cannot be started. This significantly reduces the risk of vehicle theft from a physical perspective.
One-stop Fault Resolution： When all the keys are lost or the lock cores are damaged by brute force， the entire assembly can be replaced. This completely eliminates the safety where old keys can still open the vehicle doors， and there is no need to replace individual scattered lock cores one by one.
Main Type Differences
Pure Mechanical Model： Typically used for older low-end models without anti-theft chips. It relies solely on the key tooth shape to match the lock cores' pins. After replacement， it can be installed directly without additional anti-theft system matching.
Anti-theft Chip Model： This is the current mainstream solution for family cars. The key chip and the vehicle's engine anti-theft system are deeply integrated. After replacement， it must be paired using a dedicated diagnostic instrument and the original vehicle's anti-theft password. Otherwise， the vehicle cannot be started.
Replacement Precautions
After replacement， it is necessary to complete the anti-theft system matching. Ensure that all the doors， trunks， and ignition switches can be opened with the new keys. Avoid problems where some lock cores cannot be opened.
It is recommended to choose the original factory assembly that is fully compatible with the original vehicle's anti-theft protocol. The compatibility of aftermarket parts' anti-theft chips is poor， and they are prone to signal loss and vehicle non-starting faults in the future.
Replacement Process
The entire process can be completed following the standardized procedure of "preparation → disassembly by position → anti-theft matching → acceptance"， covering all common operation steps for family cars and avoiding common disassembly pitfalls.
Preparation Work
Tool List： Small Allen wrench， T20/T30 spline screwdriver， plastic pry bar， needle-nose pliers， a new vehicle lock core key assembly for the corresponding model， and for models with anti-theft chips， an original vehicle anti-theft password strip must be prepared.
Safety Precautions： The vehicle must be completely turned off， the negative battery terminal disconnected to avoid short circuits and burning the vehicle's BCM anti-theft module. The steering wheel must be returned to the center and locked.
Positional Disassembly Steps
Door Lock Core Replacement
Carefully pry off the rubber decorative cover beside the car door handle， exposing the hexagonal fixing screws and loosening them. Grasp the door handle lock core cover and gently pull it out to remove the old door lock core. Insert the new lock core into the slot and reverse-tighten the screws to reset the rubber cover. The left and right front door operations are exactly the same.
Trunk Lock Core Replacement
Pry open the small cover plate of the trunk interior panel at the corresponding position， remove the lock core fixing screws， disconnect the linkage lever， and remove the old lock core； Insert the new lock core into the positioning hole and align it with the positioning hole in the rear compartment. After securing the pull rod, tighten the screws to ensure smooth linkage between the lock core and the rear compartment opening mechanism.
Replacement of ignition lock core
Remove the upper and lower plastic guards below the steering wheel, insert the new key and turn it to the ACC position. Locate the positioning hole on the side of the ignition lock core and press the internal ball with a fine needle. Rotate it clockwise by 90 degrees to directly remove the old lock core; insert the new lock core into the guide slot and confirm that the key rotation is smooth before reinstalling the guard plate.
Anti-theft system matching (required for vehicles with chips)
Reconnect the negative terminal of the battery, connect the dedicated vehicle diagnostic instrument to the vehicle's OBD interface, input the original vehicle's anti-theft password, and enter the anti-theft matching interface.
Insert each new key one by one, follow the prompts to complete the pairing of the chip with the vehicle's BCM and engine ECU, and confirm that all keys can be recognized by the system.
Mechanical anti-theft models without anti-theft system can directly skip this step and be used after installation.
Final full-dimensional acceptance
Test the locking/unlocking actions of all doors and the rear compartment with the new key, confirm that the entire process is smooth without any jamming, and that all lock cores can be opened in one go.
Insert the key to test all gears of ignition (LOCK → ACC → ON → START), confirm that the steering wheel unlocks normally, the engine starts smoothly, and there is no anti-theft locking prompt.
Test the remote lock and unlock functions, confirm that the four doors are linked normally, and the instrument panel does not have abnormal false alarms of "door not closed".
Key avoidance pitfalls
When disassembling and assembling the ignition lock core, insert the key to the designated angle. Do not use violent force to pry it open. Otherwise, it will directly damage the steering lock mechanism, causing the steering wheel to be completely locked and unable to turn.
For vehicles with lost anti-theft passwords, do not operate by yourself. Contact the 4S store to retrieve the original factory anti-theft data to avoid incorrect operation that locks the anti-theft system and makes the vehicle completely unable to start.
