What is the function of the lever at the front door of the car?

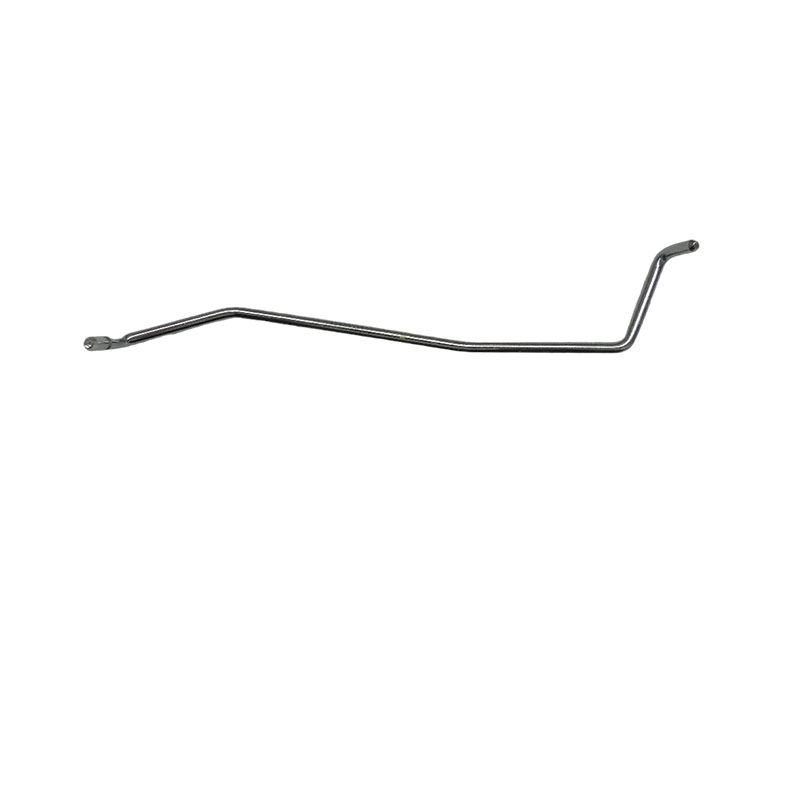

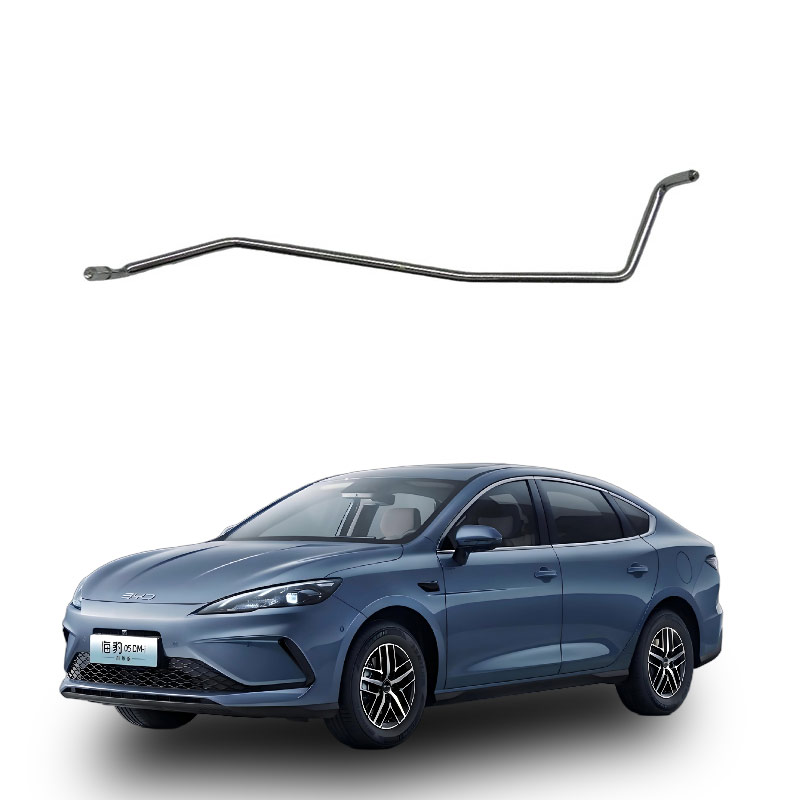

The pull rod at the front door is a dedicated mechanical transmission component located inside the front door, connecting the door handle outside with the front door lock assembly. It is the core force transmission component for the external door opening action and is completely independent of the steering system's pull rod structure.
Core structure composition
Main rod body: Mostly made of nickel-plated cold-drawn iron wire or high-strength alloy steel, it has strong rigidity and is unlikely to deform after bending. The surface is treated with anti-rust coating, and it is not prone to rust and breakage even in the humid environment of the door for a long time.
End connection structure: Both ends are equipped with wear-resistant plastic snap fasteners. One end is inserted into the slot of the outer handle， and the other end is inserted into the unlock trigger mechanism of the front door lock body. The biting accuracy deviation should not exceed 0.3mm； otherwise， there will be a door opening offset.
Auxiliary positioning component： The door panel is equipped with a dedicated limit stopper. The pull rod is firmly fixed on the preset trajectory to avoid bumping and shaking during driving and to prevent scraping and damage to other internal components inside the door.
Core function and effect
Pure mechanical force transmission： When pulling the outer handle， the pull rod directly transmits the pulling force precisely to the unlock mechanism of the front door lock assembly， triggering the lock tongue to separate， completing the door opening action. The entire process does not rely on the electronic control system， and the door can be opened normally even when the vehicle is powered off.
Door opening feel calibration： By adjusting the installation length of the pull rod， the pulling stroke of the outer handle can be precisely controlled， ensuring uniform damping during door opening， without problems such as excessive empty stroke of the handle or door opening offset.
Safety redundancy guarantee： It fully complies with the "Automobile Door Handle Safety Technical Requirements" national standard issued in 2026. As a pure mechanical release channel， in the event of vehicle collision and power failure， or complete failure of the electrical system， it can still open the door through physical linkage， ensuring the smooth escape route for passengers and the external rescue channel.
Common high-frequency faults
The plastic snap fasteners at both ends age and crack over time， causing the pull rod to disengage， and the outer handle to rotate in a vacuum when pulled. The door cannot be fully opened.
After the coating on the rod body is worn off， it rusts and gets stuck. When pulling the outer handle， the resistance is extremely high， and the door opening feels heavy， and it may even be impossible to pull.
The limit stopper for installation falls off， causing the pull rod to shift inside the door， scraping against the glass lift mechanism or wiring harness， causing abnormal noise or interfering with the operation of other components.
It takes about 15-20 minutes to replace the front outer pull rod by oneself. No complex tools are needed. Follow the steps below to complete the replacement smoothly， avoiding the pitfalls of damaging the interior panel or tearing other components.
Prepare tools in advance
Basic tools： plastic pry bar， T20/T30 flower-shaped screwdriver， needle-nose pliers， new adapter pull rod for the corresponding vehicle model
Auxiliary consumables： a small amount of silicone-based lubricant， spare door panel snap fasteners to prevent aging and fracture of the old fasteners
Step-by-step replacement operation
Preparatory work： Fully raise the front door glass to the top to avoid glass scratches during operation； disconnect the negative terminal of the vehicle battery to prevent accidental contact with the central lock and burnout of the motor circuit.
Remove door trim panel： Use a plastic pry bar to slowly pry along the edge gap of the door panel， loosen all snap fasteners one by one， carefully remove the interior panel， and be careful not to forcefully tear the internal wiring plug.
Expose operation space： Tear off the butyl waterproof sealing film at the corresponding position inside the door， move gently to avoid tearing， and expose the installation area of the pull rod between the outer handle and the lock body.
Remove old pull rod： Gently pry open the plastic fixed snap fasteners at both ends with needle-nose pliers. First， remove the end of the pull rod from the slot of the outer handle， then remove the other end from the unlock trigger mechanism slot of the lock body. Do not forcefully pull to prevent the snap seat from breaking.
Install new pull rod： First， compare the length and curvature of the new and old pull rods to be completely consistent. Then， insert one end of the new pull rod into the lock body slot， and align the other end with the slot of the outer handle. Confirm that the snap fasteners at both ends are fully engaged and have no looseness when shaken.
Fix and reset： Insert the new pull rod into the limit positioning snap stopper on the door panel to avoid shaking and abnormal noise during driving.
Spray a small amount of silicon-based lubricant at the sliding contact position of the lever to ensure smooth pulling without sticking.
Key steps for completion and acceptance
Don't rush to reinstall the trim panel. Pull the outer handle repeatedly for more than 10 times to confirm that the door opening travel is smooth and there are no idle or missing positions. Ensure that the locking and unlocking actions are completely synchronized.
Test that all internal handle functions, remote locking, and unlocking functions are normal, and no sticking or abnormal noises occur.
After confirming that all functions are correct, reapply the waterproof film, align the door panel snap fasteners and press them back onto the interior panel, and reinstall all screws and decorative covers.
Precautions for avoiding defects
Do not use metal screwdrivers to forcefully pry the snap fasteners. Once the plastic snap fasteners of the door panel break, subsequent bumps and vibrations will cause continuous abnormal noises. It is recommended to prepare replacement snap fasteners in advance.
If the door opening resistance significantly increases after installing the new lever, immediately check if the snap fasteners at both ends are misaligned. Do not forcefully pull the outer handle; avoid re-tearing the new lever.
Do not use ordinary engine oil to lubricate the lever. Long-term use will be covered with dust, which will further aggravate sticking. It is necessary to use silicon-based lubricant or special plastic lubricating grease.
