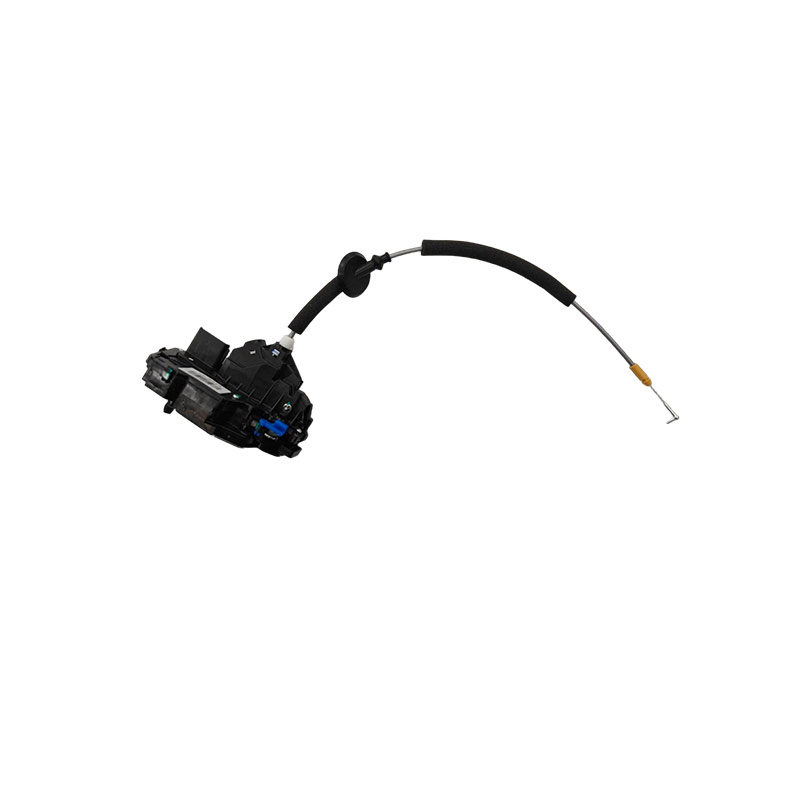

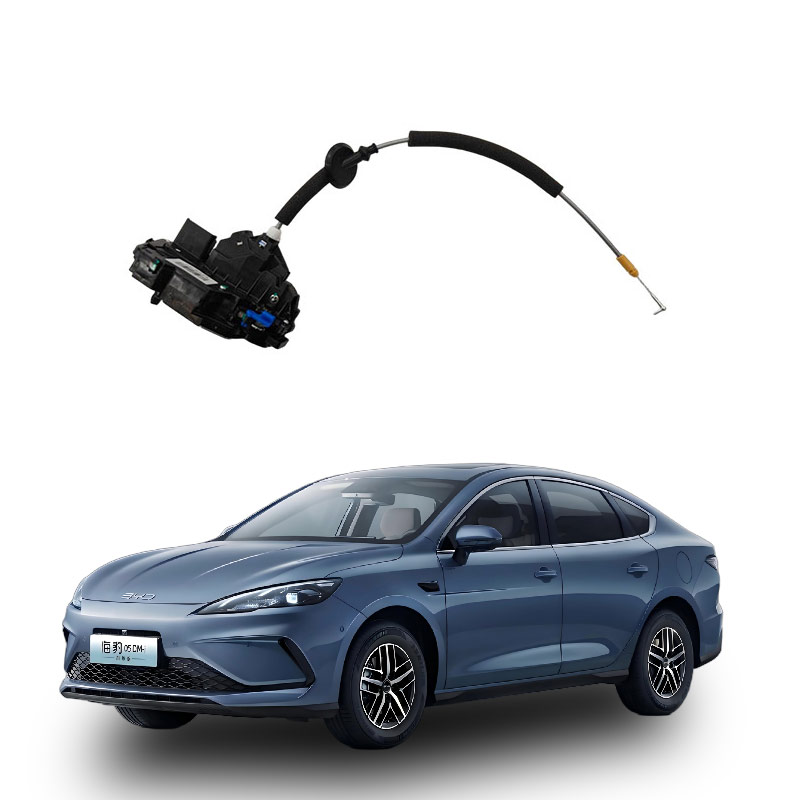

What is the front door lock assembly of a car?
The front door lock assembly is a complete modular core unit that integrates the front door lock body, drive motor, transmission mechanism, and status detection switch. It is the core executive component of the door control system for the front door, and is not a single lock core part.
Core structure composition
Mechanical lock body part: It includes the large lock tongue, small lock tongue, lock pin meshing mechanism, large support, small support, etc. The core mechanical structure can achieve two positions: full locking and semi-locking, ensuring that the door will not accidentally pop open after closing.
Power execution unit: Mainly divided into two types: DC motor type and electromagnetic coil type. It realizes forward and reverse rotation by changing the current direction, and drives the transmission gear to push the lock rod to complete the locking/unlocking action. It has low power consumption and fast response speed.
Electrical control feedback component: It is equipped with multiple microswitches for position feedback, which can promptly send the current lock/unlock status of the door to the vehicle body BCM module, and synchronously display the door opening/closing prompt on the instrument panel.
Emergency and linkage structure: It integrates a mechanical emergency unlocking channel. Even when the power is off, the door can be unlocked by pulling the inner handle with the vehicle key. Some high-end models also integrate an anti-theft linkage module, which is bound to the entire anti-theft system to prevent illegal violent door pilling.
Core functional characteristics
Central control linkage control: When the driver operates the front door lock, the front door lock assembly can simultaneously receive the command to complete locking/opening, and also supports remote control through a remote key.
Driving automatic lock activation: When the vehicle speed reaches the preset threshold (usually 10-20 km/h), the front door lock assembly will automatically trigger locking to prevent passengers from accidentally opening the door during driving and causing danger.
Real-time status feedback: When the door is not fully closed, the microswitch in the semi-lock position will immediately trigger the "door not closed" warning on the instrument panel, reminding the driver to confirm the door status.
Anti-theft safety linkage: After the vehicle enters the anti-theft setting state, the front door lock assembly will lock the internal transmission mechanism. Even if the external handle is forcibly pulled, the door cannot be opened. This significantly enhances the anti-theft capability.
Common type differences
DC motor type: This is the mainstream solution for current family cars. It has stable power output, long service life, and the power consumption is only about 1/3 of the electromagnetic type.
Electromagnetic coil type: It is mostly used in older low-end models. It relies on two different-direction coils to drive the armature to move the connecting rod, and the structure is simple but has a large instantaneous power consumption. Long-term use is prone to coil burnout faults.
After the front door lock assembly is damaged, prioritize the order of "first check minor faults → targeted repair → finally replace the assembly". 80% of common problems can be solved without directly replacing the entire lock block.
Preparations before repair
The vehicle must be completely turned off, and the negative terminal of the battery must be disconnected to avoid accidental movement of the lock mechanism during repair and injury to fingers, and to prevent short circuits and burning of the vehicle body BCM module.
Prepare a cross-head screwdriver, socket wrench, plastic pry bar, and interior latch opener. Prepare to replace the door panel latch in advance to avoid latch breakage during disassembly.
Use a cloth pad on the edge of the door to prevent scratching the paint and interior surface when prying the decorative panel.
Key steps for acceptance after repair
Do not rush to reinstall the door panel. Test 10 times or more repeatedly: remote lock/unlock, pulling the inner handle to open, pulling the outer handle to open, confirm that all actions are without jamming or abnormal noise.
Open and close the door 3-5 times to confirm that the door can be fully closed and will not have fine vibration and abnormal noise during driving bumps.
Check the instrument after powering on to confirm that the "door not closed" warning light goes off normally after the door is fully closed, and the central lock can link the other doors to operate normally.
Conditions where the entire assembly must be replaced directly
The lock body shell is cracked by impact, and the internal gear set is completely worn out, and the mechanical structure is completely damaged.
The motor coil is burned out, the circuit board is burned, and a strong burnt smell is detected. The cost of repairing the motor alone is close to half of the new assembly.
The lock cylinder was forcibly pried open and deformed, making it impossible to insert the key at all. The anti-theft linkage module was damaged, preventing it from matching the original vehicle's anti-theft system.
