What is the glass raising and lowering device for the right front door of the car?

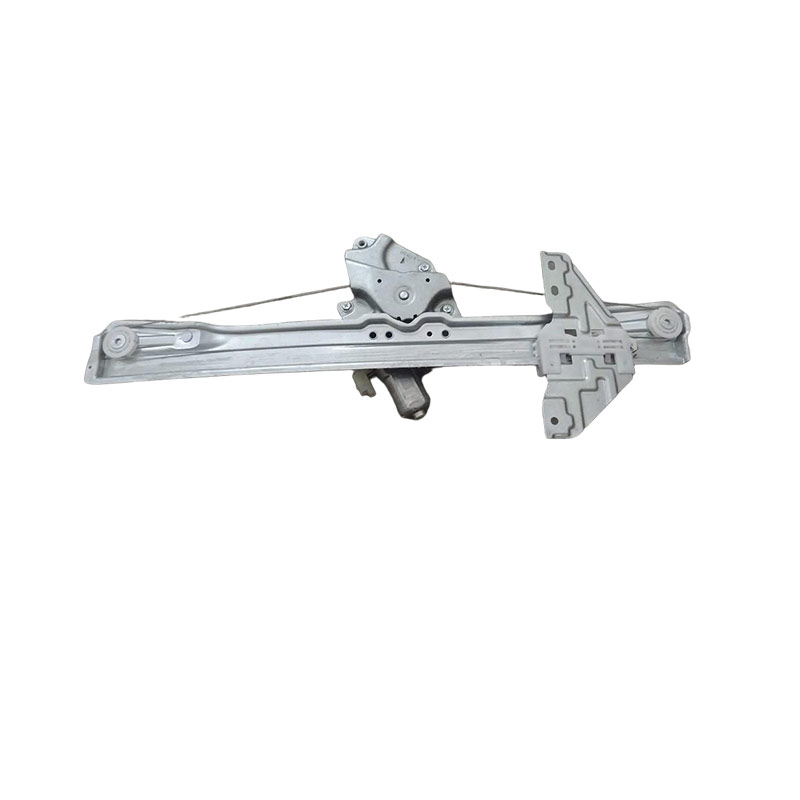

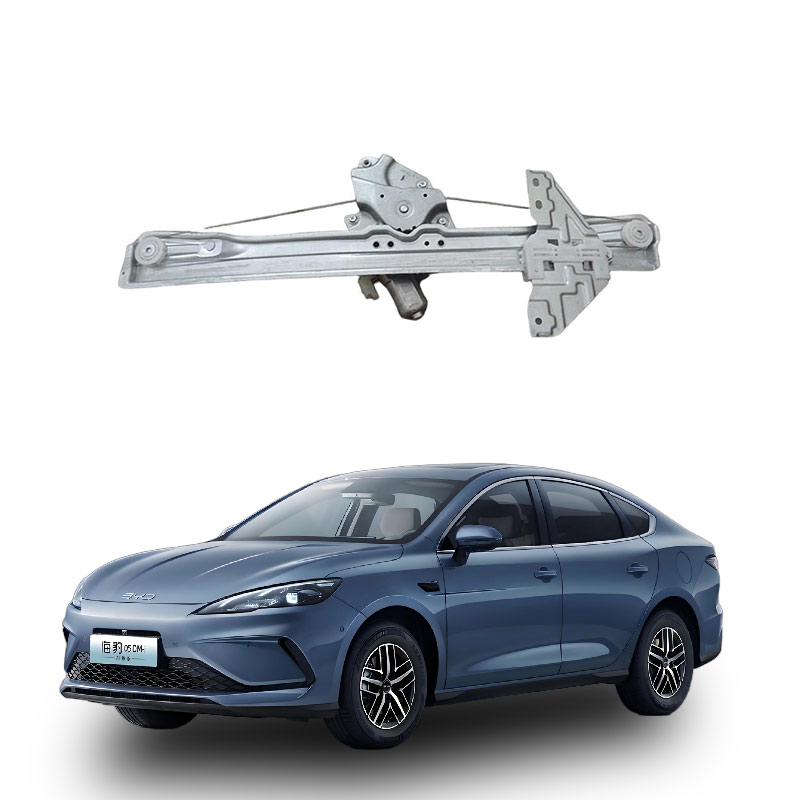

The right front door glass lift device of a car is an exclusive electromechanical assembly specifically installed inside the right front door of the vehicle, independently driving the right front side window glass to complete the lifting and lowering actions. It is not interchangeable with the left front door lift device and is the core component for electric or manual opening and closing of the right front window on the front passenger side.
Exclusive structural features
Independent adaptation design: Its motor interface, guide rail curvature, and bracket hole positions are all customized specifically for the internal cavity structure of the right front door, and are not compatible with the parts of the left front door and rear door lift devices. When choosing accessories, it is necessary to clearly mark "right front" to ensure a perfect match.
Mainstream structural types: Most family cars' right front doors will adopt the cross-arm type or rope wheel type structure. The cross-arm type provides a wide supporting width and strong bearing capacity, and can smoothly lift the larger right front side window glass; the rope wheel type is more compact and is suitable for small-sized cars with limited interior space of the vehicle door.
Dual control power supply logic: It simultaneously connects the main driver's control switch and the occupant's control switch on the right front door. The main driver can directly lock the operation authority of the right front window, avoiding accidental activation by children.
Exclusive functional characteristics
Most models' right front door lift devices are equipped with anti-clamping function. When the glass is ascending and encounters an obstacle, it will automatically stop and reverse to avoid clamping the hand of the right front seat passenger.
Some high-end models' right front door lift devices support one-button lift, lock car and automatically raise the window function. Through the vehicle's BCM module, precise travel control can be achieved without the need to continuously press the switch manually.
Common exclusive fault points
The right front door wiring is repeatedly opened and closed with the vehicle door, and is more prone to internal copper wire breakage than other positions, resulting in the right front window completely not responding and the main driver's control switch being unable to control it.
The right front door is frequently used to carry passengers, and the glass guide groove is more likely to accumulate dust and sand, resulting in a much higher probability of the right front window's lifting and lowering being sluggish and making abnormal sounds compared to other windows.
Common exclusive faults of the right front door glass lift device, in addition to the common problems of the universal lift device, also have many high-frequency faults specific to the right front door. They can be classified into the following categories:
Exclusive electronic control type faults
The right front window is completely unresponsive: The main driver's control switch and the right front sub-control switch cannot control it. 90% of the time, it is due to the long-term bending of the wiring inside the right front door due to repeated opening and closing, resulting in broken internal copper wires or the failure of the right front window's individual fuse.
The main driver can control the right front window, but the right front sub-control switch is completely malfunctioning: The fault point is concentrated on the sub-control switch on the right front door handle. The contact points are frequently pressed by passengers, causing oxidation and wear, and the contact becomes completely ineffective.
The motor overheats and temporarily stops running: The right front window is used frequently, and the motor triggers overheating protection due to long-term overload, stopping for about ten minutes to cool down before it can recover. Repeated occurrences indicate that the carbon brushes of the motor have been severely worn.
Mechanical operation type faults
The lifting process is completely stuck and the speed significantly slows down: The right front door is frequently used by passengers, and the glass guide groove is prone to accumulate dust and foreign objects, such as small cards, which greatly increases the resistance of the glass sliding.
When pressing the switch, you can hear the motor "buzzing" but the glass does not move: The transmission steel wire rope of the right front door lift device is long-term used and rusts and breaks, or the internal gear set is worn and disengaged, resulting in no power being transmitted to the glass support bracket.
The glass automatically descends or falls halfway: The anti-clamping function is mistakenly triggered, and the resistance in the guide groove is too large, causing the control module to mistakenly judge that an object has been clamped and activate the protection; or it may be that the motor power of the right front lift device is insufficient, and it cannot handle the additional load.
The glass lifts and lowers in an overall tilt, one side is high and the other is low: The fixing bolts of the right front door glass support are loose and shifted, or the single side guide rail is hit by external force and deformed and misaligned, causing the glass running trajectory to completely deviate.
The entire lifting process is accompanied by a "clicking" friction noise: The accumulation of dirt in the right front guide slot and lack of lubrication, or the dryness and lack of oil in the steel wire rope, cause continuous friction and produce abnormal sounds during operation. This is the most common abnormal sound fault of the right front door.
When passing through bumpy sections, the right front door glass emits a fine impact sound: The fixing screws of the right front lifting mechanism are loose, or small foreign objects brought in by passengers fall into the door trim panel, and collide with the glass during the bumping, producing a sound.
When the lifting reaches the upper or lower terminal, a "click" hard impact sound occurs: The limit buffer block of the right front lifting mechanism is aging and cracking, and the glass directly collides with the stop point. Long-term use will cause the edge of the glass to crack.
Functional failure-related faults
The one-key lifting function of the right front window fails: After the vehicle battery is disconnected, the right front window control module loses the travel memory. Most of the time, it can be restored through the reset operation of "lifting to the top for 3 seconds + lowering to the bottom for 3 seconds".
The sealing of the right front window glass is not tight after being lifted to the top: The installation position of the right front lifting mechanism's guide rail is offset. After the glass is lifted to the highest position, it cannot fully fit into the top sealing strip, and obvious wind noise occurs during high-speed driving.
