What is the car's front door glass lift mechanism?

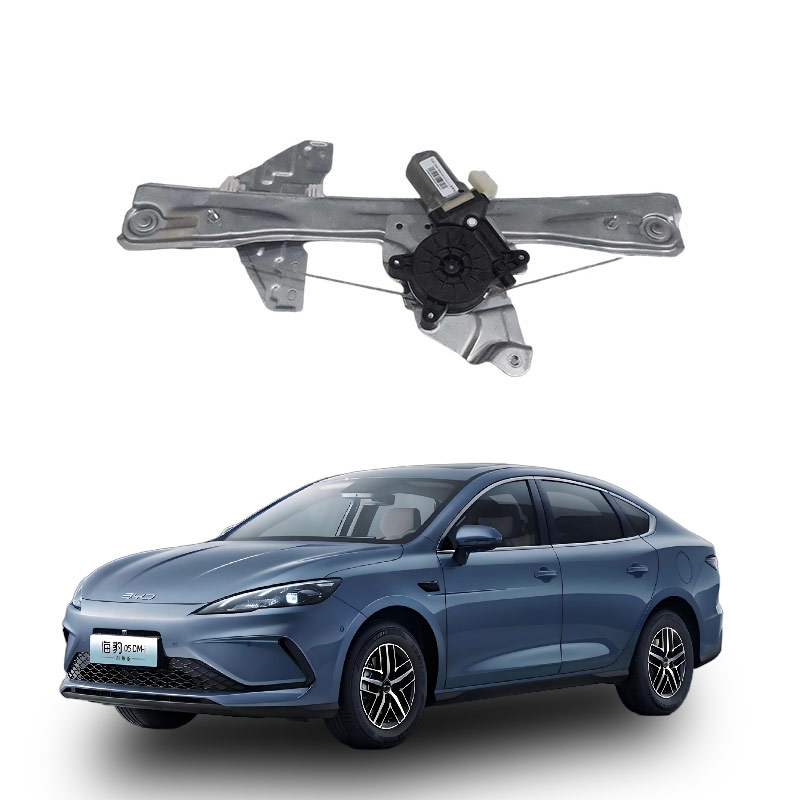

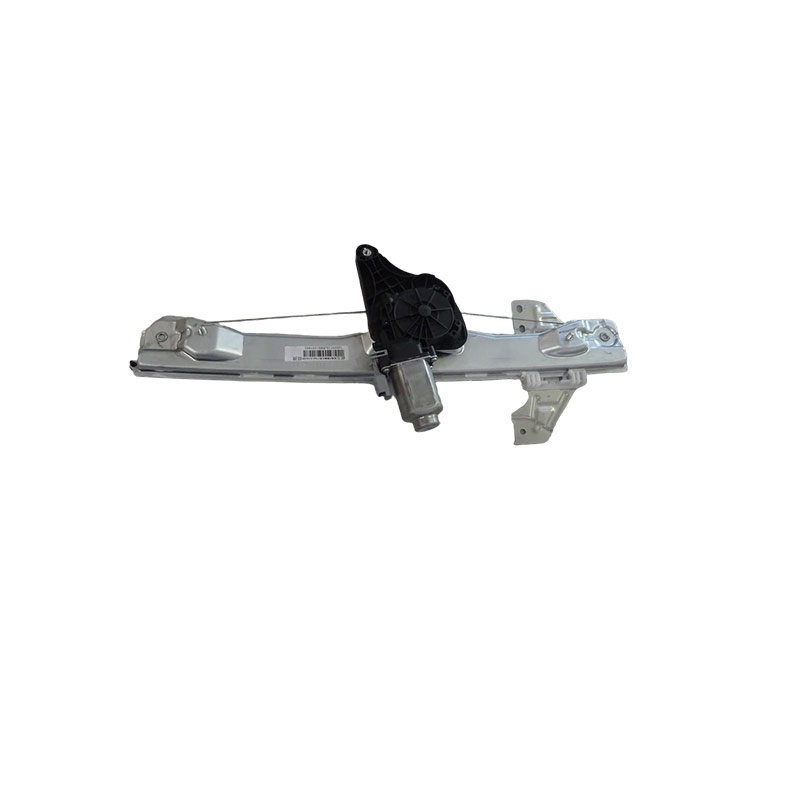

The car front door glass lift device - commonly referred to as the front door glass lift - is installed inside the front door and is the core actuating mechanism that specifically drives the front side window glass to move smoothly up and down. It is also the core hardware assembly of the electric window system.
Core structure composition
Power unit: Bidirectional DC motor + integrated worm gear reducer, which can convert the high-speed low-torque rotational motion of the motor into low-speed high-torque power output. Some models also come with a torque sensor to prevent clamping.
Transmission and guiding structure: Mainly divided into two types: cross-arm type (using cross-link arms to drive the glass support frame) and rope wheel type (using steel wire ropes to pull the sliding blocks). It is responsible for precisely constraining the running trajectory of the glass to avoid skewing and jamming during the lifting and lowering process.
Load-bearing and fixing components: Glass installation bracket, metal support guide rail, and internal fixed bracket of the door. It directly supports the bottom of the glass to ensure that the entire glass lifting and lowering process remains level.
Control and interaction components: Split control switch at the door handle + main driver's seat's main control switch. Some models also integrate one-button lifting, automatic window raising when locking the car.
Core working logic
After pressing the lifting and lowering switch, the current drives the motor to rotate forward/reverse. After the reducer amplifies the torque, it drives the glass support frame to move along the guide rail in a straight line, ultimately achieving the lifting or lowering of the front door glass. The worm gear structure has self-locking properties. After releasing the switch, the glass can stabilize at any opening position without falling down.
Common faults of the front door glass lifting and lowering device can be classified into the following major categories based on the fault manifestations and causes, covering all typical scenarios from minor noises to complete failure:
Complete no-action type faults
No response when pressing the switch: Most likely to be the fuse of the corresponding window blown, the internal wiring of the door is broken/closed, or the internal contacts of the lifting switch are oxidized and worn out, resulting in complete failure.
Can hear the motor "buzzing" but the glass does not move: The motor itself is operating normally. The core fault is that the transmission steel wire rope rusts and breaks, or the gear set wears and disengages, preventing the power from being transmitted to the glass support frame.
The main driver's seat's main control can control other windows, but the front door glass does not respond: Excluding the main switch failure, the problem lies in the front door split control switch, the power supply line of the front door motor, etc.
Lifting and lowering operation abnormalities
The lifting and lowering speed significantly slows down and is completely stuck and jittery: The most common reason is that the glass guide slot is filled with dust and gravel, or the rubber sealing strip is aged and deformed, significantly increasing the resistance of the glass sliding; it may also be that the carbon brushes of the motor are worn out and the power output is reduced.
The glass suddenly stops at half-lift and even automatically descends: The motor is overloaded and triggers overheating protection, or the steel wire rope is partially frayed and stuck in the guide rail gap, causing a mid-run jam.
The glass immediately drops back a certain distance after reaching the top: The anti-clamping function is triggered mistakenly, the resistance in the guide slot is too large, causing the control module to misjudge and trigger the protection mechanism to retreat. Some models may require reinitialization and reset of the window.
The glass lifting and lowering is obviously tilted, one side is high and the other is low: The fixing bolts of the glass support frame are loose and shifted, or the guide rail on one side is deformed and misaligned, causing the glass running trajectory to completely deviate.
Noise and vibration type faults
There is a "clicking" friction noise throughout the lifting and lowering process: The glass guide slot is lacking lubrication and is clogged, or the steel wire rope is dry and lacks oil, causing continuous friction and emitting noise during operation.
When the vehicle passes through bumpy sections, the front door glass emits fine vibration noise: The fixing screws of the lifting device are loose, the glass support frame is too large, or small stones or other foreign objects fall into the door trim, and they collide during the bumping, emitting sound.
A "click" hard impact sound occurs at the end of the lifting and lowering process: The limit buffer block of the lifting device is aging and cracking, the glass directly collides with the upper stop point, and long-term use may break the edge of the glass.
Electrical control function failure type faults
The one-button lifting function is completely lost: After the battery is disconnected, the window control module loses the travel memory, and in 90% of cases, the universal reset operation of "lifting to the top for 3 seconds + lowering to the bottom for 3 seconds" can restore it.
After the switch is pressed, the glass does not stop rising or falling and keeps moving uncontrollably: The internal control circuit of the switch is stuck and short-circuited, preventing it from cutting off the power supply to the motor properly. Immediate power cut for maintenance is necessary to avoid damaging the motor.
The anti-collision function is completely ineffective: The motor torque sensor is aging, or the control module program is incorrect, unable to recognize the resistance of the hand being caught, losing its safety protection capability.
