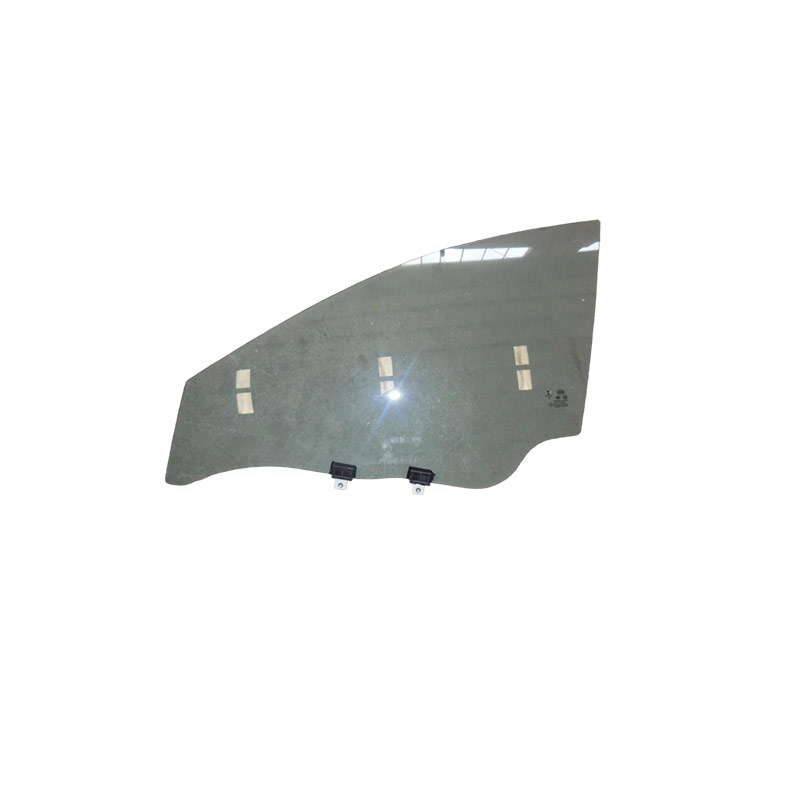

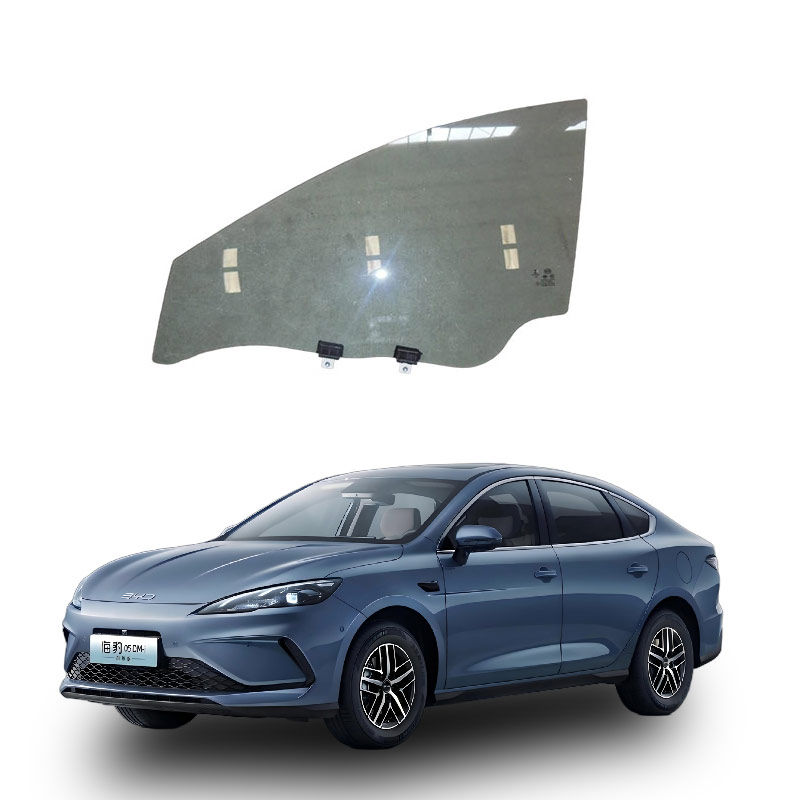

What is the front door glass assembly of a car?
The front door glass assembly of a car is a modular assembly that integrates all the related components of the front door side window. It is not just a single piece of glass.
Core Components
Main Lifted Glass: Electrically or manually up-and-down liftable tempered safety glass with a thickness of typically 2-4mm. When broken, it will form blunt particles to prevent splashing and injury.
Front Door Triangular Window: The fixed small glass between the A-pillar and the main glass of the front door. It is used to optimize the side front view, reduce the A-pillar blind zone, and divert high-speed air flow to reduce wind noise.
Lift and Adjust Mechanism: Includes glass support frame, guide rail, motor/hand crank device. It is responsible for driving the glass to rise and fall smoothly. The triangular window of some models can also reserve more space for this mechanism.
Sealing and Fixing Accessories: Window frame, rubber sealant strip, edge connection piece, positioning pad, etc., to ensure that the glass does not shake during lifting and lowering, and to prevent rain and wind noise from entering the vehicle.
Core Function
It meets the lighting and ventilation needs of the front passengers, and simplifies the vehicle assembly process through modular integration design, reducing the risk of glass noise and cracking during driving.
Strengthening the door frame structure to enhance the rigidity of the vehicle body's side, reducing door deformation in minor collisions, and indirectly improving the safety of the occupants inside the vehicle.
When replacing the front door glass assembly, it is crucial to control the matching of accessories, construction details, and subsequent curing. Avoiding subsequent problems such as noise, leakage, and stuck lifting.
Accessory Selection Tips
Prioritize matching parts: Choose certified parts from brands like Fuyao or Xinyi, or used car parts with original factory holes. For aftermarket parts, check the glass curvature, thickness, and bracket installation holes. Any deviation of more than 1mm will cause the lifting mechanism to stick.
Avoid inferior materials: The sealing glue must be polyurethane glue that meets the original factory standards. Inferior glue is prone to water leakage and increased wind noise problems in the later stage. Choose products with a warranty period of more than 1 year.
Check accessories synchronously: When replacing, check the aging glass guide groove and sealant strip, and spray rubber lubricant to avoid frictional noise after the new glass is installed.
Key Details of Construction Operations
Prevent damage during disassembly: Use plastic pry bars to remove the door panel, do not use metal screwdrivers to pry forcefully. Prepare the corresponding replacement clips for the vehicle model in advance to avoid cracking of the door panel clips and interior panels.
Be precise in positioning: When installing the triangular window of the front door, it must be parallel to the guide rail of the lifting mechanism. If it is misaligned with the B-pillar guide slot, the subsequent window lifting and lowering will directly get stuck.
Do not tighten the bolts too hard: For the bolts fixing the glass support frame, tighten them with your hand and add a little force. Over-tightening will directly crack the bottom edge of the glass.
Test after installation: Do not rush to reinstall the door panel immediately. Repeat the lifting and lowering of the glass 3-5 times to confirm no noise or deviation before resetting the interior panel.
Maintenance Tips after Replacement
Control during the curing period: Do not wash the car within 24 hours after installation. Keep the vehicle speed no more than 80 km/h within 3 days. Avoid bumpy roads and sudden braking and stopping. Prevent the glass from shifting due to the glue layer not drying.
Verify all functions: After completion, use a high-pressure water gun to test the edge of the glass to confirm no leakage. At the same time, repeatedly lift and lower the window to check if the switch is smooth and there is no stuck or abnormal noise.
Delay applying the film: Apply the glass film at least 10 days later to avoid the glue layer not being fully cured. Water vapor in the film cannot be discharged, affecting the sealing effect.
