What is the movable track assembly for the front door of the car?

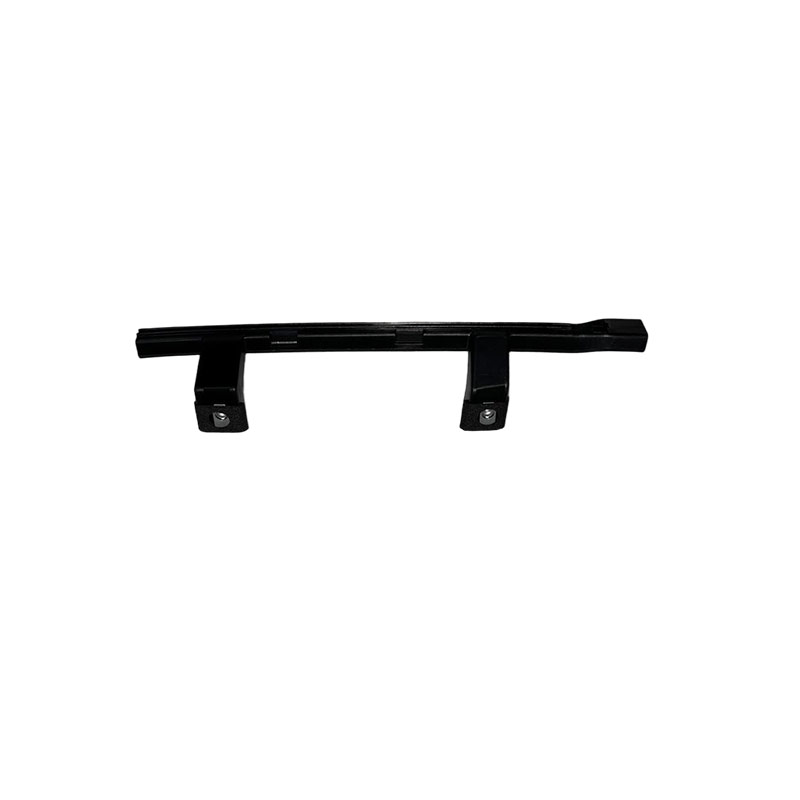

The movable guide rail component for the front door of a car is, simply put, a slot-shaped track component that guides the up-and-down or front-and-back movement of the front door window glass. It is usually combined with the glass lift mechanism to ensure smooth and stable glass lifting without shaking. At the same time, it also performs the functions of sealing, waterproofing, and dust prevention.
It is typically fixed on the inner panel of the car door, extending from the roof to the bottom of the door. The sliding block on the glass support is inserted into the guide rail and slides along it. At the bottom of the guide rail, there is usually a curved transition section to allow the glass to naturally tilt inward slightly when it reaches the bottom, facilitating the drainage of rainwater.
Structural features
Material and Thickness: Mainly uses cold-rolled steel plate SPCC. The thickness of the guide rail body is generally 0.7mm or 0.8mm, and the thickness of the bracket is 1.5mm.
Connection Method: Fixed to the door through clamping, wrapping or bolt connection.
Gap Requirements: The gap between the glass end and the guide slot is controlled within 2-2.5mm, and the insertion size into the guide rail is 7-10mm, ensuring stable lifting.
Q&A
Noise: Dust accumulation inside the guide rail, rubber aging, or lack of lubrication in the lifting mechanism can all cause a clicking sound when the glass is lifted and lowered. Cleaning the guide rail and applying lubricant usually resolves the issue.
Shaking or derailment: Over time, the guiding steel cable will stretch and the tension will decrease, causing the glass to shake or even derail. Adjusting the tension or replacing the steel cable is necessary.
Related patent design
Some manufacturers have optimized the guide rail. For example:
Noise reduction structure: The "Left Front Door Glass Upper Guide Rail" patent of Chongqing Lanling Tianhe adds a rubber sealing inner liner and filler inside the guide rail, which can absorb noise and remove residual moisture.
Reducing assembly difficulty: The "Door Glass Guide Rail Component" patent of Xuzhou Huaihai New Energy uses a front and rear guide rail combined with a crossbeam structure to leave no gap between the glass and the vehicle body.
The car front door movable guide rail component mainly provides sliding guidance and support for the door, allowing it to move smoothly back and forth while ensuring smooth glass lifting and lowering, and also providing sealing, dust-proof and sound insulation functions.
In simple terms, its functions can be divided into the following parts:
Guidance and support: The guide rail fixes the door like a track, allowing the door to slide along the predetermined trajectory during opening and closing without shaking.
Ensuring smooth glass lifting and lowering: The door glass moves along the guide rail, and the guide rail ensures smooth and stable glass lifting and lowering, avoiding jamming or skewing.
Sealing, waterproofing and sound insulation: The guide rail is combined with sealing strips to seal the gaps between the door and the window, reducing wind noise, rainwater and dust from entering the vehicle.
Shock absorption and buffering: The guide rail structure can absorb part of the impact during door sliding and glass lifting and lowering, reducing noise and vibration.
Note: If the door slides poorly or makes a clicking sound, check if there is any foreign object stuck in the guide rail or if the lubrication is insufficient.
If the glass lifts with a "clicking" sound, common causes include aging rubber in the guide rail, dirt on the guide rail, or lack of lubrication in the lifting mechanism. Cleaning and re-lubrication usually can alleviate the problem; if it is aging rubber, a new guide rail strip may be needed.
Faults of the car front door movable guide rail component are most commonly problems with the window glass lifting guide rail. The typical symptoms are lifting jamming, clicking sound, glass skewing or not closing properly. Check the sequence of "cleaning and lubrication → resetting software → finally checking hardware" to handle most cases yourself.
Self-check: Clean the guide rail and rubber strips
This is the most common and easiest step. Dust, sand particles accumulation or aging and hardening of the rubber strips can cause the glass to get stuck.
Clean the guide rail slot: Lower the glass to the bottom, insert a wet cloth into the guide slot, and wipe away dust, sand, leaves and other debris.
Lubricate: Spray the guide rail with a dedicated window lubricant or silicone oil, and then lift and lower several times to make the lubrication even.
Do not use engine oil or ordinary oil: It will absorb dust and get more stuck over time.
Clean the rubber strip: Use rubber protection agent to wipe the sealing rubber strip to alleviate the resistance caused by aging and hardening.
Try again: Reset the window function
If it is a sporadic malfunction or occurs after replacing the battery, it is likely that the control logic is messed up. Resetting will do.
Manual reset: Raise the window to the top, hold the lifting button for 3-5 seconds; then lower it to the bottom, also hold for 3-5 seconds. Repeat this cycle once.
Power off and restart: Some models can try to power off the vehicle for 10 minutes and then power it back on, or restart the vehicle's system.
Finally check: Hardware failure
If the problem persists after cleaning and lubrication, or if the following situations occur, it is likely that the hardware is broken. Do not forcefully pull it yourself. It is recommended to go to a repair shop for inspection.
Lifting noise, obvious shaking of the glass: It may be that the guide rail is deformed, the fixing screws are loose, or the steel wire rope of the lifting mechanism is broken.
The glass is crooked and not closing properly: This indicates that the guide rail is offset. It could be due to the guide rail being deformed or the fasteners loosening.
The motor is running but the glass does not move: This is usually caused by the aging of the lifting motor or the damage of the lifting assembly. The assembly needs to be replaced.
There is a burnt smell inside the door panel: It might be that the motor has burned out or the wiring harness has short-circuited. Immediate repair is required.
When the glass is crooked or stuck, do not repeatedly press the switch to forcibly lift or lower it. This could easily break the steel wire rope or cause the glass to shatter and fall.
