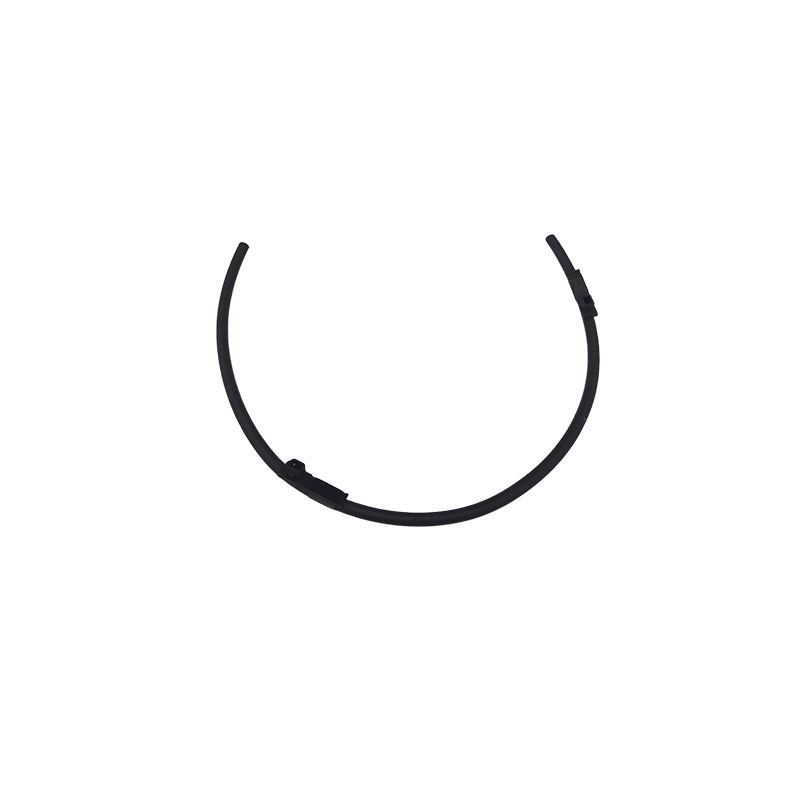

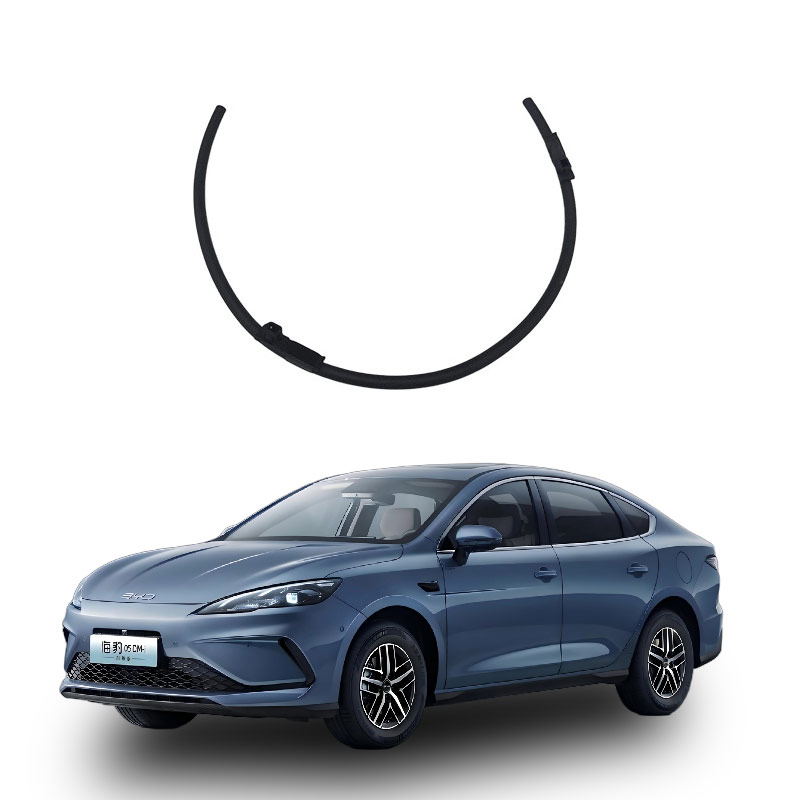

What is the car washing hose assembly?
The car washing hose assembly is a pipeline kit responsible for delivering windshield washer fluid in the windshield washing system. It usually consists of components such as hoses, connection joints, and nozzles, used to transfer the washing liquid from the reservoir to the spray nozzle.
Core components
Hose: A flexible pipeline connecting the reservoir, washing pump, and nozzle. Generally made of rubber or plastic, it needs to be resistant to wear and cold protection.
Joint: Includes T-type, Y-type, I-type, etc. connectors, used for branching pipelines or connecting different components to ensure a sealed interface without leakage.
Nozzle: Installed on the engine hood or wiper arm, it atomizes or sprays the washing liquid onto the windshield.
Washing pump: The core power component, responsible for pressurizing the glass water and then transporting it through the hose to the nozzle.
Q&A
Leakage or rupture of the hose: This can result in no water spraying or water leakage. Check if the interfaces are loose or if there are any cracks in the hose.
Blockage of the nozzle: Impurities or ice can clog the nozzle. Use a fine needle to clean or blow the hose in the opposite direction with compressed air to solve the problem.
Freezing and cracking in winter: Ordinary hoses tend to harden and crack at low temperatures. You can replace them with anti-freeze structures (such as thickened TPU inner liner), which can withstand lower temperatures.
If you notice that the water spraying becomes weaker or stops, first check if there is enough antifreeze, then check the hose interface and nozzle. This should help you locate most of the problems.
The function of the car washing hose assembly is to transfer the washing liquid from the storage tank to the nozzle and then spray it onto the windshield. It is equivalent to the "transport pipeline" of the cleaning system.
It is connected to the washing pump at one end and the nozzle at the other. The washing pump pressurizes the antifreeze in the storage tank and uses this hose to send the liquid, which eventually sprays out from the nozzle, cooperating with the wiper to clean the windshield. Some models also use a three-way joint to split the hose into two paths, allowing the nozzles on both sides to spray water.
If the hose shows signs of aging, rupture, or loose connections, it may cause weak spraying or failure to spray water at all. This can affect the driving view during rainy days or when the windshield is dirty. It is recommended to check it regularly.
In addition, car hoses have other tasks on the vehicle, such as the coolant hose to prevent engine overheating and the brake hose to transmit brake hydraulic oil. However, the washing hose is specifically responsible for the glass cleaning route.
If there is a fault with the car washing hose assembly, first determine whether it is a leak or a blockage, and then deal with it according to the symptoms. Most of these issues can be resolved by yourself.
The most common situations are:
Loose or detached interface: Reinsert it firmly, preferably with a clamp to prevent it from loosening again.
Aging or ruptured hose: It is prone to hardening and cracking in low temperatures or after long exposure to the sun. Replace it directly with a new one, choosing a durable silicone or explosion-proof woven material.
Nozzle blockage: Use a fine needle or a wire to clear it, then adjust the spray angle.
Internal blockage of the pipeline: It may be due to the accumulation of scale or impurities. Blow the pipeline with compressed air or clear the water inlet.
Wear of the sealing ring at the connection point: Remove the nozzle or connection point, and replace the sealing ring.
Regarding replacing the hose: It is not difficult to do yourself, but the steps may vary depending on the vehicle model. The general process is to first find the antifreeze storage tank, remove the relevant covers or bumpers, and then remove the old hose along the pipeline. Replace it with a new hose and secure it properly. Before starting, it is recommended to disconnect the negative battery terminal to prevent accidental triggering of the water spraying motor.
If after checking the hose and nozzle there is still no water spraying or the water pressure is very weak, it is likely to be a fault in the washing pump or the circuit. This is not easy to repair by yourself, so it is more advisable to go to a professional repair shop for handling.
If you replace it by yourself, first confirm the vehicle brand and approximate model. The disassembly and assembly paths may vary significantly for different vehicles.
