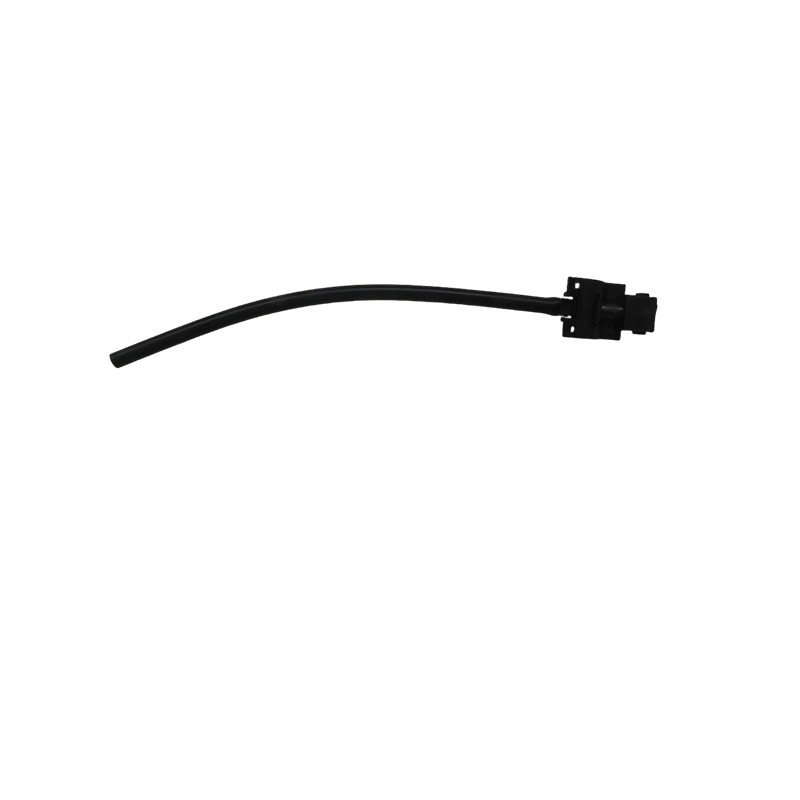

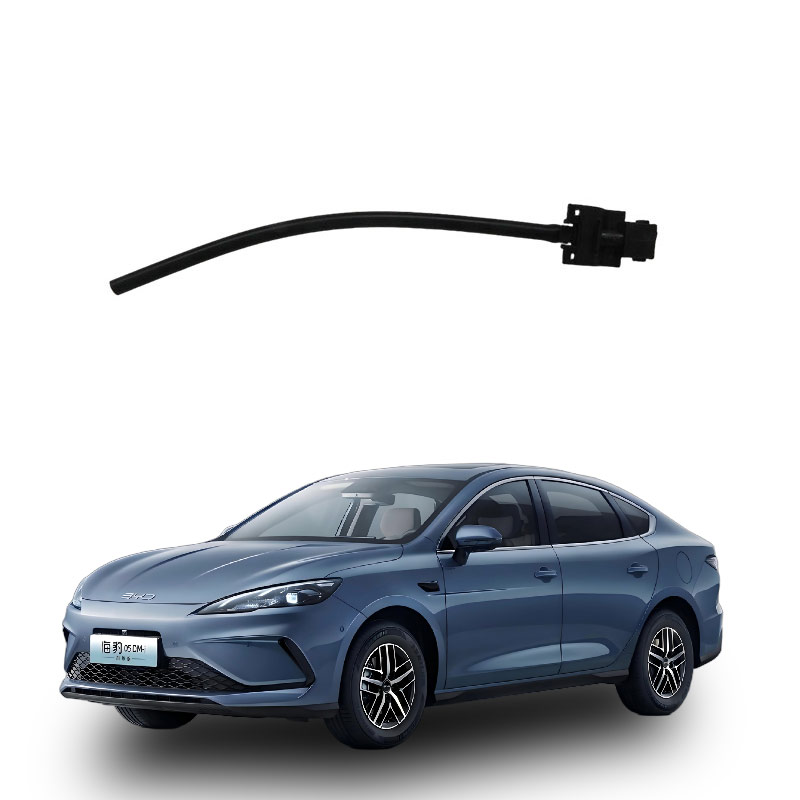

What is the car washing pipe and nozzle assembly?
The car washing pipe and nozzle assembly, simply put, is the pipeline and nozzle components in the car's cleaning system, responsible for transporting the cleaning liquid to the spraying position. It mainly consists of a flexible hose for transporting the cleaning liquid and a nozzle (water spray nozzle) for spraying the liquid.
Washing pipe (flexible hose): Connects the water storage tank and the water pump, transporting the pressurized cleaning liquid to the nozzle. The material is usually rubber or reinforced hose, requiring resistance to high and low temperatures and aging.
Nozzle assembly (water spray nozzle): Installed near the engine hood or the wiper arm, it precisely sprays the cleaning liquid onto the windshield through small water outlet holes. Some models also have a heating function to prevent freezing in winter.
Common types
Front windshield nozzle: The most common type, spraying water in combination with the wiper to clean the glass.
Headlight cleaning nozzle: Sprays a high-pressure water jet to clean the surface of the headlights, divided into exposed type and hidden type.
Heated water spray nozzle: Equipped with a heating device, suitable for extremely cold environments.
Practical reminder
The nozzle holes are very small, and over time, they are prone to being clogged with dust and scale, resulting in poor water spraying or uneven spraying. You can use a fine needle to gently clear them or remove the nozzle and rinse it with clean water; if the pipe is clogged, you can remove the water storage tank interface and use compressed air to blow it open.
Before operation, make sure to turn off the engine and disconnect the power supply to avoid damaging the circuit; remember to use anti-freeze windshield washer fluid in winter to prevent the pipe from freezing and bursting.
The washing pipe is responsible for safely transporting high-pressure water from the water source to the spray gun or nozzle. The nozzle assembly determines the shape and force of the water spray and, together with the washing pipe, can complete the cleaning.
The function of the washing pipe
Transporting high-pressure water: Connects the high-pressure pump with the actuator (such as the spray gun, nozzle), transporting the pressurized water steadily to the nozzle.
Resistant to pressure and wear: Usually uses steel wire weaving and other reinforced structures, capable of withstanding high pressure and wear, preventing leakage or rupture.
Length can be customized: Can be customized for length and connectors according to different usage scenarios, suitable for professional car washes or home use.
The function of the nozzle assembly
Controlling water spray form: Different types of nozzles produce different water spray forms, meeting different cleaning needs.
Straight nozzle: Contact point pressure is high, suitable for cleaning narrow gaps.
Fan-shaped nozzle: Contact area is large, with high cleaning efficiency.
Rotary nozzle: Suitable for high-intensity cleaning, with high pressure and high efficiency.
Foam nozzle: Mixes cleaning agents and water, suitable for stubborn oil stains.
Improving cleaning efficiency: The type of nozzle directly affects the pressure and cleaning effect of the equipment.
In the car's front windshield cleaning system, the water spray nozzle connects the water pump and the pipe, spraying the glass water in a mist form after pressurization, and combines with the wiper to achieve cleaning effects.
Use reminder
Long-term use of the nozzle may cause blockage due to sedimentation of water quality or accumulation of dust. It can be gently unclogged with a fine needle or compressed air instead of using sharp metal objects to forcibly clean it.
It is recommended to use anti-freezing cleaning solution in winter to prevent the pipeline from freezing and bursting.
Common causes of faults in the car washing pipe and nozzle assembly are nozzle blockage, pipeline blockage/leakage, damage to the water pump or fuse. Among them, nozzle blockage has the highest probability. You can troubleshoot in the order of "simple first, then complex". Most minor problems can be fixed by yourself.
Troubleshooting steps
Check the water level of the windshield washer fluid: First, open the hood to check the windshield washer fluid reservoir. If there is no fluid or it is below the scale line, add the corresponding season's windshield washer fluid. In winter, also confirm if it is frozen. When frozen, do not repeatedly press the water spraying switch, as it is easy to burn the motor.
Unclog the nozzle: Find a fine needle or a round-nosed pin, gently insert it into the water spraying hole and rotate a few times to pick up the dust and scale. The movement must be gentle, and do not damage the nozzle. After unclogging, briefly move the water spraying switch to use water pressure to flush out the remaining impurities inside.
Check the pipeline: Follow the nozzle to find the rubber hose and check if there is any bending, aging, cracking, loose interface or leakage. If so, straighten the pipeline, tighten the interface, and use waterproof tape to wrap the slight leakage. If there is no water after adding windshield washer fluid, it may be that air has entered the pipeline. Briefly and repeatedly move the water spraying switch to release the air.
Check the motor and fuse: Let someone else press the water spraying switch in the car while you listen for the motor to make a "buzzing" sound:
There is a sound but no water spraying → Still nozzle or pipeline blockage, continue to unclog.
No sound at all → Probably the fuse is burned or the motor is broken. First, find the fuse box (usually under the driver's seat dashboard), compare the label on the box cover to find the fuse for the water spraying motor, and unplug it to see if the metal wire has melted. If it is broken, replace it with a fuse of the same specification (usually 10A or 15A, a few dollars). If the fuse is fine, consider the motor fault first. Before replacing, it is best to use a multimeter to measure the resistance to confirm.
Common pitfalls
Do not use tap water mixed with detergent as windshield washer fluid. The impurities are likely to settle and form scale, repeatedly blocking the nozzle and pipeline. Over time, it may also burn the motor. Try to use dedicated windshield washer fluid, and choose the anti-freezing type corresponding to the freezing point in winter.
When the pipeline is frozen and blocked in winter, do not forcefully poke or start the motor. In the frozen state, the motor load is extremely high, and it may be burned within a few seconds. Replacing the motor costs several hundred yuan. Park the car in a warm place to thaw naturally, and then replace the anti-freezing windshield washer fluid.
Daily prevention
Every month, spray the windshield washer fluid until it is almost empty and add new fluid. Use the water flow to wash away the impurities in the pipeline.
Regularly clean the dust and fluff on the surface of the nozzle. Do not directly use a high-pressure water gun to spray the nozzle, as it is easy to damage the internal one-way valve.
If the car is not used for a long time, spray water for a few seconds before starting to remove the accumulated impurities in the pipeline.
