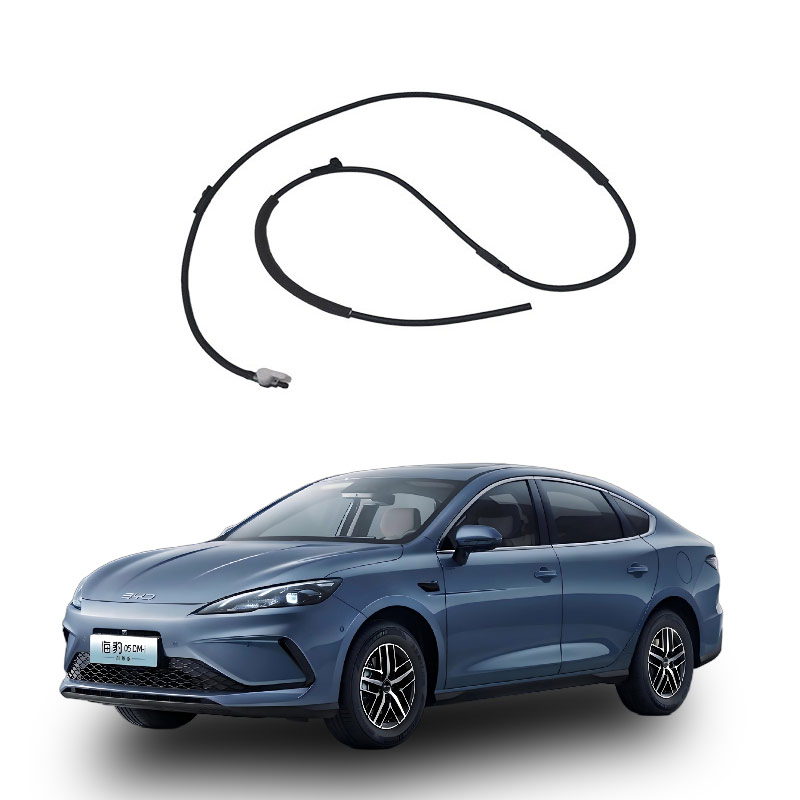

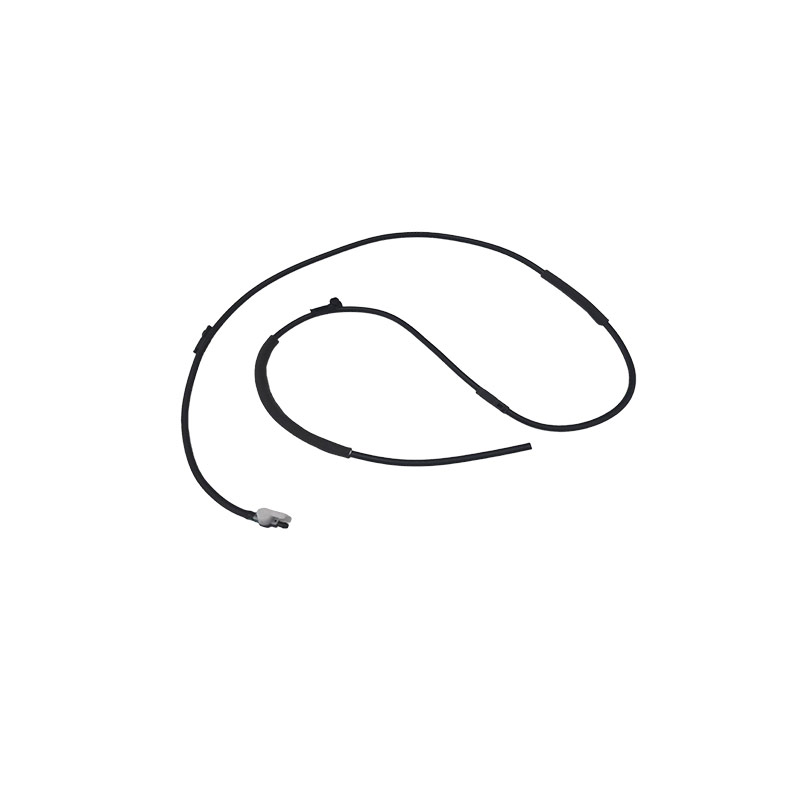

What is the car washing hose assembly?
The car washing hose assembly is simply the piping system that connects the reservoir (glass water tank), the washing pump, and the spray nozzle, responsible for delivering the glass water to the windshield and cooperating with the wiper to complete the cleaning. It is not a single part but a complete set of components consisting of the hose body and the matching connectors, mainly including:
- Hose body: Usually made of rubber or plastic, responsible for transporting the washing liquid. There are different specifications for anti-freezing, aging resistance, etc., such as the hose for winter use will be more resistant to low temperatures.
- Connectors and three-way joints: Used to connect the hose, the pump, and the nozzle. The three-way joint is responsible for distributing the washing liquid to the left and right nozzles to ensure both sides can be sprayed.
- Nozzles: The component that atomizes the liquid and sprays it out, blockages or freezing will affect the spraying effect.
The working process is: Press the spray water switch → The washing pump starts, pressurizing the glass water in the reservoir → The liquid passes through the hose and the three-way joint, and is sent to the nozzles → The nozzles spray the liquid onto the glass, and then the wiper cleans it.
Common faults and checks
If the water spraying is not normal, you can check in the following order:
- Check the liquid level: Is there no glass water in the reservoir?
- Listen for sounds: When pressing the switch, is there a running sound from the washing pump? Lack of sound may indicate a burned fuse or motor failure.
- Check the nozzles: Are the nozzles blocked by impurities or ice? You can use a fine needle to clean them.
- Check the hose: Is the hose detached, cracked, or has the interface loosened and leaked? Especially for old cars, the hose aging and hardening can easily cause a break at the joint.
The car washing hose assembly is mainly responsible for transporting the washing liquid from the reservoir to the nozzles, and then spraying it onto the windshield, cooperating with the wiper to complete the cleaning.
The working process of the entire system is: Press the spray water switch → The washing pump starts, pressurizing the washing liquid in the reservoir → The liquid passes through the hose and the three-way joint, and is sent to the nozzles → The nozzles spray the liquid onto the glass, and then the wiper cleans it.
The role of the hose in the system
- Transport channel: Connects the washing pump and the nozzle, transporting the pressurized washing liquid stably to the nozzle opening to ensure sufficient spraying force.
- Distribution function: Through the three-way joint, distributes the washing liquid to the left and right nozzles to ensure a more even coverage of the glass.
- Pressure and temperature resistance: The hose needs to withstand the pressure generated by the washing pump, generally with a working pressure of 0.2 to 0.3 MPa. The material needs to be resistant to aging and corrosion by the washing liquid.
Points to note
If the hose ages, cracks, or the connectors are loose, there will be problems such as weak spraying, leakage, or no water at all, directly affecting the driving view. It is recommended to regularly check for cracks, bulges, or leakage at the hose and connector joints.
If there is abnormal water spraying, you can first check if there is liquid in the reservoir and if the nozzle is blocked, then check if there is leakage at the hose and connector parts.
Faults of the car washing hose assembly: First, determine if it is a leak or a blockage, then treat it according to the symptoms. Most can be handled by yourself.
- Common situations:
- Loose or detached connectors: Tighten it again, preferably with a clamp to prevent it from loosening again.
- Aging or cracked hose: It is prone to hardening and cracking in winter or under long-term exposure to the sun, directly replace the new hose, choose durable silicone or explosion-proof woven materials.
- Nozzle blockage: Use a fine needle or iron wire to unclog it, then adjust the spraying angle.
- Internal pipe blockage: It may be due to the accumulation of scale or impurities, blow the pipe with compressed air or clear the inlet.
- Sealing ring wear at the connection: Remove the nozzle or connector, replace the sealing ring.
- Regarding replacing the hose: It is not difficult to do yourself, but there are differences in steps for different models. The general process is to first find the glass water reservoir, remove the relevant covers or bumpers, and then remove the old hose along the pipe, replace it with a new hose and fix it. Before starting, it is recommended to disconnect the negative terminal of the battery to prevent accidental triggering of the spray water motor. If after checking the hose and nozzle there are no issues, but still no water is being sprayed or the water pressure is very weak, it is likely that there is a fault with the washing pump or the circuit. This is not something you can easily fix yourself, so it's better to take it to a professional repair shop.
If you decide to do it yourself, you should first confirm the vehicle brand and approximate model. The disassembly and assembly paths vary significantly for different vehicles.
