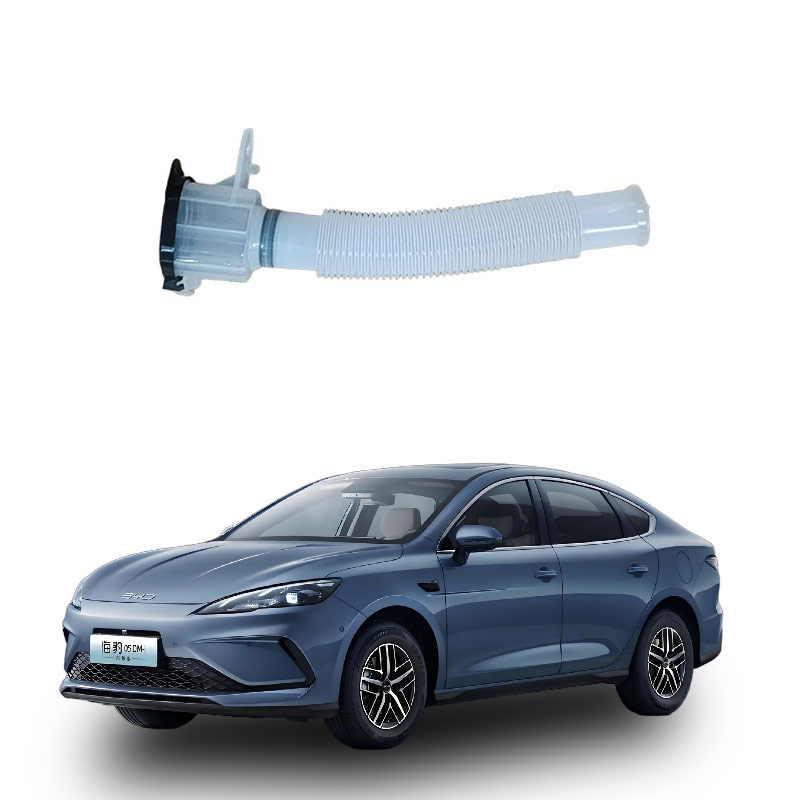

What is the car washing nozzle assembly?
The car washing nozzle assembly is the "neck" structure that connects the washing tank body and the nozzle, and leads to the filling port. It is part of the windshield washer system (the one that sprays water). Its main function is to fill and store the washer fluid, and to make the tank body more securely fixed on the vehicle body.
Specifically, its role and working principle can be understood from the following aspects:

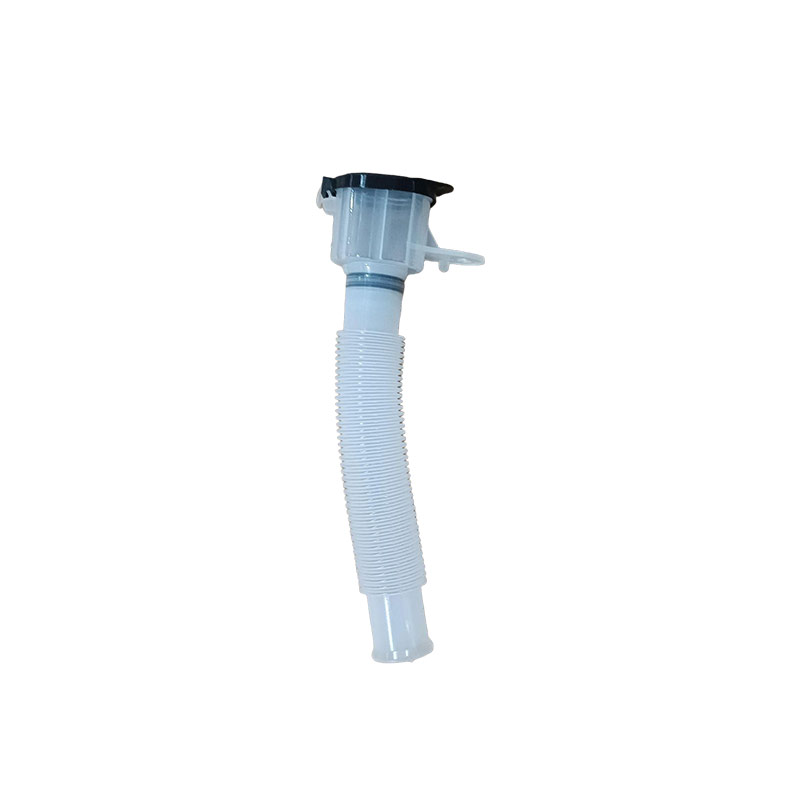

- Structure composition: It usually consists of a neck and a nozzle. Some models also have a guide pipe or a connection sleeve. The neck is connected to the tank body at one end and to the nozzle (filling port) at the other end.
- Connection method: The neck and the tank body are generally connected by threads (interior and exterior threads) or by clips. The interface is often equipped with a rubber sealing ring to prevent water leakage.
- Fixation and positioning: Some designs include positioning structures between the neck and the tank body to prevent the neck from axially disengaging or rotating in the vehicle during driving, making the assembly more stable; some designs fix the filling tube with a positioning bracket on the vehicle body.
- Common forms: The neck itself can be a hard plastic part or a flexible hose, which is convenient for layout in the narrow engine compartment.
The "neck assembly" you asked about is usually the above-mentioned filling port-related structure. The details of different models may vary slightly, but the functions are similar.
If you want to add washer fluid yourself, simply open the blue or black cover with the "wiper fluid" label in the engine compartment. That cover is connected to the neck and the washing tank.
The washing nozzle neck assembly's problem is most commonly manifested as "no water spraying or significantly reduced water pressure". The root cause is usually a blocked pipe in the neck, poor sealing, or a stuck one-way valve. Check the steps below in order to solve most cases yourself.
- Check if the pipe is blocked or bent: If the pipe connecting the neck to the tank is bent or blocked by debris, water cannot flow through. Gently pull the pipe to check for bends and straighten them if necessary. Use a fine iron wire or air blow to clear any blockages.
- Confirm if the one-way valve is stuck: Some models have a one-way valve on the pipe. If it gets stuck, water will not spray out. It needs to be disassembled for inspection or replacement.
- Check the sealing and interface of the neck and the tank body, as well as the pipe: If the interface between the neck and the tank body, or the pipe, is loose or the sealing ring is aged, it will leak air and water, resulting in insufficient pressure. Re-tighten or replace the sealing ring.
- Pay attention to ice expansion in winter: When the temperature is low, the liquid in the tank may freeze and potentially crack the neck or the tank body. In winter, add antifreeze washer fluid to about two-thirds to leave room for expansion.
- Eliminate faults in the washing pump itself: If the neck and the pipe are normal, and the switch is pressed but there is no sound of the pump running, it is likely that the washing pump motor is broken or the circuit is open-circuited. In this case, it is recommended to have it checked and replaced at a repair shop.
When conducting the inspection, first make sure there is still water in the kettle and it is not frozen. If the issue involves circuit or pump replacement and you are unable to handle it yourself, it is safer to seek professional repair services.
If the blockage is in the nozzle rather than the kettle neck, you can use a fine needle to clear it, or soak it in white vinegar to soften the scale and then clean it.
