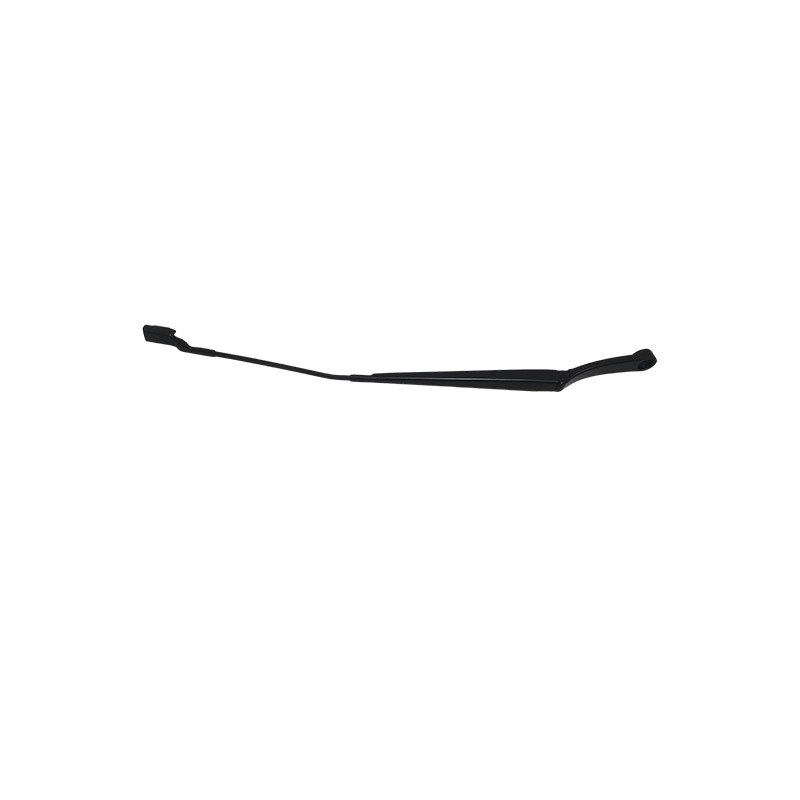

What is the car scraper arm assembly?
The car scraper arm assembly is commonly referred to as the wiper arm. It is the metal arm within the wiper that supports and drives the wiper blade. Typically, two such arms are installed on the front windshield, and some rear windows may also have one.
Its main function is to transfer the power from the wiper motor to the wiper blade, allowing it to swing back and forth and wipe away rain and dust. You can think of it as: the wiper arm is the "framework", and the wiper blade is the "rubber strip". They must work together to clean the windshield.
Structure composition
Arm body: The main supporting structure. Common materials are stainless steel or galvanized steel. Lightweight models use aluminum alloy or carbon fiber.
Connection end: One end is connected to the drive shaft of the wiper arm. Common interfaces include U-shaped and plug-in types.
Pressure mechanism: There are often spring structures inside to adjust the pressure of the wiper blade against the glass, ensuring a uniform fit.
Daily use precautions
If the wiper makes abnormal sounds, fails to clean properly, or vibrates, often the problem is not with the wiper blade but with the uneven pressure or deformed angle of the wiper arm.
Replace the wiper blade: First, confirm the interface type (U-shaped or plug-in type), then lift the wiper arm to a vertical position before proceeding. Avoid damaging the glass.
For some models: The engine hood may block the wiper arm, requiring entering the "wiper maintenance mode" before lifting. Otherwise, it is prone to scratching the paint or the glass.
Optional accessories: It is recommended to use the original factory specification wiper arm assembly. Non-original accessories may have size errors, causing abnormal sounds or poor cleaning.
The core function of the car scraper arm assembly (commonly called the wiper arm) is: to connect the wiper motor and the wiper blade, converting the rotational motion of the motor into the back-and-forth swinging of the wiper blade, and pressing the wiper blade firmly against the windshield to ensure clean wiping.
In simple terms, it is both a "transmission rod" and a "pressing device". If it has problems, such as an angle deviation or insufficient pressure, even if a new wiper blade is installed, it will still cause problems like poor cleaning, abnormal sounds, or vibration.
Specific function breakdown
Transmit power: The wiper arm connects the motor and the wiper blade, converting the rotational motion of the motor into the back-and-forth swinging of the wiper blade. This is its most basic function.
Provide pressure: Through its own structure and internal assist springs, it keeps the wiper blade always in contact with the windshield's curved surface. Insufficient pressure will not clean properly, while excessive pressure will accelerate the wear of the rubber strip.
Limit wiping range: The angle of the wiper arm directly determines the position where the wiper blade rests on the glass and the wiping range. If the angle is deviated, the wiper blade may fail to reach the glass edges or stop higher than the lower edge of the glass, affecting visibility.
Supporting function: As the main supporting structure, it bears the entire weight of the wiper blade, ensuring the overall stability of the wiper system.
Common problems
Angle deformation: Usually caused by external forces, such as snow pressure bending, being pulled during washing, or manual twisting, can result in abnormal wiping range.
Uneven pressure: If the spring of the wiper arm ages or the structure deforms, the wiper blade cannot evenly contact the glass, easily causing vibration and abnormal sounds.
Connection wear: Loose or worn connection points, even if a new wiper blade is installed, may still cause poor cleaning problems.
Maintenance tips
When replacing the wiper blade, it is recommended to use a wiper arm assembly that matches the model and pay attention to the interface type (U-shaped or plug-in type). For some models, it is necessary to enter the "wiper maintenance mode" before operating to prevent damage to the glass or the wiper arm.
