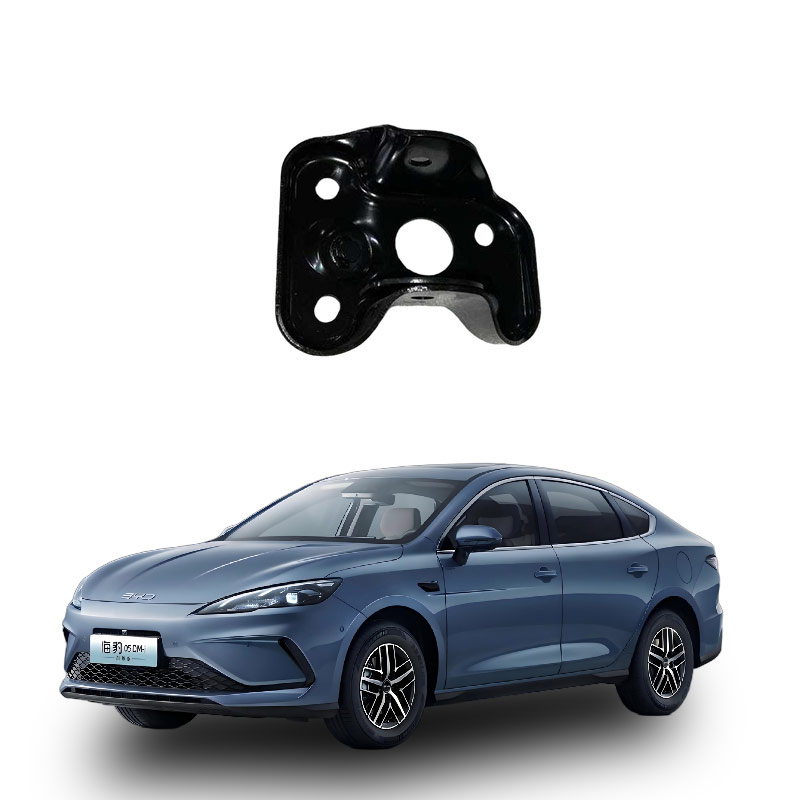

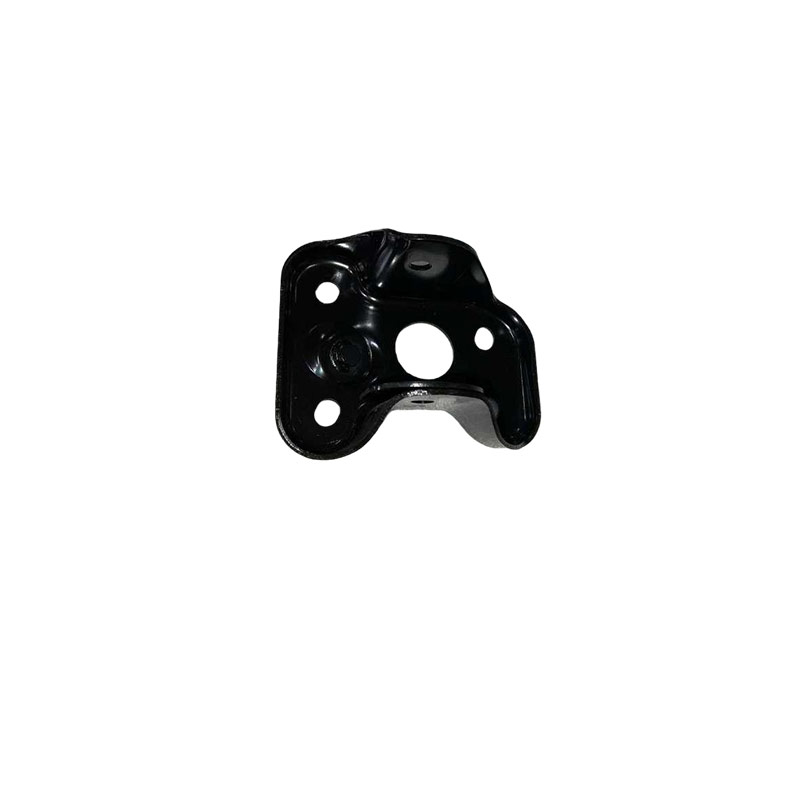

What is the installation bracket assembly for the right rear torsion beam of the car?
The rear right torsion beam mounting bracket assembly is essentially a complete set of metal connecting components that connect the torsion beam suspension system on the right rear wheel to the vehicle body. It is a structural component within the chassis suspension system.
It is not a single small part, but a combination. Its main function is to transfer the force exerted by the wheel to the vehicle body while ensuring that the suspension can move up and down normally. Specifically:
Function positioning: It is part of the torsion beam semi-independent suspension, responsible for connecting the torsion beam, longitudinal arm, and the vehicle body, bearing and transmitting vertical and lateral forces, and providing installation positions for the springs and shock absorbers.
Common components: Generally include the connecting bracket body, elastic bushing (rubber part), spring tray, etc. The elastic bushing is used to absorb vibrations and buffer, and the spring tray is used to support the coil spring.
Left-right difference: The bracket components on both sides are usually mirror-symmetrical. The right rear component corresponds to the right structure and cannot be installed in the wrong position.
If there is abnormal noise, deviation, or abnormal tire wear, prioritize checking whether the bushing is aging and cracking, or if the bracket is deformed or has welding cracks.
Overall, it is the "joint" between the rear suspension and the vehicle body. If it breaks, it directly affects the stability and comfort of the vehicle's driving.
The right rear torsion beam installation bracket component of the car is responsible for reliably connecting the rear suspension of the torsion beam to the vehicle body and bearing positioning, load-bearing, and buffering. It is a key connection component of the torsion beam semi-independent suspension and directly affects the driving stability and comfort of the rear wheels.
Specifically, it mainly does the following things:
Connection and positioning: Through the bracket and elastic bushing, it fixes the front ends of the longitudinal arms on both sides of the torsion beam to the bottom of the vehicle body, providing accurate front and lateral positioning for the rear wheels, allowing the wheels to always move along the designed trajectory.
Withstanding and transmitting force: During vehicle driving, braking, and turning, the vertical, longitudinal, and lateral forces on the rear wheels will be transmitted to the vehicle body through this bracket. It must be strong enough to ensure that the suspension does not deform or loosen under high load.
Buffering and shock absorption: The rubber bushing in the bracket can absorb the impact and vibration caused by road bumps and wheel jolts, reducing the hard impact directly transmitted to the vehicle body, and also reducing the noise and bumpiness felt inside the vehicle, improving comfort.
In addition, it should be noted that "right bracket" mentioned in the materials is often referred to as the "right engine bracket (torsion bracket)" in many contexts, which is used to fix the engine and absorb running vibrations. It is not the same component as the rear suspension installation bracket and should not be confused.
If the right rear torsion beam installation bracket component of the car fails, common manifestations are that there is a "clunking" or "creaking" abnormal noise when driving over bumpy roads, a larger body side-slip sensation, and abnormal tire wear. It needs to be repaired as soon as possible.
Common fault points
Rubber bushing aging and cracking: Long-term stress + oil corrosion causes the rubber to lose elasticity, and the vibration directly transfers to the vehicle body, generating abnormal noise and resonance.
Loose fixing bolts of the bracket: A "clunking" sound is emitted when the chassis is jolted, and lifting the vehicle to check the tire or using a pry bar to check the gap can confirm.
Bracket deformation or fracture: Often due to bottoming out, collision, or long-term stress concentration, severe cases can lead to incorrect rear wheel alignment and deviation.
Synchronous aging of shock absorbers or springs: If there is still abnormal noise even after replacing the bracket, check if the shock absorber is leaking oil or the spring is worn out.
Treatment suggestions
First diagnosis: Lift the vehicle and check if the rubber of the right rear bracket is cracked, de-laminated, or if the bolts are loose. At the same time, press the vehicle body to see if the rebound is normal.
Minor looseness: Re-tighten the bolts according to the standard torque, and the abnormal noise can usually be eliminated.
Rubber aging or bracket fracture: Directly replace the bracket assembly. Preferably choose original factory parts or brand-certified parts. It is not recommended to only repair.
After replacement: It is recommended to perform a four-wheel alignment once to confirm that the rear wheel alignment parameters are normal and avoid abnormal tire wear.
If the vehicle has traveled more than 80,000 kilometers, even if there is no obvious abnormal noise, it is recommended to have the technician check this bracket during maintenance to avoid sudden failure at high speeds.
