What is the front cover support assembly of a car?
The front cover support assembly is essentially a set of devices that enable the front cover (engine hood) to open and then remain securely in place without falling off. Its core function is to provide support and safety. It mainly consists of two types of structures:

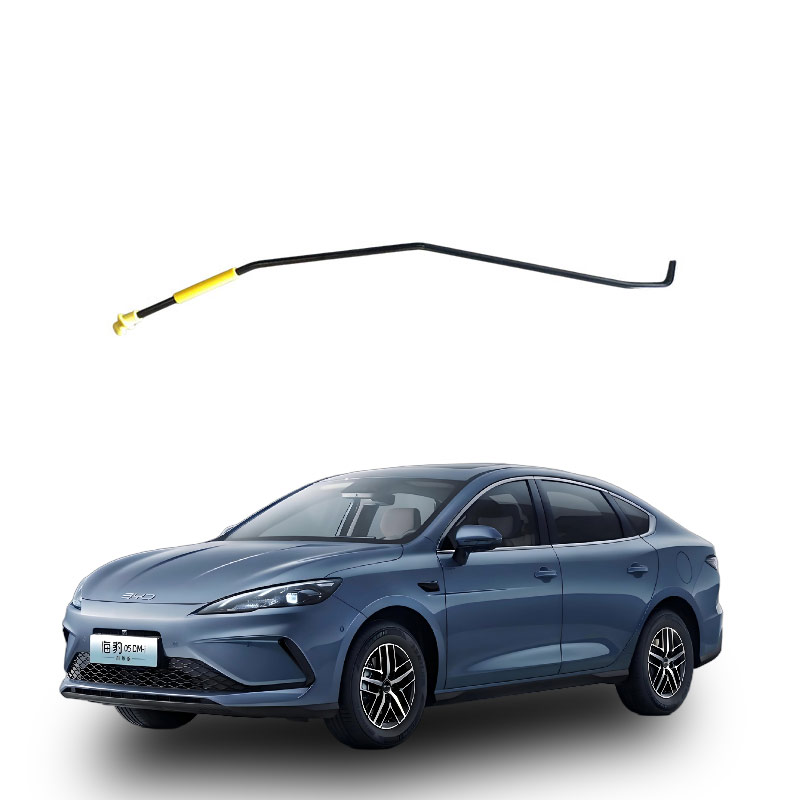

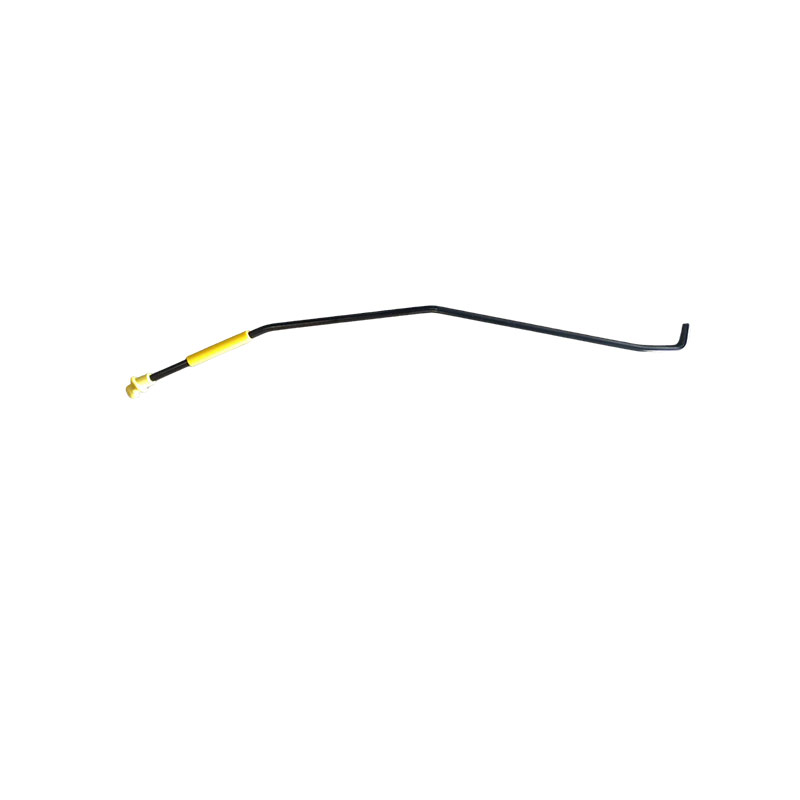

Mechanical support rods: A metal rod that is manually inserted into a slot or bracket after opening the cover to provide support. This structure is simple, low-cost, but the operation is slightly more laborious.
Hydraulic (pneumatic) support rods: Integrated on both sides of the front cover. When opened, they automatically lift and fix the cover, making it easier to use and more common in mid-to-high-end models.
Usage reminder:
The mechanical support rods should be aligned with the slots or holes on the inner side of the engine hood. A "click" sound indicates that they are securely fixed. Do not place them randomly on plastic parts or pipes.
Hydraulic support rods are prone to aging, with a lifespan typically ranging from 3 to 5 years. If you notice that opening the cover becomes more difficult or the support collapses halfway, it may be due to internal air leakage. It is recommended to replace them in pairs promptly to avoid injuring people or damaging the cabin components. The main function of the front cover support assembly is to securely support the engine hood after opening, preventing it from suddenly dropping, and making daily inspection and maintenance more efficient and safe.
Specifically, it mainly performs the following tasks:
Stabilize and protect safety: Fix the engine hood at the open position to prevent accidental closure and injury during inspection, and also avoid the hood loosening during vehicle bumps.
Distribute impact and assist in energy absorption: In the event of a collision, the support structure can disperse some of the impact force, providing certain protection for the occupants inside.
Effort-saving and convenient: The hydraulic support rods can automatically lift the hood, eliminating the need for manual support with rods, and can be operated with one hand.
Common forms:
Manual iron rods: Simple and reliable structure, low cost, but require manual support. It is a bit laborious.
Hydraulic support rods: Automatically lift and fix the cover when opened, making it more convenient to use. They are currently the mainstream configuration for family cars and may experience a decrease in support force due to air leakage over time. It is recommended to replace them in pairs promptly to avoid injuring people or damaging the cabin components.
When to pay attention:
If you notice that the engine hood is unstable, shaking, or making abnormal sounds after opening, or if it "crashes" down with a "bang" when closing, it is likely due to aging or air leakage of the support rods. It is recommended to check and replace them promptly.
Note: When replacing, prioritize original factory or matching vehicle parts to ensure the correct size and support force. Incorrect dimensions or support force can affect usage or even damage the hood hinge.
The most common failure of the front cover support assembly is the hydraulic support rods leaking or breaking, manifested as inability to support, dropping halfway, or complete lack of support force.
Common failure causes:
Sealing ring aging: Over time, the sealing ring loses elasticity due to wear, causing hydraulic oil leakage and the rods failing to support.
Internal damage to the hydraulic rod: Frequent opening and closing leads to fatigue and corrosion of the internal structure, unable to maintain pressure.
Loose fasteners or connections: The connection fasteners between the support rods and the vehicle body may loosen due to vibration, causing the rods to fail to support.
Locking or switch problems: If the front cover cannot be lifted at all, it may be due to the safety lock not being unlocked, the lock being stuck, or the switch being damaged. It is not necessarily the problem of the support rods.
Handling suggestions:
Temporary emergency: Before repair, use a support or other tools to hold the front cover in place to prevent it from suddenly dropping and injuring people.
First check: Check if there are any obvious problems with the lock, pull wire, spring, and support rods themselves.
Note: If the front cover suddenly pops up while driving, it is very dangerous. If the support force is lost, it is recommended to repair it promptly, do not delay.
