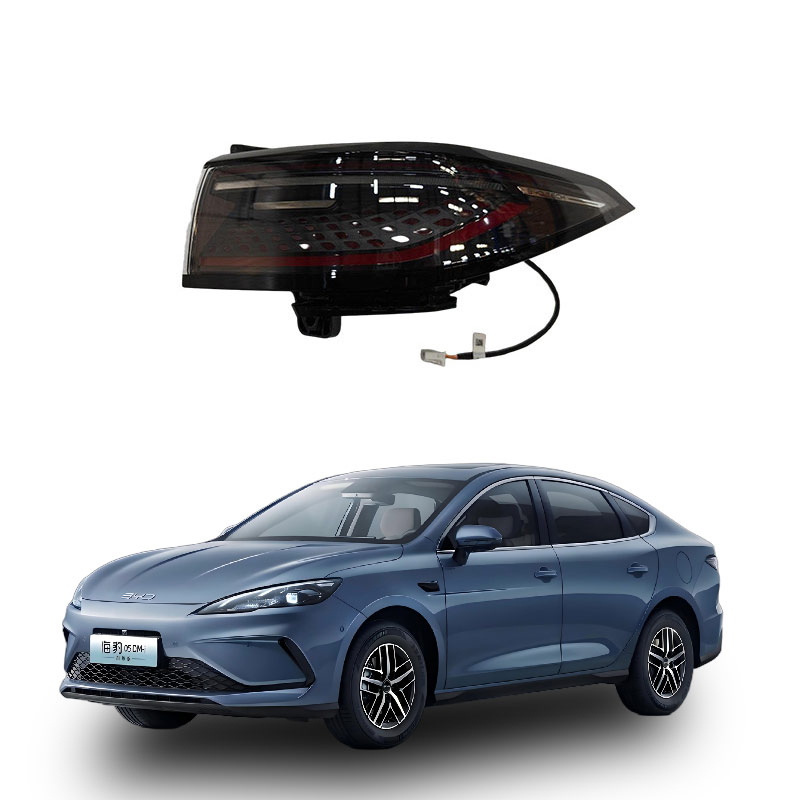

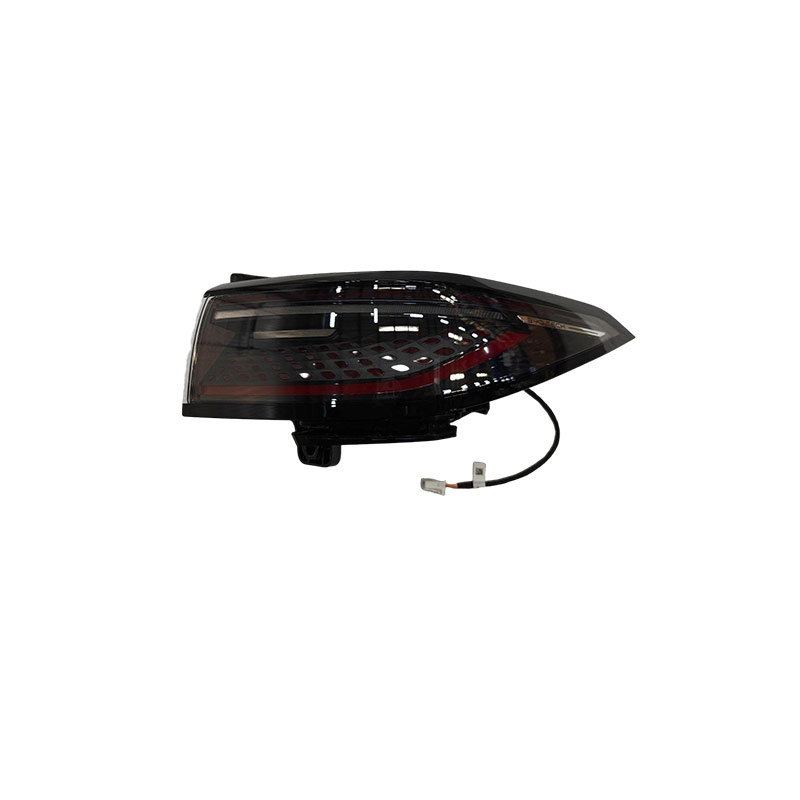

What does the car rear light assembly consist of?
The automotive rear lamp assembly is a combined lamp that integrates various signal lights at the vehicle's rear into a single lamp body. It is mainly used to convey information about the vehicle's driving, braking, and steering states to the rear vehicles.
In simple terms, it typically includes the following types of lights: brake lights (brake indicator lights), reverse lights, turn signals, rear position lights (outline lights), and rear fog lights. Some may also incorporate reflectors.
From a physical structure perspective, it is mainly composed of a lamp cover (lens), lamp housing (base), reflector, light source (LED or bulb), and sealing components.
The main functions of each component:
Brake light: Lights up when braking, indicating to the following vehicle to slow down or stop. It usually has left and right brake lights and high-position brake lights.
Reverse light: Lights up when reversing, illuminating the rear road and warning pedestrians and vehicles around.
Turn signal: Flashes when turning or changing lanes, indicating the direction of travel.
Rear position light: Also known as "small lights", it is used to show the presence of the vehicle and its approximate width.
Rear fog light: Enhances visibility at low visibility conditions such as rain or fog.
Additional Explanation
The rear light assemblies of different vehicle models may have some differences in design. For instance, some models may not have rear fog lights, or they may adopt different shapes such as continuous or separated designs. However, the core functions are basically the same. If a light fails to illuminate or gets waterlogged, it often requires replacing the entire rear light assembly rather than just a single bulb.
The function of the car's rear light assembly can be summarized as ensuring driving safety. It integrates multiple functional modules such as brake lights, turn signals, position lights, reversing lights, and fog lights, responsible for transmitting clear signals to other vehicles and pedestrians in braking, lane changing, and reversing scenarios, and enhancing the vehicle's visibility at night and in adverse weather conditions.
Specifically, each light group has its own role:
- Brake light: Lights up a bright red light instantly when the brake is applied, alerting the following vehicle to slow down or stop, effectively preventing rear-end collisions.
- Turn signal: Flashes rhythmically when changing lanes or turning, informing other vehicles of your driving intention.
- Position light: Continuously lights up at night or in dark tunnels, outlining the vehicle's shape, allowing other road users to clearly see your position and width.
- Reverse light: Lights up white when in reverse gear, warning pedestrians and vehicles behind to avoid and providing lighting for the driver during reversing.
- Fog light: Has strong penetrating power in rainy and foggy weather, improving visibility in low-visibility environments and reducing the risk of collision.
Key points during replacement:
If you need to replace the rear light assembly, in addition to matching the appearance, you should also pay attention to the material of the lamp cover and the sealing process - this directly determines whether the light assembly can be waterproof and dustproof and whether it will yellow and age after long-term use. The response speed of LED light sources is more than 0.3 seconds faster than traditional halogen lamps, which can shorten the reaction time of the following vehicle and provide better anti-tailgating effect.
Daily driving advice: Regularly check if all light groups are properly illuminated, especially before long trips. If you find that the brightness is reduced, the lights are flickering abnormally, or the lamp cover is fogged up, handle it promptly.
The most direct consequence of a rear light assembly failure is that signals such as brake lights, turn signals, and position lights fail, making it difficult for the following vehicle to detect in night driving and lane changes, significantly increasing the risk of rear-end collisions, and making it impossible to pass the annual inspection.
First, determine whether it is a single-side failure or a failure of all lights. This determines the direction of troubleshooting:
- Single-side failure: It is likely that the bulb is burned out, the contact of the lamp socket is poor, or the wiring plug is loose. First, check the bulb and lamp socket of the corresponding light group.
- Both sides or all rear lights fail simultaneously: The bulb problem can be largely ruled out. Priority should be given to checking the fuse and relay, as these are the lowest-cost troubleshooting items.
Common fault causes and cost reference: Follow the sequence of "bulb → switch/route → assembly" for troubleshooting. In 90% of cases, it can be resolved with a small amount of money.
How to troubleshoot on your own
- First, inspect the appearance and plug: Observe if the rear lights have cracks or are fogged up due to water ingress. Open the trunk to check if the wiring plug inside the rear light cover is secure.
- Remove the bulb for inspection: After turning off the engine and disconnecting the power supply, remove the lamp socket to check if the bulb is blackened, the filament is broken, and replace it with a bulb of the same specification.
- Check the fuse: Locate the fuse corresponding to the rear lights in the user manual and replace it with the same amperage if it is blown. Do not use a fuse with a higher amperage to replace it, as it may burn the wiring.
- Measure voltage: Use a multimeter to measure if there is voltage at the plug of the lamp socket. If there is no voltage, check for a short circuit or loose connector along the wiring harness.
