What is the rear door water cut-off component of a car?

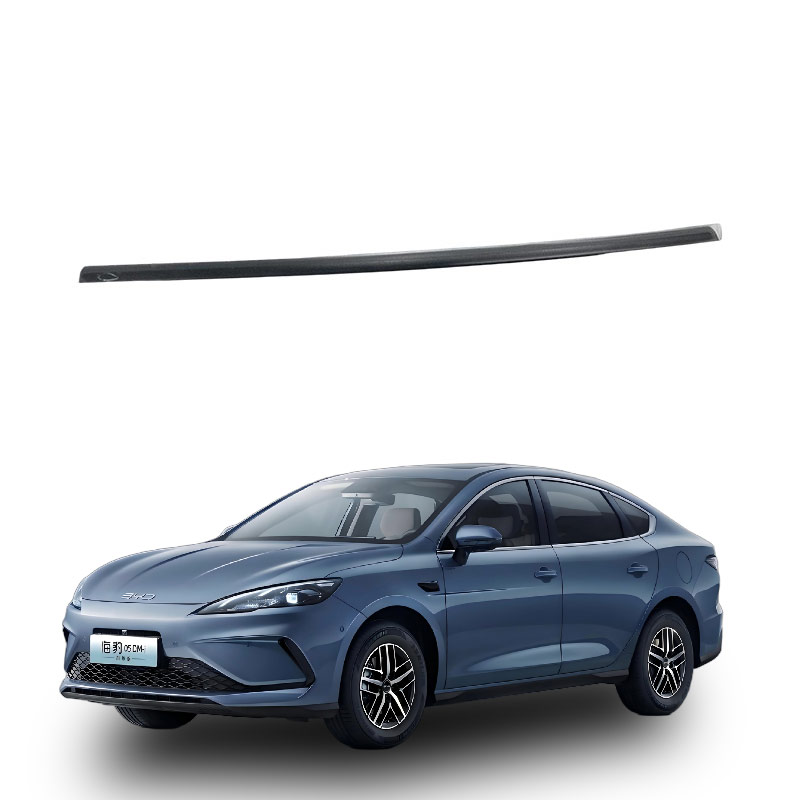

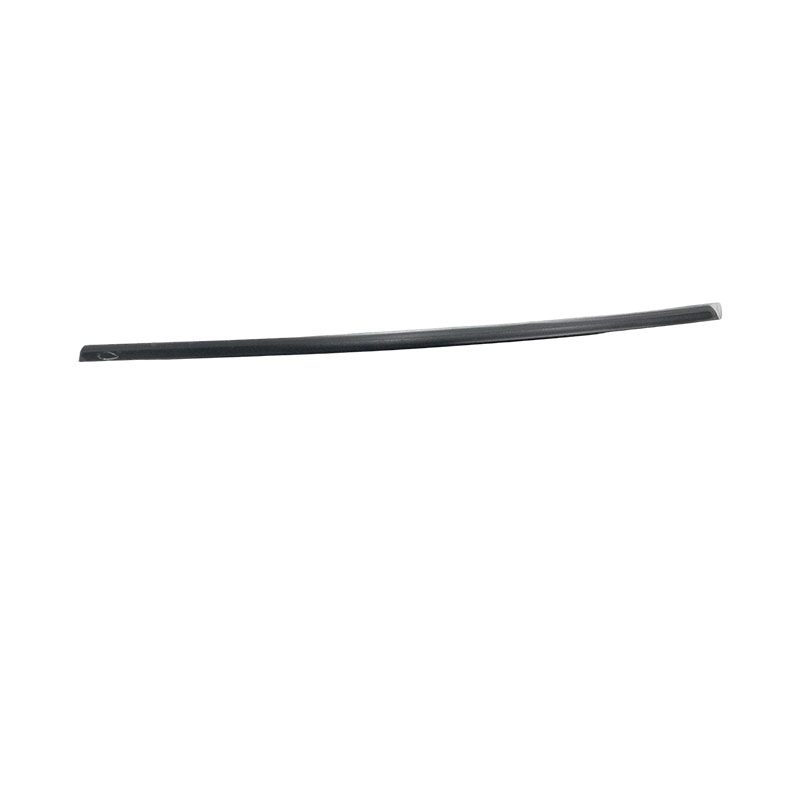

The rear door water cut component, simply put, is the rubber seal strip installed between the rear door window glass and the door frame. It comes in two types: inner (inner water cut) and outer (outer water cut), and its main functions are to scrape water, block water, reduce noise, and prevent dust.
The specific functions of this component on the rear door are as follows:
Scrape water mist: When raising or lowering the window, remove water droplets, water mist, and dust from the glass surface to ensure clear vision.
Block rainwater: Prevent rainwater or car washing water from seeping into the interior of the door through the glass gap, preventing the interior panels from getting damp, circuit short-circuiting, and metal parts from rusting.
Reduce wind noise: Fill the gap between the glass and the door to reduce air turbulence during high-speed driving, significantly reducing interior wind noise.
Protect the glass and the lifting mechanism: The surface wear-resistant coating reduces friction and scratches during the glass lifting process, stabilizes the glass running trajectory, and extends the lifespan of the lifting mechanism.
If you are looking for accessories, pay attention to the left rear door/right rear door and inner/outer different models. Before purchasing, check the vehicle model and specific location.
The rear door water cut (also called water cut component) is the rubber seal strip that is sandwiched between the window glass and the door frame. Its core function is to scrape off water droplets, water mist, and dust from the glass surface when raising or lowering the window, while blocking rainwater from seeping into the interior of the door.
Waterproof and moisture-proof: Block rainwater and car washing water from seeping into the interior of the door, prevent the interior panels from getting damp and moldy, and reduce the risk of circuit short-circuiting inside the door.
Reduce noise: Fill the gap between the glass and the door to reduce wind noise during high-speed driving. Many cars can reduce the noise by 3-5 decibels.
Protect the glass: Reduce friction during lifting, lower the probability of scratches; in winter, it can also help remove thin ice layers on the glass surface.
Prevent dust: The lip structure can block most dust, leaves, and other debris, preventing the drainage holes from being blocked.
Stabilize lifting: Make the glass lifting smoother, reduce shaking and abnormal sounds, and extend the lifespan of the lifting mechanism.
The rear door and front door water cut principles are the same. The main difference is that it adds a waterproof and dust-proof barrier. This is a rubber part, and if it ages, becomes hard, cracks, or deteriorates, if you find that it cannot scrape water cleanly or there are abnormal sounds during lifting, you need to consider replacing it.
If there is a problem with the water cut, common manifestations are: water seeping from the inner side of the door on rainy days or after car washing, abnormal sounds or resistance during window lifting, or obvious water marks or water films remaining on the glass after lifting.
You can first check and handle the following steps:
First, check these two areas:
Check the water cut condition: Lower the window and check if the inner and outer water cut rubber strips are hardened, cracked, deformed, or have fallen off the flocking. If it is only slightly aged, you can clean it and apply a special rubber maintenance agent to delay it; if it is significantly damaged, you need to replace it.
Check the drainage holes simultaneously: Door water leakage is not necessarily due to the water cut being damaged. The square drainage holes at the bottom of the door can also cause water to accumulate inside and seep out. Remove the rubber strip along the bottom edge of the door, use -shaped screwdriver or a fine iron wire to gently clear the mud and debris.
Replacement and repair suggestions
Replace the water cut： After confirming that the water cut is aged， damaged， or deformed， buy original or matching vehicle parts， remove the interior panel of the door， and replace it. If you have limited manual skills， it is recommended to go to a regular repair shop or 4S store to avoid installing it incorrectly and causing water leakage or abnormal sounds.
Adjust the door position： If the door installation or repair causes the gap to be filled with water， do not adjust it randomly. Professional personnel need to use equipment to correct it； otherwise， it may damage the door and the paint.
Check the waterproof film: There is also a layer of waterproof film inside the door interior panel. If it is damaged, water will directly flow onto the floor mat. Such situations also require the removal of the door panel for handling.
If the interior of the car door accumulates water for a long time， it can cause the window control module and door locks to malfunction or be damaged. In severe cases， it can even rust the door. If you notice water seepage， you should deal with it as soon as possible； don't delay.
