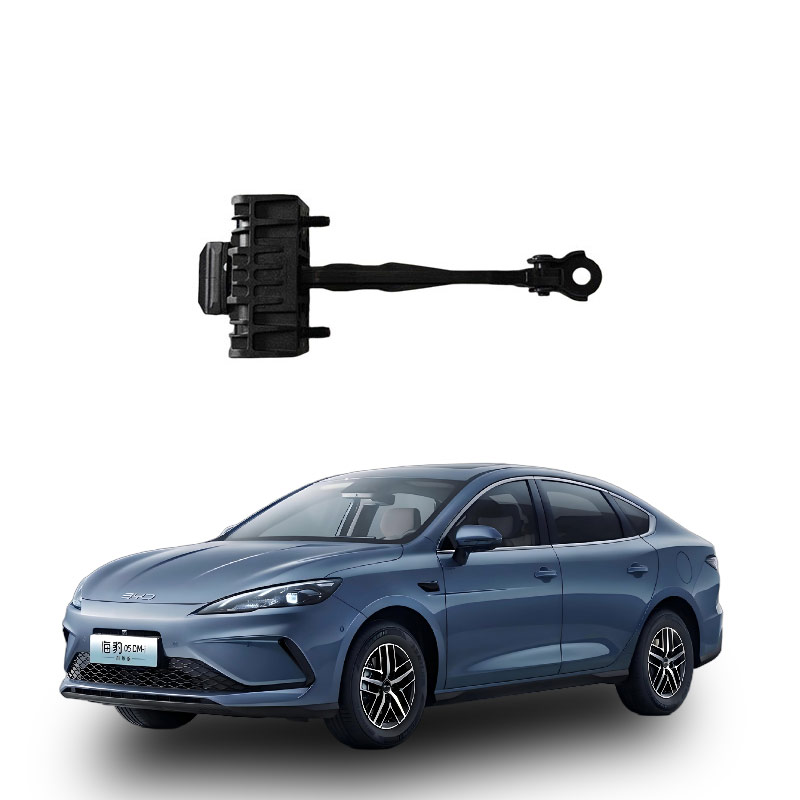

What is the car front door limiter assembly?
The car front door limiter assembly, simply put, is a small component installed between the door and the body of the vehicle to control the opening and closing angle of the door. It is usually a metal rod connected to the door and the body of the vehicle, with rubber or plastic damping blocks on the rod. Every time you open or close the door, you are using it.
Its core functions are two: one is to limit the maximum opening angle of the door to prevent it from opening too wide and hitting nearby objects; the other is to allow the door to stop at a certain angle and not close or open all the way by itself. It is particularly useful when parking on a slope or in strong winds.
Common types
Pull-rod type (box type): The most common type in family cars, with a simple structure and low cost. The limit box is installed on the door and slides along the limit arm to achieve the limit.
Spring type: Integrated with the hinge, with low noise and long lifespan, but the structure is complex and the maintenance cost is high. It is mostly seen in some European models.
What happens if it breaks
When you open or close the door, there is a "clicking" sound. This is more obvious in winter.
The door cannot stop: It opens all the way or closes slowly by itself.
The door has a "stuck" feeling: It opens and closes in jerks.
If it is just a strange noise or stuck feeling, cleaning and applying some silicone-based lubricant usually can solve the problem; but if the door cannot stop completely or the limiter is broken and deformed, it needs to be replaced. For ordinary models, replacing a new limiter assembly costs around 50 to 100 yuan.
Daily maintenance is simple: Clean the metal rod with a cloth, brush away the dust in the gaps with an old toothbrush, and then apply some special lubricant. There is no need to go to a repair shop.
The function of the car front door limiter assembly mainly includes two: limiting the maximum opening angle of the door and allowing the door to stop at a certain angle, preventing it from opening too wide or closing by itself.
Specifically:
Control the opening angle: Limit the opening angle of the door to a reasonable range (commonly about 60° - 75°), to avoid opening too wide and damaging the door or hitting nearby objects.
Multi-stage positioning: Many cars adopt a multi-stage design (such as 25° / 45° / 65°), which can be used in different scenarios - less opening for narrow parking spaces, more opening for getting in and out, and the door can stop at the corresponding position, and it will not automatically close or open all the way on slopes or in strong winds.
Buffer and shock absorption: Built-in rubber or hydraulic damping, which can absorb the impact when closing, reducing the wear on the hinge, lock body, and body.
Common faults and handling
Over time, the limiter assembly is prone to wear or insufficient lubrication. The typical symptoms are:
The door shakes slightly when it reaches the maximum angle
The closing feeling becomes lighter or there is a "clicking" abnormal sound
The door cannot stop on slopes or when driving in strong winds
If the front door limiter assembly is broken, first check the type of damage: if it is just a strange noise or stickiness, it is usually due to lack of lubrication, and applying some lubricating grease can solve the problem; if it is broken, stuck, or has no resistance at all, it is necessary to replace the limiter assembly.
First determine the degree of damage
Strange noise or stickiness during operation: This is usually caused by a lack of lubrication. Go to the repair shop and apply some grease or lubricant to solve the problem, or apply a box of it yourself.
Broken, losing limit function: For example, the door opening becomes too wide, cannot be fixed, automatically rebounds, or the closing is not tight. This must be replaced as soon as possible.
Replacement method
4S store replacement: The original factory parts are guaranteed, and the repair record is entered into the file. However, the labor cost is high, and it is 20% - 30% more expensive than external stores.
Do it yourself: You can save the labor cost, but you need to have certain manual skills. You need to prepare a cross-head screwdriver, 10mm or 12mm socket wrench, remove the interior panel of the door, and behind the speaker to replace it. The entire process takes about 15 - 30 minutes.
Replacement precautions
Do not need to remove the entire door, just remove the interior panel of the door, take out the old limiter through the speaker hole, and then reinstall it in the original direction.
It is recommended to replace with original factory parts. Before buying, confirm that the model and vehicle type are completely matched to avoid installation failure or abnormal noise.
Just replace the broken one, do not replace in pairs. The limiter works independently.
After the replacement, repeatedly open and close the door for testing to ensure smooth operation, clear gear sensation, and no abnormal sounds.
If only the outer plastic cover is damaged and the limit function is not affected, you can leave it as it is and continue observing. But if it has broken or lost its resistance, don't delay, and handle it promptly for safety.
