What is the left rear door component of the car?

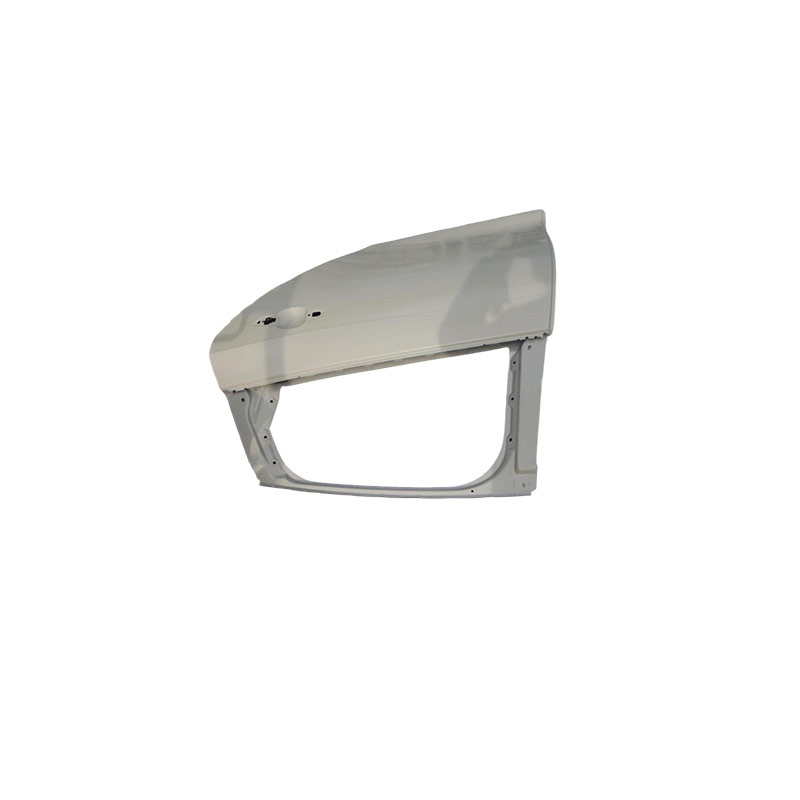

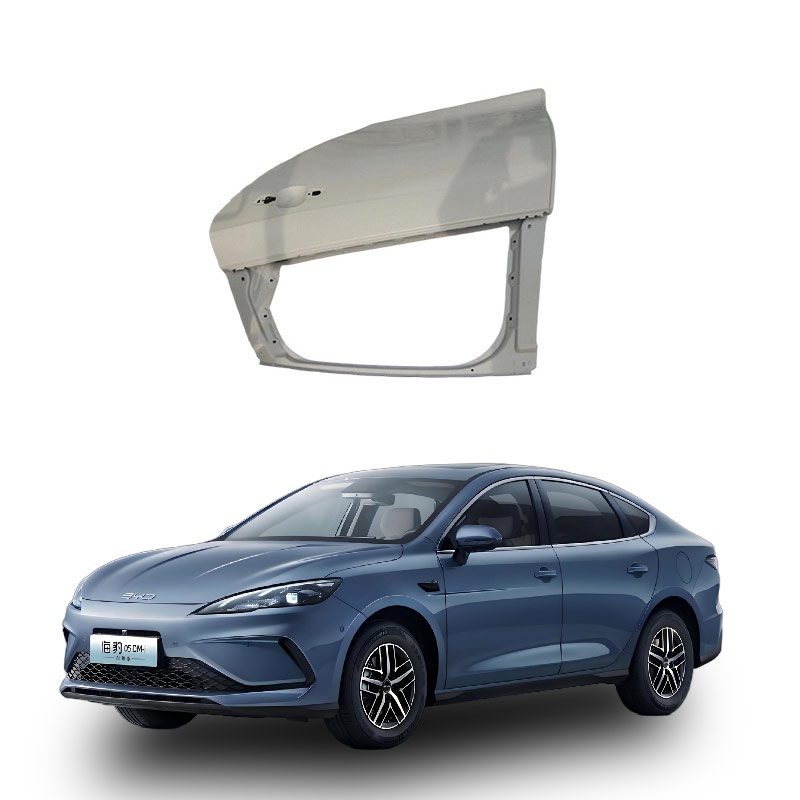

The left rear door assembly of a car is the complete structural assembly of the rear passenger door on the left side. Simply put, it is the entire left rear door and all the components installed on it. It is not just the outer layer of metal, but an integrated whole composed of body structural components, functional accessories, and interior components. It usually includes the following parts:
Structural part: outer panel, inner panel, door frame, and impact bar (steel beam). The outer panel is responsible for the appearance, the inner panel bears various accessories and ensures strength, and the impact bar protects passengers during side collisions.
Functional accessories: window glass, window regulator (motor and guide rail), door lock assembly (lock core, connecting rod, electromagnetic actuator), door hinge, door stopper, sealing strip, door handle (outer handle and inner handle), wiring harness, and rearview mirror (if installed on the door).
Interior part: door interior panel, handrail, storage compartment, speaker cover, etc., decorative and functional components.
There is a confusing point: if only the "door shell" is replaced during maintenance, it is only replacing the outer layer of metal shell, while the core components such as the impact bar, door lock, and regulator will be retained and reinstalled, which is not the same as replacing the entire door assembly.
The left rear door assembly is mainly responsible for several core functions such as passengers getting in and out of the car, side collision protection, window raising and lowering, door lock control, and sound insulation and waterproofing. It is a key assembly in the vehicle body side panel that balances safety and comfort.
Specifically, the division of responsibilities for each main component is as follows:
Structure and safety
Door shell and impact bar: made of high-strength steel sheet, the inner side usually installs an impact bar, which absorbs energy and protects passengers during side collisions.
Door hinge and stopper: connects the door to the vehicle body, allowing the door to open and close smoothly and maintaining the open position; the hinge undergoes durability tests and can withstand tens of thousands of opening and closing cycles.
Function and comfort
Window regulator: controls the window raising and lowering; modern models generally have anti-collision function, and some adopt a double-guide rail design for smoother operation.
Door lock assembly and switch: responsible for locking and unlocking the door, supporting centralized control from the center console and remote commands; the left rear door lock is usually driven by an independent motor and is managed by the door control module.
Sealing strip: blocks wind and reduces wind noise and road noise, and also serves as a dust-proof function.
Interior and convenience
Door panel interior components: including trim, handrail, storage compartment, and speaker cover, balancing aesthetics, ergonomic design, and energy absorption protection during side collisions.
Inside and outside door handles: the outer handle is convenient for people outside the car to open the door, and the inner handle is for passengers inside the car.
If the left rear door fails to lock, the glass does not move smoothly, or the closing is not tight, usually the first step is to check if the lock block motor, regulator guide rail, or sealing strip is aged or deformed.
Common faults of the left rear door usually concentrate on the components of the lock block, child lock, hinge, and sealing strip. Check them in the order of "simple first, then complex" to solve most problems by yourself.
First, check these three areas yourself.
Child lock mistakenly activated: The most common and easiest to solve. Open the door from the outside and see if there is a lever or knob on the side of the door lock (usually marked "LOCK"), and turn it back to the unlock position. When the child lock is activated, it is manifested as "the car cannot be opened inside, but can be opened from outside".
Remote key or central lock malfunction: If the left rear door does not respond when the unlock button is pressed, but other doors are normal, try using a mechanical key first. If it can be opened, it is likely a problem with the key battery (common model CR2032), replace it; or it could be a problem with the electronic actuator or wiring of the door lock block.
Mechanical jam or abnormal noise of the door: Difficulty in opening, "clicking" sound, or not closing tightly. Focus on checking if the hinge is loose, rusty, or lacking lubrication, and if the sealing strip is aged or deformed. Apply some special lubricating grease to the hinge and use a rubber maintenance agent on the sealing strip. Usually, this can alleviate the problem.
When Lanie touched the handle, it felt extremely light and without resistance. This might be due to the detachment or fracture of the pull cord. It is necessary to remove the door panel for inspection.
The door can be locked but does not close tightly, or it feels shaky during movement. This might be caused by the deformation of the hinges or the misalignment of the lock mechanism. Do not forcefully twist it yourself; let the technician use equipment to calibrate it.
Never spray engine oil or WD-40 randomly into the door gap. This can easily contaminate the interior, accelerate the aging of the rubber, and potentially attract dust, making the situation worse. If the door suddenly pops open during driving, stop immediately for inspection. This is a safety hazard.
If the problem persists after self-checking, it is best to take photos or record videos of the fault state when going to the repair shop. This can help the technician quickly identify the problem.
