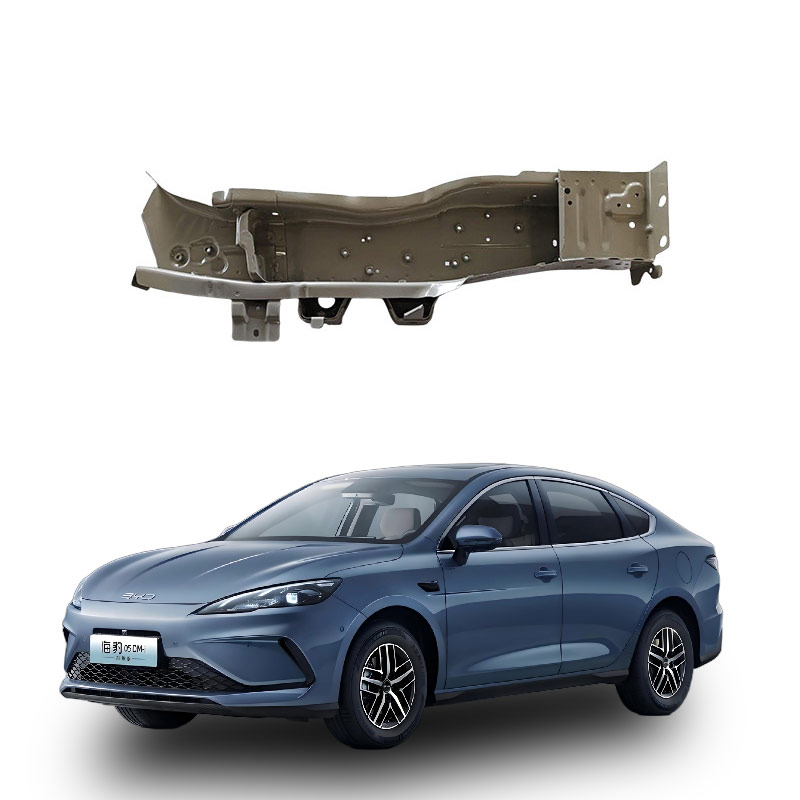

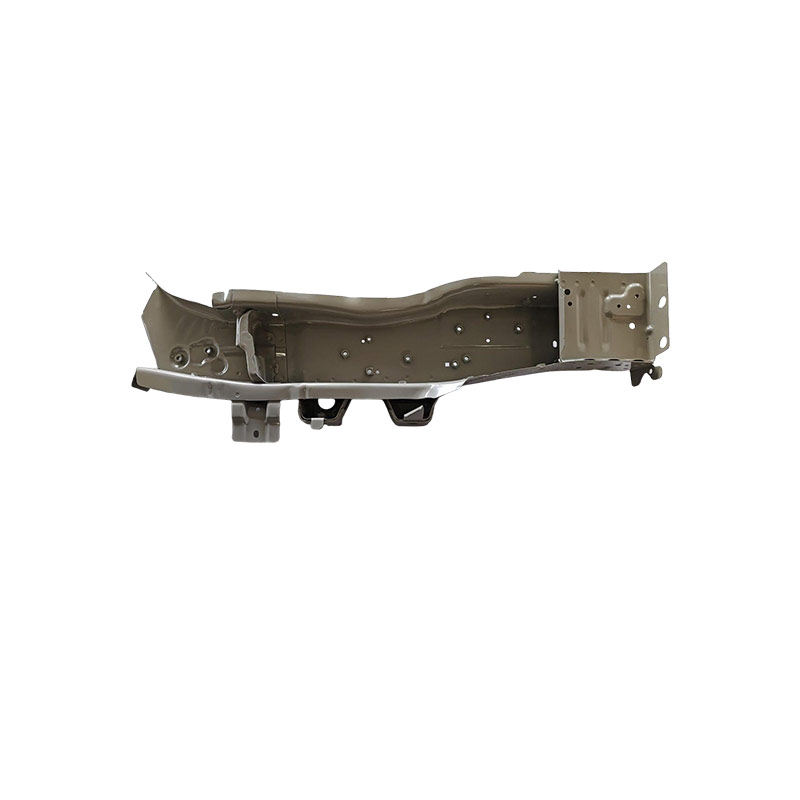

What are the front components of the left front longitudinal beam of the car?
The core component of the left front longitudinal beam of a car is the energy absorption box, which is located between the front bumper beam and the longitudinal beam. During a collision, it collapses and deforms to absorb energy, protecting the longitudinal beam and the passenger compartment.
The function of the energy absorption box is as follows:
At low-speed collisions, it deforms first to absorb energy, preventing the impact force from directly reaching the longitudinal beam, thereby reducing maintenance costs; at high-speed collisions, it collapses in a pre-set path in an orderly manner, transferring the energy backward and dispersing it.
The related structural components include the front bumper beam, connection flange, crush-inducing groove, etc. in the front part of the entire left longitudinal beam. Some models also have pedestrian protection steel beams.
The function of the left front longitudinal beam component of the car is to absorb energy through collapse deformation during a collision and support the front structure of the vehicle.
Specifically, this component works in coordination to form a multi-level protection system:
Load-bearing and support: The left front longitudinal beam is the core load-bearing structure of the vehicle's front part, providing rigid support for the powertrain in the engine compartment and forming a complete force-bearing framework with the front crossbeam and wheel arches, ensuring the rigidity and stability of the vehicle during normal driving.
Crush and energy absorption: In a severe frontal collision, the longitudinal beam will collapse in a pre-set path, folding like a harp, absorbing most of the impact energy and preventing the passenger compartment from being overly compressed.
Transmission and dispersion: While the longitudinal beam collapses, the remaining impact force is transmitted and dispersed throughout the entire vehicle, allowing the entire vehicle to bear the impact together, thereby protecting the safety of the passengers inside.
In addition, the front part of the longitudinal beam is connected with other key components, with clear divisions of labor:
Collision steel beam: Located at the very front of the longitudinal beam, it is the first line of defense during a collision, protecting components such as the water tank.
Energy absorption box: Connecting the front bumper beam and the longitudinal beam, it collapses first in low-speed collisions, protecting the longitudinal beam itself from damage, and it is also detachable and replaceable, significantly reducing maintenance costs.
If the left front longitudinal beam component of the car is faulty, the core impact is on the vehicle's structural safety and handling stability, and it is usually classified as an accident vehicle. The longitudinal beam is the most important load-bearing component of the vehicle, and if it is damaged and deformed, even if repaired, it is difficult to restore the original factory strength.
First, assess the extent of the damage, then decide on the repair plan:
Damage assessment
Minor damage (indentation, slight bending): It can be restored by stretching with a beam correction instrument, and the impact is relatively small, allowing normal use.
Moderate damage (deformation exceeding 3mm, wrinkles): The structural strength has significantly decreased, and after repair, there is still stress, which may cause deviation, abnormal noise, tire wear unevenly, etc.
Severe damage (cutting, welding, fracture): After repair, the rigidity is significantly reduced, and the safety factor will significantly decrease in a subsequent collision, resulting in significant depreciation and, in severe cases, may be recommended for scrapping.
Repair suggestions
First, conduct professional inspection: Lift the vehicle and inspect the deformation amount of the longitudinal beam, weld points, and paint film thickness. It is best to use laser three-dimensional scanning to confirm whether the deformation is within the ±1.5mm safe range.
Choose a regular repair channel: Repair requires specialized beam correction instruments and standardized welding processes. After repair, the geometric parameters of the suspension should be re-measured; otherwise, the vehicle may deviate, wear tires unevenly.
Evaluate whether repair is worthwhile: If the repair cost is close to the replacement cost or the vehicle's value is not high, it may be necessary to consider scrapping or replacement.
