What is the rear door limiter component of the car?

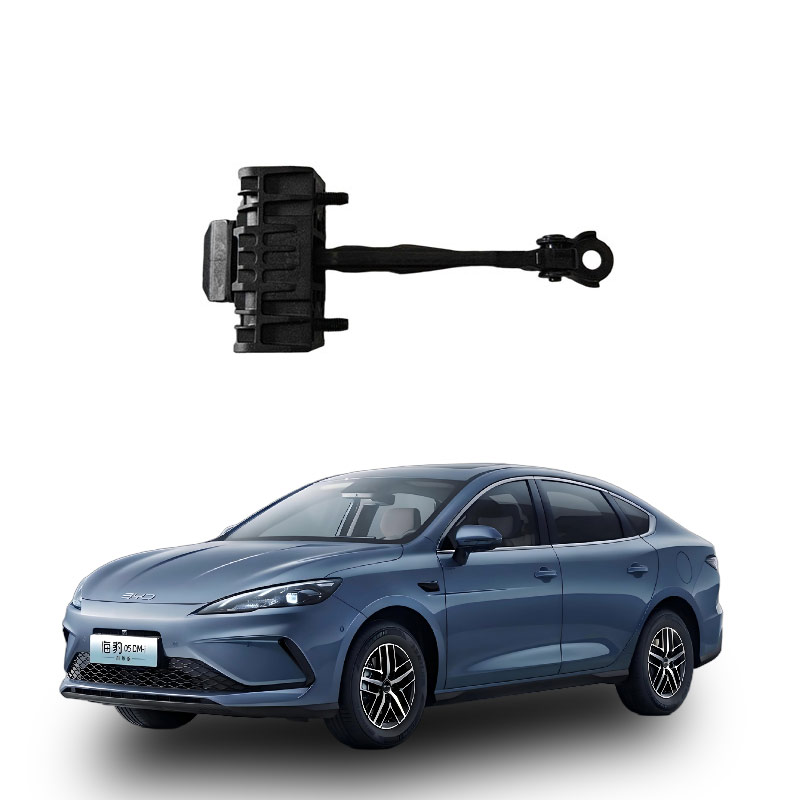

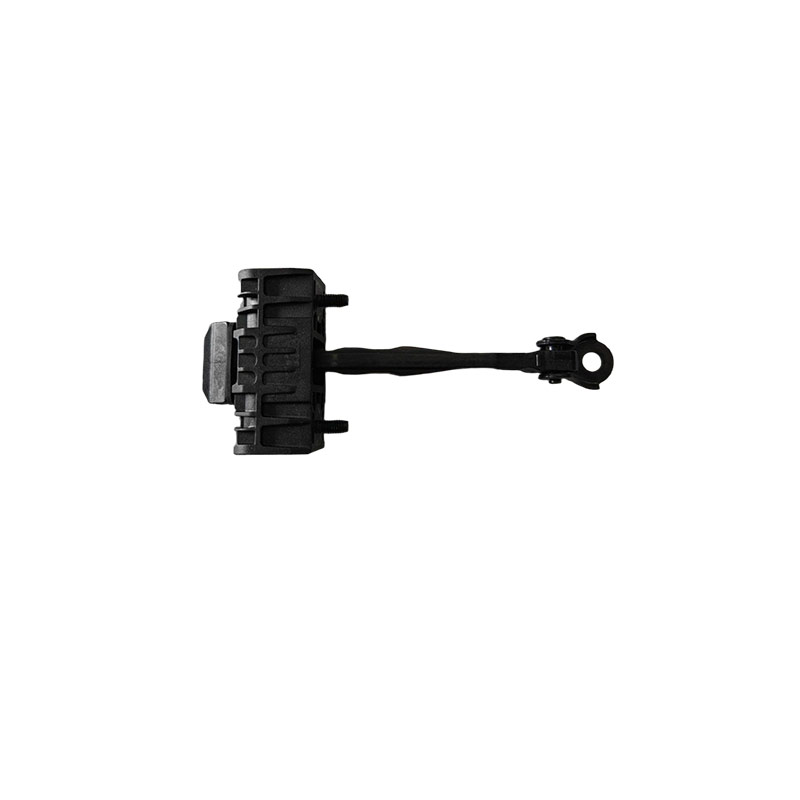

The rear door limiter assembly is essentially a mechanical device that controls the extent to which the rear door can open and keeps the door in place when necessary. It limits the maximum opening angle of the door to prevent it from opening too far and hitting the vehicle body; at the same time, it keeps the door at a certain position on slopes or when it's windy, preventing it from closing automatically. The core components typically include the limiter box, limiter arm (rod), internal spring or rubber block, etc. When opening and closing the door, the high and low structure on the limiter arm causes the elastic element to undergo different deformations, thereby forming "gear position sensations" at several fixed angles, which is the pause position you feel when opening the door.
Common types:
- Rubber spring type (box type/lever type): The most common in domestic cars, with a simple structure and low cost, usually having two or three gears, and the maximum opening angle is typically less than 70 degrees.
- Spring type: Integrated with the hinge, mostly used in European models, with low noise and long lifespan, but a complex structure and high maintenance cost.
- Electronic type/hydraulic type: Emerging types, achieving more precise opening angle control through motors or hydraulics, commonly seen in high-end or intelligent models.
The rear door limiter is similar to the front door principle, but due to different requirements for the opening angle and usage frequency, there will be some differences in the gear design and installation position. If the door cannot stop at a certain angle, there is abnormal noise or a "loose feeling" when opening and closing, or the door automatically closes at a certain angle, it is likely that the limiter is worn or aged. It is recommended to have it checked and replaced at a professional repair point.
The main function of the rear door limiter assembly is to limit the maximum opening angle of the rear door and keep the door fixed at a specific angle, preventing the door from opening too wide and scraping against the adjacent vehicle or wall, and avoiding the door automatically closing and catching people on slopes or in windy conditions. Specifically, it has several practical functions:
- Preventing injuries: Especially in households with elderly or children, the limiter can keep the rear door steadily at a half-open position, preventing it from suddenly closing and injuring people.
- Protecting the vehicle body: Limiting the maximum opening angle prevents heavy opening from hitting nearby obstacles and also reduces the impact force when closing, protecting the hinges and other components.
- Convenient loading and unloading: When parking, loading goods, or transporting passengers, there is no need to worry about the door closing automatically, making the operation more convenient.
- Multi-gear positioning: Some models have multi-gear design for the limiter, with a distinct damping sensation when opening, allowing precise positioning at the required angle.
When the rear door limiter malfunctions, the most common manifestations are difficulty in opening and closing, abnormal "clicking" or "creaking" sounds, or the door not stopping at a certain angle and automatically closing. This is basically a signal that the limiter needs maintenance or replacement.
Fault manifestations:
- Abnormal opening and closing feel: Difficulty opening or closing, or the door automatically closes halfway, unclear limiter gear position.
- Abnormal opening and closing sounds: "Creaking" or "clicking" sounds when opening and closing the door, mostly due to wear and fatigue of the limiter caused by lack of lubrication.
- Door cannot be fixed: The door automatically closes on slopes or in windy conditions, or the opening angle is too large and cannot be stopped, which is very dangerous during driving.
Solution method
First, try lubrication: If the abnormal noise or jamming is caused by insufficient oil, applying some grease or lubricant to the limiter at a repair shop or 4S store usually resolves the issue. It's also simple to do it yourself.
Then, check the fixation: If the abnormal noise persists after lubrication, check if the fixing screws of the limiter are loose. Loosen them, switch the door several times on and off, and then tighten them. Sometimes, this can solve the problem of assembly deviation.
Replace if broken: If the limiter itself breaks, gets stuck, or completely loses its resistance, it must be replaced immediately. Don't try to make do.
Risk Warning
The failure of the rear door limiter will affect driving safety. The door may accidentally open during driving. If you find a fault, it is recommended to repair it as soon as possible and do not delay.
Whether to replace individually or in pairs: The limiter is an independent component. If it breaks alone, replace it separately. There is no need to replace in pairs.
When removing the door panel, be careful not to damage the clips and wiring connectors. Remember to apply some grease for lubrication to the new part before reinstalling.
