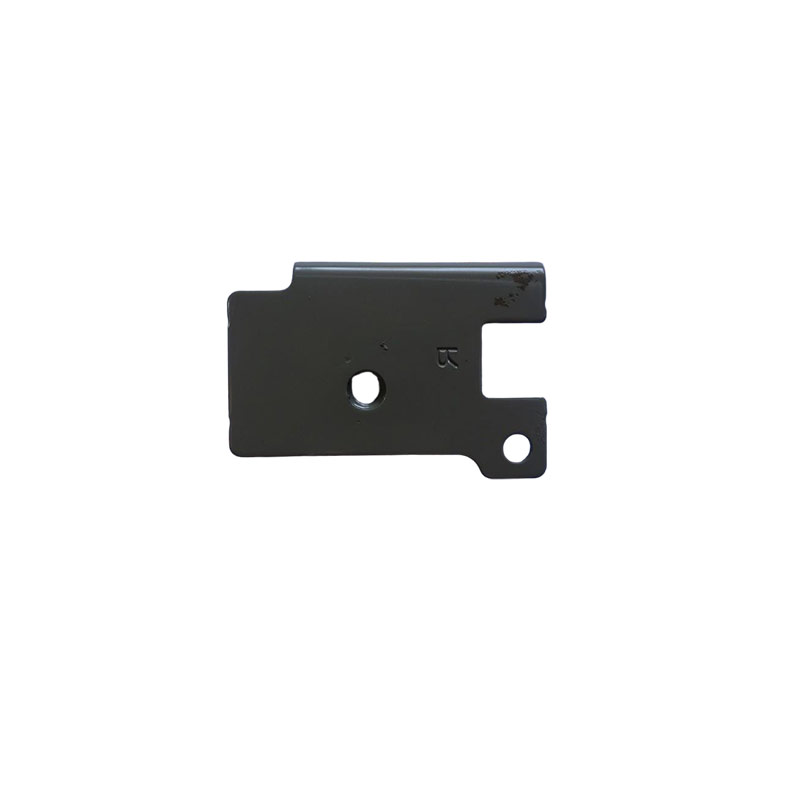

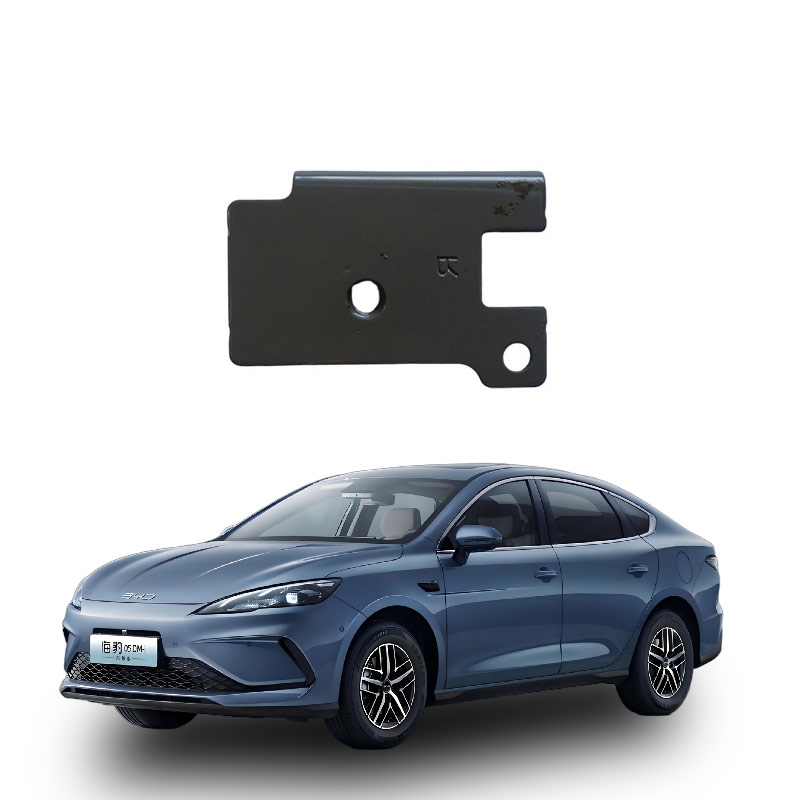

What is the positioning block on the right side of the front module of the car?
The component you asked about - the right-side positioning block of the vehicle's front module - is a positioning part used during vehicle assembly to ensure that the front module (which consists of the front bumper, headlights, grille, etc.) is accurately aligned with the vehicle body. It is not the counterweight weight block on the wheels.
Specifically, its function and working principle are as follows:
- Functional positioning: It acts as an "installation reference point". The front module is large in size and has many components. If there is a deviation in position during assembly, the gaps and seams of the front end will not be uniform. The right-side positioning block is used to engage or align with the positioning holes or pins on the vehicle body (such as the end cover of the front longitudinal beam or the inner side of the fender support), ensuring that the module is installed in the standard position in all directions.
- Structural form: It is not a standard part. Common examples include a positioning plate welded to the end cover of the front longitudinal beam, or a bracket with positioning holes. During production and assembly, it is used in conjunction with positioning pins. Some designs also allow for minor adjustments to correct the errors in the parts themselves.
- It is not the same as the "wheel hub weight block" you might have seen: The "front wheel positioning block" mentioned online refers to a small lead weight block placed inside the wheel hub to achieve wheel dynamic balance, preventing the steering wheel from shaking at high speeds, which is completely different from the vehicle assembly positioning.
The core function of the right-side positioning block of the vehicle's front module is to accurately fix the front module to the pre-set position of the vehicle body during assembly, ensuring that the gaps and tolerances of the entire front end after assembly meet the standards, rather than being used for dynamic balance like the weight blocks on the tires.
Specifically, this positioning block is responsible for three things:
- Ensuring installation accuracy: The front module contains a variety of components such as the bumper, headlights, grille, etc. Without the positioning block during assembly, it is difficult to align them. It can lock the relative position of the module and the vehicle longitudinal beam and fender, ensuring that the gaps and unevenness of the front end are uniform and not skewed, meeting the gap and tolerance requirements of the entire vehicle's appearance.
- Bearing assembly force and correcting errors: During assembly, the front module assembly needs to be pushed onto the vehicle body. The positioning block can withstand the pushing force and impact during positioning, preventing the parts from deforming. At the same time, the two front longitudinal beams themselves may have manufacturing position errors, and the right-side positioning block can cooperate with the auxiliary positioning plate to correct this error, avoiding the entire front end from tilting to one side after installation.
- Improving assembly efficiency: With the positioning block, the mechanical hand or manual installation can quickly "align" without repeated fine-tuning, making the installation more convenient and stable.
It is important to note that the "positioning block" mentioned in the materials refers to the structural positioning parts for the front module during assembly, and is completely different from the "weight block" used for balancing on the wheels. Do not confuse them.
The most common issue with the right-side positioning block of the vehicle's front module is assembly positioning deviation or loosening of the fixation structure. It is recommended to prioritize checking the positioning pins, installation hole positions, and the tightness of the brackets rather than directly replacing the entire module.
The front module itself is a complete assembly component that includes active air intake grilles, radiators, cooling fans, etc. The function of the positioning block is to ensure the precise relative position between it and the vehicle frame, fender, and headlights.
Visual inspection: Open the hood and check if the positioning block on the right side is broken, deformed, or shifted. Also, check if there are any scratches on the front bumper. Minor collisions often cause the positioning block to shift.
Tightening test: Press around the positioning block to confirm if it is loose; if it is loose, re-tighten the bolts and observe if the gap returns to be uniform.
Read fault codes: If there is a fault light on the dashboard (such as parking assistance or airbag alarm), it is necessary to go to the repair shop and use a computer to read the fault code to determine if it is a mechanical problem or an electronic problem.
Assembly verification: If the gap is obviously uneven, it is necessary to go to the 4S store and use special tools to re-check the installation position to avoid secondary deformation caused by manual force bending.
Important reminder
If the positioning block failure occurs after a collision, even if the appearance is fine, the internal bracket may have deformed. It is recommended to go to the 4S store for a front-end assembly accuracy test.
Positioning block failure generally does not affect the driving safety system. However, if accompanied by airbag or brake light alarms, do not delay and repair it as soon as possible.
