What is the AC charging port cover assembly for the car?

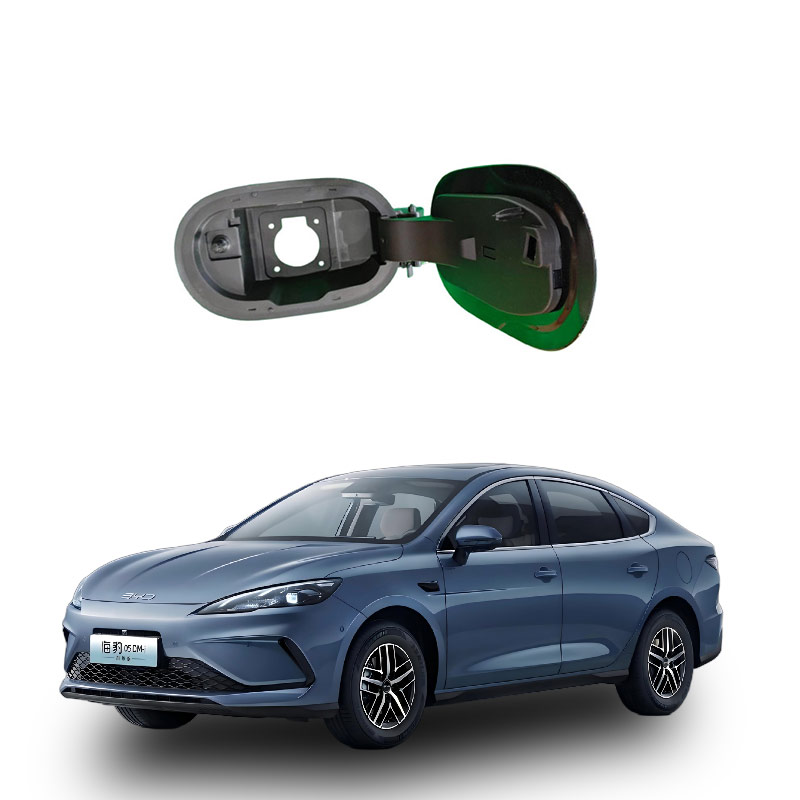

The AC charging port cover assembly for automobiles is simply the cover and its connection structure outside the AC slow charging port of new energy vehicles. It is not just a "small cover", but a complete assembly consisting of a base, an outer cover plate, and a connection mechanism.
Specifically:
- Position and Function: It is located on the side panel of the vehicle, corresponding to the AC charging port (also known as the slow charging port, usually with 7 holes). Its main function is to protect the charging interface, prevent dust, water, and foreign objects, and maintain the smooth appearance of the vehicle body.

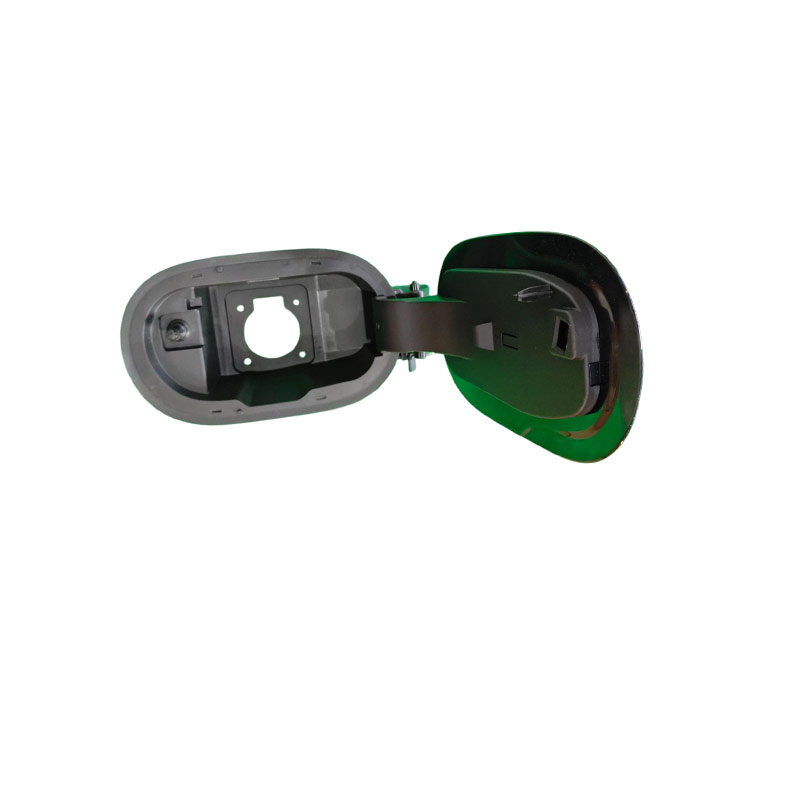

- Basic Composition: Usually, it consists of a base (fixed to the vehicle body) and an outer cover plate (hinged to the base, which can open and close). When the cover plate is closed, the surface will be flush with the exterior trim of the vehicle body, ensuring a good appearance.
- Several Common Detail Designs:
- Anti-leakage: Many original cover plates have silicone sealing rings inside, which achieve dust and water resistance through "deformation fitting + material barrier". This can protect the interface during rainy days or when washing the vehicle.
- Anti-scratch: Some models (such as Zeke 001) have claws on the inner side of the slow charging port and fast charging port covers. During charging, the unused cover can be hung on another cover to prevent it from drooping and scratching the car paint.
- Opening Mechanism: Some models' charging port covers have electric or drive mechanisms (such as a patent from Ningbo Hua De, which can achieve ice-breaking opening), or they integrate shock absorption and noise reduction designs (such as related patents from BYD), providing a better opening and closing experience.
Additionally, a confusing minor point: The AC charging port (AC) and DC charging port (DC) have different structures. The AC slow charging port usually has 7 holes, while the DC fast charging port usually has 9 holes. The interface standards of the two are different, and they cannot be used interchangeably.
The core function of the AC charging port cover assembly for automobiles is to protect the AC slow charging interface, preventing dust, water vapor, and foreign objects from entering, and ensuring safe and stable charging. It performs the following tasks:
- Dust and Water Resistance: This is the main function. The charging port is exposed to the outside for a long time, and if dust or sand enters, it will form an insulating layer on the metal contacts, causing poor charging contact, interruption, or even damage to the equipment; during rainy days or when washing the vehicle, water vapor can also penetrate, potentially causing a short circuit.
- Preventing Foreign Object Insertion: In public places such as parking lots, it can effectively prevent foreign objects from accidentally inserting into the charging port, avoiding damage to the interface and potential safety accidents.
- Auxiliary Opening and Closing and Interlocking: The charging guard cover has an opening and closing function. When the vehicle is unlocked, it can be opened by pressing the charging button; when the plug is unplugged or the lock button is manually pressed, it will automatically close, or it can be closed manually.
In simple terms, the AC charging port is the slow charging port (usually with 7 holes), and it is connected to the household socket or AC charging station, and the on-board charger (OBC) in the vehicle will convert the AC power to DC power to charge the battery; while the DC fast charging port (9 holes) has the conversion process placed outside the charging station, with higher power and faster speed. This cover assembly ensures that the AC charging port remains clean, dry, and safe during long-term use.
When the AC charging port cover assembly malfunctions, it usually manifests as inability to open, close, or lock, and is mostly related to mechanical jamming, electronic lock failure, or abnormal control signals.
Common Causes:
- Mechanical Locking Abnormality: The electronic lock will lock when the vehicle is not unlocked, and direct pressing cannot trigger it; or the charging port switch in the driver's seat is faulty or operated incorrectly, resulting in no unlock signal.
- External Environmental Influence: The contact area of the charging port is prone to freezing in winter, or low temperatures cause the pull wire to contract and form burrs, increasing the pulling resistance.
- Hardware Aging/Damage: The pull wire has been used for a long time and has elongated, losing elasticity, causing the lock mechanism to be worn and deformed, resulting in jamming, such as in a Model 3 with a worn metal lock mechanism after five years of use.
Solution Steps (Try in Order):
Basic operation: Confirm that the vehicle is unlocked, then press the edge of the charging port cover again; check whether the charging port switch on the driver's dashboard is in the "on" position and operate it.
Emergency unlocking: Open the trunk, find the electric lock lever (red pull ring) near the left and right inner lining panels and manually unlock it; if there is no obvious marking, gently pull the emergency pull wire along the gap to avoid forcibly breaking it.
Mechanical intervention: Remove the screws of the engine hood cover, lift the mesh positioning pull wire to pull the crossbar to trigger the unlock; or insert a short-handle Phillips screwdriver into the bottom of the cover and the lock catch to slowly pry and assist in removing the card; the operation should be cautious to prevent damage to the plastic parts.
Special handling: If it is caused by ice, use water not exceeding 100℃ to pour along the gap to thaw it and then gently pat it; for the stiff low-temperature pull wire, you can use a blow dryer on the low-temperature setting to heat it up to alleviate the stiffness.
Important Notice
Do not disassemble the high-voltage system by yourself. If the fault is accompanied by abnormal charging, alarm codes, or involves high-voltage components, stop charging immediately and contact the brand's professional after-sales service for handling. Non-professionals should not attempt to repair it themselves as it poses safety risks.
Daily maintenance: Check the charging port and its surroundings for dust, water stains, and corrosion of the metal terminals every month. Use a dry soft cloth to clean them. After charging, confirm that the cover is completely closed to prevent foreign objects from entering or water from freezing. When the sealing rubber ring becomes hardened and cracked, it is recommended to replace it periodically - every 2-3 years, especially in humid or dusty environments.
Within the warranty period: It is recommended to directly go to the 4S store for free repair; after the warranty expires, you can pay for repair at the 4S store or choose a professional auto repair shop to handle it.
