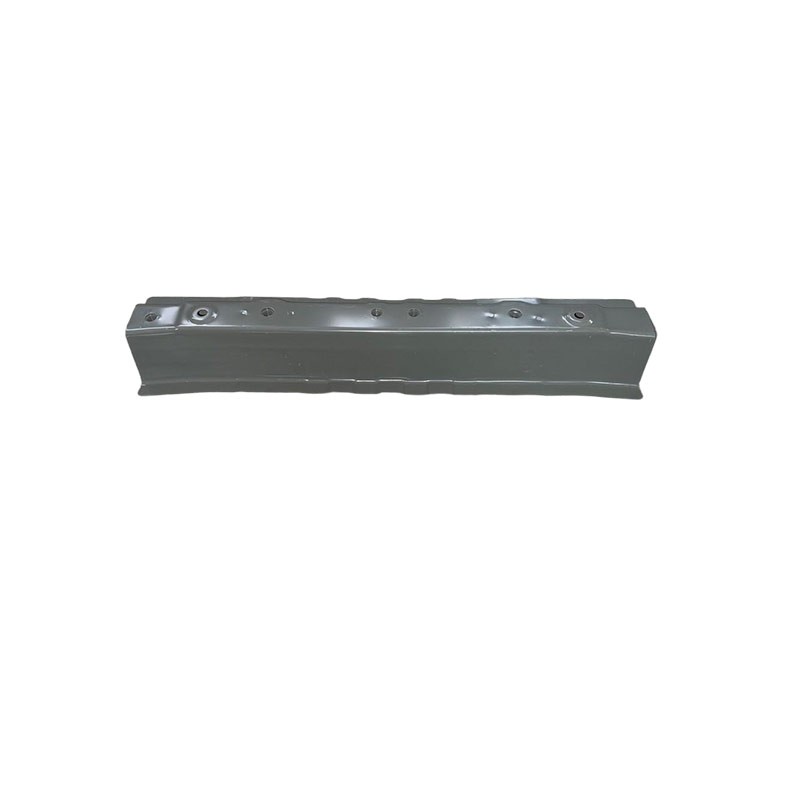

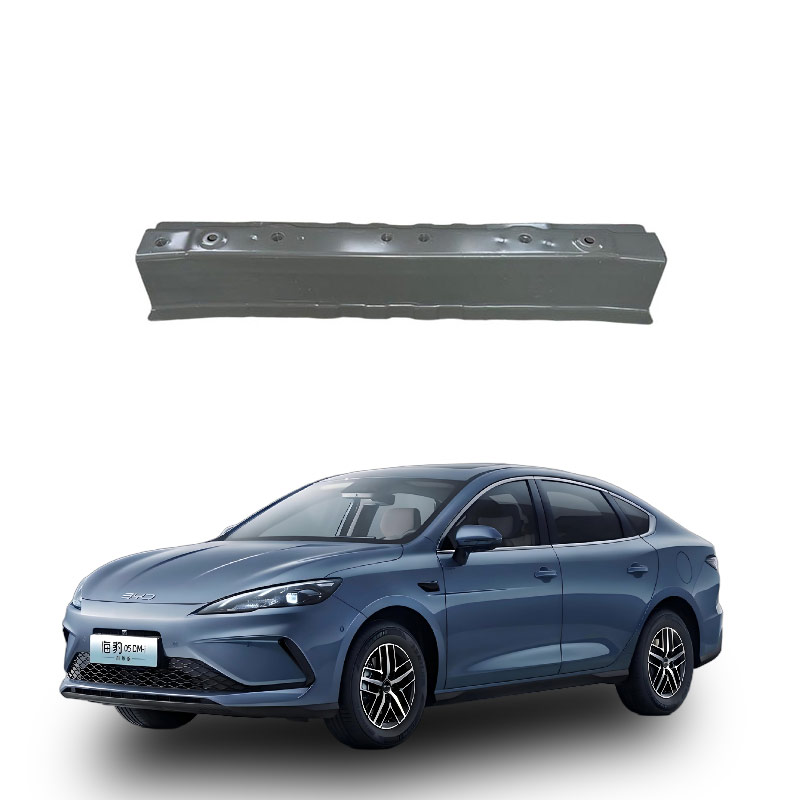

What is the rear floor crossbeam assembly of the car?
The rear floor rear crossbeam assembly is essentially a transverse reinforcing structural component installed in the rear floor area of the vehicle. Its main function is to connect the left and right sides, support the vehicle body, and enhance overall rigidity.
Specifically, it has the following characteristics:
Position and Function: It is part of the rear floor frame and spans the rear of the vehicle, connecting the longitudinal beams on both sides. It mainly supports the weight of the rear seats, spare tire, and fuel tank, and can disperse the impact force during rear collisions to protect the battery, fuel tank, and occupants.
Structure and Materials: Different vehicle models have significant variations in design. Commonly, it is made of stamped steel, but it can also be made of aluminum profiles or hot-formed steel. For example, in some patent designs, the crossbeam may incorporate multi-layer composite structures such as carbon fiber and polyamide fibers to enhance the connection strength; Great Wall Automobile's patent uses extruded aluminum profiles, ensuring strength while reducing weight.
Technical Trends: Many new models now integrate the rear floor crossbeam and rear floor longitudinal beam into a single die-cast component, such as the Zhijie V9, which integrates 78 parts of the rear floor into one, reducing weld points and enhancing overall integrity. NIO ES8 also extensively uses 2000MPa hot-formed steel at the rear floor crossbeam position to resist side collisions.
Additionally, some models may distinguish between "rear floor crossbeam" and "rear floor lower crossbeam assembly," with the latter often integrating components such as wire harness mounting components to fix wiring. The specific structure for repair or modification depends on your vehicle model.
The core function of the rear floor rear crossbeam assembly is to strengthen the rear structure's rigidity, enhance torsional resistance, and participate in the dispersion and transmission of impact forces during rear-end collisions, protecting critical components such as the passenger compartment, battery, and fuel tank.
Specifically, it performs the following key tasks:
Enhancing vehicle rigidity and torsional resistance: The rear floor crossbeam connects the longitudinal beams on both sides, effectively enhancing the overall torsional rigidity of the vehicle, reducing deformation during high-speed cornering or uneven road surfaces, and improving driving stability.
The key force transmission path for rear impact safety: In a rear-end collision, the crossbeam, along with the rear longitudinal beam and rear panel, forms the collision force transmission path, distributing the impact force throughout the vehicle structure to prevent local excessive deformation that could invade the passenger compartment and protect rear passengers as well as the high-voltage battery and fuel tank of the electric vehicle.
Support and installation foundation: The rear floor area is responsible for the installation of rear seats, rear suspension subframes, spring seats, and other components. The crossbeam provides necessary stiffness and strength support for these installation points.
Structural integrity and NVH: The rear crossbeam also participates in the formation of the rear floor frame assembly, contributing to the sealing performance of the vehicle and the control of noise, vibration, and harshness (NVH). Some advanced techniques (such as integrated die-casting) integrate multiple parts of the rear floor, further enhancing structural integrity and reducing weld points.
Faults in the rear floor rear crossbeam assembly typically refer to deformation, cracking, rust, or loose connections of the rear floor crossbeam, which directly affect the vehicle's rigidity and collision safety and require prompt handling.
Fault manifestations:
Driving abnormalities: The vehicle may exhibit steering deviation, body shaking, abnormal noises, more pronounced vibrations and noises at high speeds, and poorer braking and steering responses.
Structural hazards: The rear floor crossbeam is the load-bearing and force-transmitting structure of the vehicle. If damaged, it may exacerbate vehicle deformation and reduce the rear collision protection capability.
Common fault causes:
Collision or剐蹭 (scratching)： Rear-end impacts are the most common cause of deformation and cracking of the crossbeam.
Rust： Long-term immersion in water or scratches on the bottom can cause steel rust， weakening the structural strength.
Loose connections： Welding points or bolt connections between the crossbeam and longitudinal beams， or the floor， fail， causing abnormal sounds and a loose feeling.
Timely inspection: When suspecting a fault, promptly bring the vehicle to a professional repair shop or 4S store for lifting inspection to determine the extent of the damage.
Repair according to the degree of damage: Minor deformations or rust can be repaired; for severe deformations, cracking, or those affecting structural strength, it is recommended to replace directly. Simple correction may leave safety hazards.
Be cautious of the risks of used cars: If there are repair or welding marks on the crossbeam, it indicates that the vehicle may have experienced a major accident. When purchasing a used car, it is necessary to carefully check.
For specific repair plans and costs of the involved models, it is recommended to refer to the actual vehicle inspection results provided by the repair shop.
