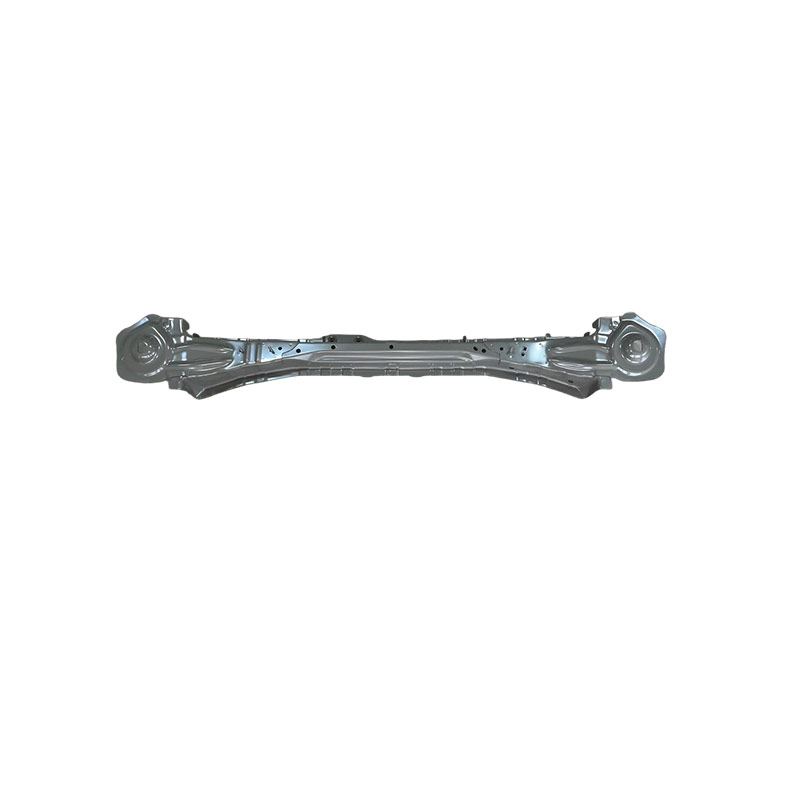

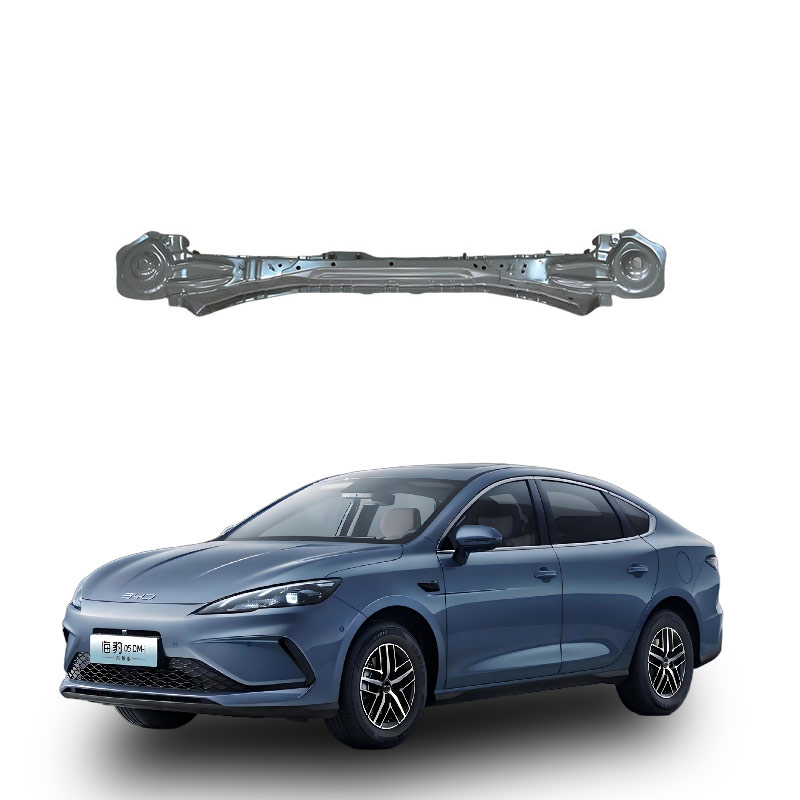

What is the rear crossbeam assembly of the car floor?
The rear crossbeam assembly of the car floor is essentially a horizontal load-bearing beam located at the rear of the vehicle's floor, mainly used to connect the left and right side panels or longitudinal beams, support the upper structure, and disperse impact forces during a collision. It is not a single component but is typically composed of outer panels, inner panels, reinforcement plates, and mounting brackets, etc.
Specifically, it can be understood from the following aspects:
Position and Structure
It is located in the rear floor area of the vehicle, horizontally arranged, connecting the left and right fenders or longitudinal beams. Common structures include the rear roof crossbeam (supporting the rear doors and roof) and the rear chassis crossbeam (such as the rear subframe crossbeam, rear impact beam). Typical components include outer panels, inner panels, reinforcement plates, and brackets, mostly made of stamped steel plates.
Core Functions
Load-bearing and torsional resistance: Ensuring the torsional stiffness of the frame, bearing longitudinal loads, and supporting components such as seats and trunk.
Collision safety: Working in conjunction with the rear longitudinal beam and impact beam to absorb energy during rear-end collisions and protect the passenger compartment, fuel tank, battery, and other critical components.
Installation and Support: Providing installation points for rear doors, seals, and roofs.
Maintenance Considerations
If damaged in an accident, it is not recommended to simply perform钣金 repair. The rear crossbeam is a structural component， and after repair， its strength is difficult to reach the original factory level. Professional equipment is required for correction， and in some cases， a complete replacement is necessary. Otherwise， it will affect the body rigidity and collision safety.
The rear crossbeam assembly of the car floor primarily fulfills two core functions： structural support and collision safety. It connects the left and right side panels of the vehicle and is a key horizontal component of the rear frame.
Specifically， its functions are mainly reflected in the following aspects：
Structural Support and Rigidity Assurance： It is the last horizontal beam of the vehicle's top structure， providing installation support points for rear doors， roof， and rear door seals， and ensuring the torsional stiffness of the frame and bearing longitudinal loads， making the vehicle more stable during operation.
Collision Safety and Energy Absorption： During a collision， it can disperse and absorb impact forces， preventing the collision energy from directly transmitting to the passenger compartment， protecting the occupants and key components such as the fuel tank and battery.
Connection and Load Transmission： It connects the left and right side panels of the vehicle and is connected to the rear floor longitudinal beam and rear subframe mounting parts， forming a complete load-bearing framework to effectively disperse various loads.
Additionally， depending on the specific design， it may also participate in forming a "crumple zone" body structure to enhance the protection of the trunk items at the rear of the vehicle.
If the rear crossbeam assembly of the car floor is faulty， it is necessary to first determine whether it is a vehicle structure component or a chassis structure component， as the judgment criteria and repair methods are completely different. Such faults are typically manifested as abnormal noises from the chassis， steering deviation， uneven tire wear， or abnormal vibrations in the interior.
First， determine the type of fault
Deformation/Damage (most common)： Often caused by collisions， bottoming out， or long-term overloading. Minor deformations may only affect the four-wheel alignment， while severe deformations will directly disrupt the load balance， causing steering deviation， tire wear， and even affecting handling stability.
Cracking/Breakage： This is a serious structural damage and must be immediately stopped for inspection. Hearing metal cracking sounds during driving should be particularly vigilant. Usually， a new part replacement is required， and it is not recommended to weld for repair.
Rust： Common in vehicles driven in humid or salt-alkali areas. Weld seams and load-bearing points are key inspection areas. When the rust area is large or perforated， the strength is no longer guaranteed， and replacement is necessary.
Maintenance Judgment and Suggestions
Not all crossbeam damages are considered accident vehicles： Only when the damage seriously affects the vehicle's performance and safety can it be classified as an accident vehicle.
Repairable or Replaceable： Minor deformations can be corrected through alignment， but severe deformation， cracks， fractures， or large-scale rust should be replaced directly. Do not attempt to repair for cost reasons. After repair， the rigidity will decrease， and the internal stress may cause subsequent fatigue and abnormal sounds.
After maintenance, positioning must be done: After replacement or repair, a four-wheel alignment and chassis calibration must be performed. Otherwise, it is very likely to cause deviation and uneven wear.
Specific action suggestions:
Go to a professional repair shop and lift the vehicle for inspection as soon as possible. Let the technician confirm the specific damage location and extent of the crossbeam.
If it is only a minor bump or deformation, you can try to repair it; if it is cracking, perforation or severe deformation, it is safer to replace the new part directly.
After maintenance, perform a four-wheel alignment and observe for a period of time to see if there are any abnormal noises or deviation.
The crossbeam component is a key structural part of the chassis that affects driving safety. It is not recommended to drive with a fault for a long time. Early handling is more reliable.
