What are the components of the vehicle's side stabilizer bar?
The core components of the car side stabilizer bar assembly include the stabilizer bar body, bushing, connecting rod (pull rod), clamping support, and fasteners. These components may vary depending on the vehicle model and structural design.
Main components

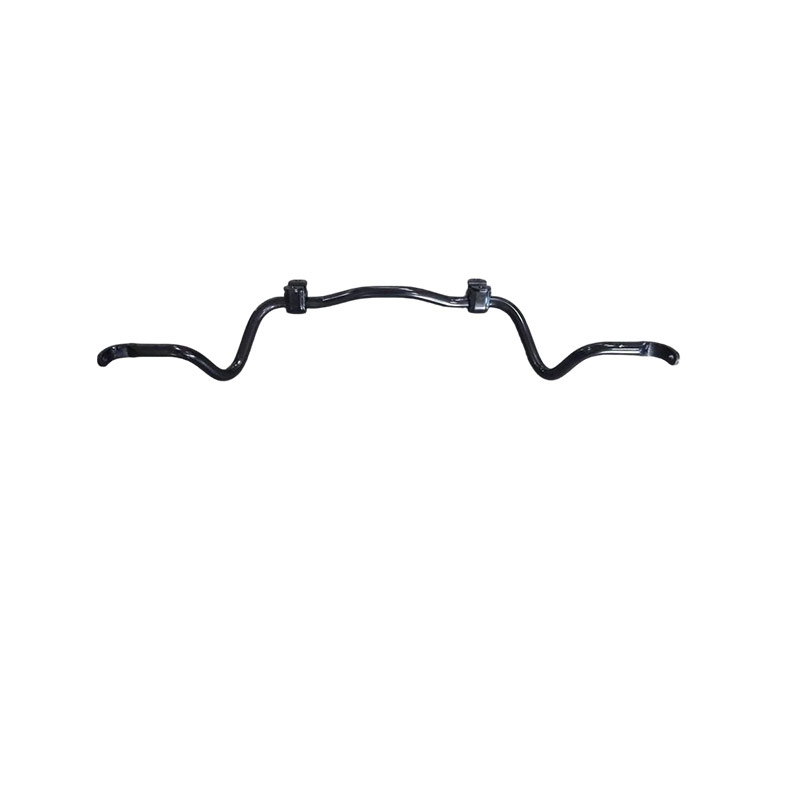

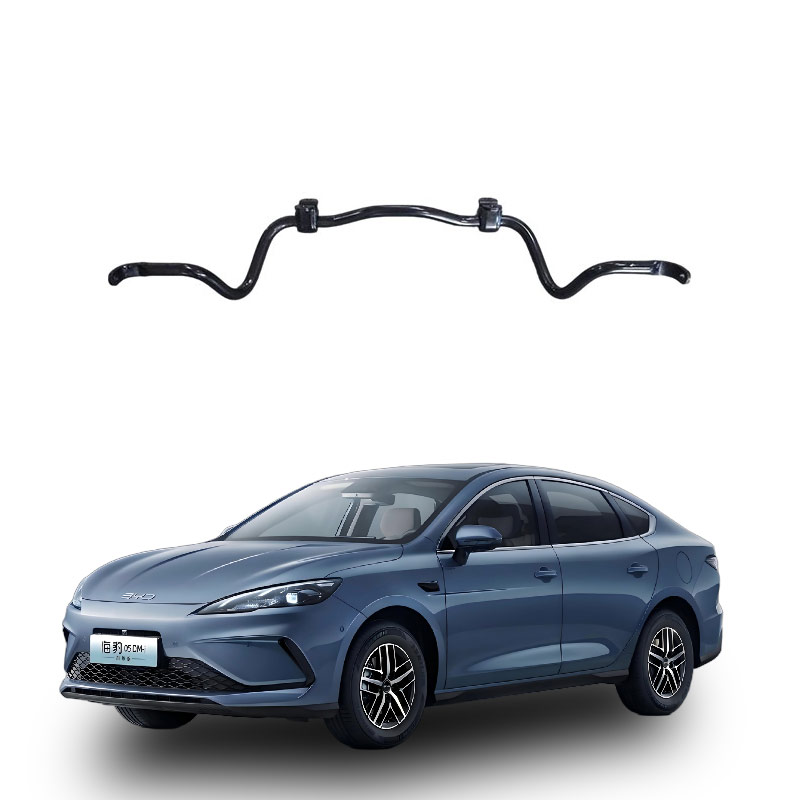

Stabilizer bar body: U-shaped torsion spring, which is the core elastic element, is placed horizontally on the front and rear suspension and resists vehicle side roll through torsion.
Bushing: Installed at the connection point between the bar body and the frame, it serves as a buffer, isolator, and noise reducer; there are two common processes: assembled type and vulcanized type.
Connecting rod (stabilizer bar connecting rod/bracket): One end is connected to the end of the stabilizer bar, and the other end is connected to the lower arm of the suspension or the shock absorber, transmitting torsional force.
Clamping support and rivets/bolts: The installation structure that fixes the stabilizer bar to the frame or sub-frame.
Additional details
Structural form: There are two types: solid bar and hollow tube. The hollow tube can reduce weight by approximately 50%.
Type distinction: There are original factory-installed balance bars, as well as later reinforced chassis balance bars; classified by control mode: passive and active.
Common materials: Mostly spring steel (such as 60Si2MnA, 50CrVE), aluminum-magnesium alloy, etc.
Note: The stabilizer bar is not necessarily more is better. Installing too many will cause the suspension on both sides to lose independence, and a single-side bump will be transmitted to the other side.
The core function of the car side stabilizer bar assembly (also called anti-roll bar or balance bar) is to suppress vehicle side roll, improve driving stability and handling performance.
Specifically, it functions in the following three scenarios:
During turns to prevent rollover: The centrifugal force generated during turns causes the vehicle to tilt outward. The stabilizer bar generates counter-torsional force through its own torsion, distributing the load on the suspension more evenly, significantly reducing the side roll angle and reducing the risk of rollover.
More stable during lane changes: During high-speed lane changes, it can accelerate the vehicle's response speed, reducing vehicle shaking and skidding, and making the lane change action more crisp and precise.
More comfortable on bumpy roads: When passing over potholes ， the stabilizer bar can coordinate the vibrations of the left and right wheels， reducing the lateral swaying of the vehicle.
It can also reduce abnormal tire wear and improve ride comfort.
It should be noted that the stabilizer bar is not "lifelong maintenance-free". The rubber sleeves at both ends of the stabilizer bar tend to age and crack over time， which may cause chassis noise or poor handling； the connecting rod may also break under extreme conditions， which will directly affect driving safety. It is recommended to check and replace it regularly.
Now some new models are using active stabilizer bars (such as the 800V fully active detachable stabilizer bar equipped in Huawei Xiangjie G9)， which can switch states according to the working conditions： in normal conditions， it is rigidly connected to prevent rollover， and in off-road conditions， it allows disconnection to increase suspension travel and improve off-road performance.
The side stabilizer bar assembly is damaged， and the most direct impact is a decrease in vehicle stability， larger side roll during turns， abnormal chassis noise when passing over uneven roads， and in severe cases， it will affect driving safety. It is recommended to check and replace it at a repair shop as soon as possible.
This assembly mainly consists of the stabilizer bar body， connecting rod (small pull rod)， and fixing rubber sleeves. The symptoms of damage to different components may vary：
Common fault phenomena
Chassis noise： When passing over， potholes， or when turning at low speed， a "clicking" or "groaning" sound is heard from the chassis. On smooth paved roads， it usually does not sound， and it is likely that the stabilizer bar rubber sleeve is aging or the connecting rod ball joint is loose.
Increased side roll during turns： During turns， it feels like the vehicle is "swinging out"， like sitting on a boat. During high-speed lane changes， the steering feels "drifting"， and frequent corrections are required. This is a typical manifestation of the failure of the stabilizer bar's anti-roll function.
Abnormal tire wear： Due to unstable vehicle posture， the tires may show unilateral wear or uneven wear， shortening the tire lifespan.
Deviation: Even though the car has undergone four-wheel alignment, it still veers to one side. This might be related to the loosening of the connection components of the stabilizer bar.
Special attention is needed:
Don't delay for too long: After the stabilizer bar component is damaged, the suspension system will endure additional impacts, which may accelerate the wear of components such as the lower arm rubber sleeve and shock absorber. The repair cost will increase the longer it is delayed.
High-speed risk is high: If the stabilizer bar breaks completely or the ball joint falls off while driving at high speed, the vehicle may experience a loss of control or a rollover risk, which is extremely dangerous.
Judgment method: Press down on one side of the car forcefully. If there is a "clicking" sound from the chassis, it is likely that the rubber sleeve is aging; if possible, lift the car up and shake the stabilizer bar connection rod with your hand. If there is obvious looseness, it should be replaced.
Maintenance suggestions:
Replace the connection rod: When the ball joint is loose or the dust cover is damaged, directly replace the new small connecting rod of the stabilizer bar. The parts are not expensive and the labor cost is not high.
Replace the rubber sleeve: If the rubber sleeve ages and deforms, it will be accompanied by abnormal sounds. It is best to replace it together with the connection rod to avoid repeated disassembly and assembly.
Overall inspection: When going to a professional repair shop, ask the technician to check the four-wheel alignment data, shock absorber, and lower arm for any accompanying damage.
