What is the left rear mounting bracket assembly installed on the front subframe of the car?
"The left rear mounting bracket assembly for the front sub-frame of the vehicle" is not a general standard part name. Instead, it is a specific description in the maintenance manual or parts catalogue of a certain vehicle model for the "fixed bracket/sleeve assembly used to connect the left rear side of the front sub-frame (sub-frame) to the vehicle body".
Sub-frame = Auxiliary Frame: The front sub-frame is the main load-bearing frame for suspension, steering and the front end of the powertrain, and is connected to the vehicle body longitudinal beam or firewall through multiple mounting points (usually the left front, right front, left rear, and right rear).

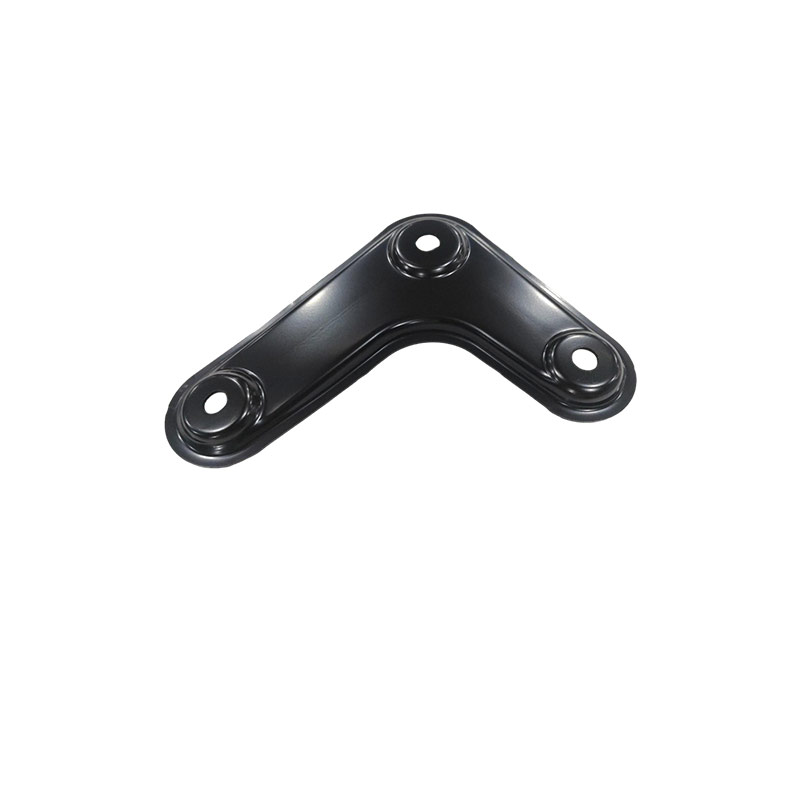

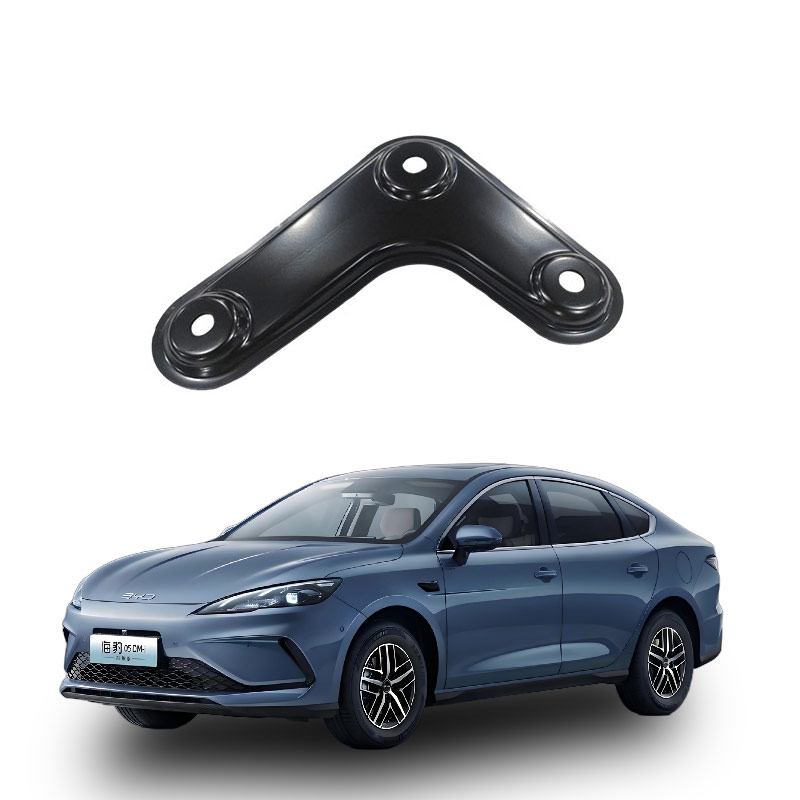

"Left rear mounting bracket assembly" in essence: Refers to the connection support assembly at the left rear corner of the auxiliary frame that is used to rigidly or elastically (with a sleeve) fix the auxiliary frame to the vehicle body. It may include:
Metal bracket body (stamped or cast)
Rubber/hydraulic sleeves (key components for vibration isolation)
Fasteners such as bolts, washers, etc. (for some models, they are one-time press-fitted)
Core function: Transmits suspension loads to the vehicle body, suppresses vibration and noise from entering the cabin, and maintains the positioning accuracy of the auxiliary frame; failure at this point is likely to cause abnormal noises in the chassis, incorrect four-wheel alignment, or abnormal steering.
Note:
The structural differences among different brands/models are significant (such as McPherson style vs double wishbone, monocoque vs non-monocoque), and there are no unified standard components;
During maintenance, it is necessary to query the original factory EPC (Electronic Parts Catalog) based on the VIN code to obtain the accurate part number and diagram, and direct purchase based on the location description is not allowed;
Common confusing items: non-bumper bracket (belonging to the support of exterior covering parts), non-pedestal (water tank frame, belonging to the front covering structure), non-engine suspension bracket (belonging to the powertrain suspension system).
Core function: This component is a key connection and positioning part between the front sub-frame (sub-vehicle frame) and the body longitudinal beam/front fender, specifically used to fix the left rear installation point of the sub-frame, ensuring that the suspension, steering and powertrain loads are accurately transmitted to the body, and achieving vibration isolation and noise suppression through rubber bushings.
Main function
Structural positioning and load-bearing
Precisely define the left rear position of the sub-frame to prevent displacement or torsion during driving, ensuring the stability of the front axle/suspension geometric parameters;
Share the longitudinal/ lateral forces from the engine, transmission and braking, avoiding stress concentration and damage to the vehicle body.
NVH optimization
Combined with elastic bushings (often integrated at the bracket or bolt holes), reduce road impact and high-frequency vibrations from the power source, improving the comfort of passengers;
Block the sound transmission path of the structure, reduce low-frequency rumbling inside the vehicle.
Collision safety assistance
In frontal offset collisions, guide part of the energy to be transferred along the preset path, avoiding the intrusion of the sub-frame into the passenger compartment (specifically depending on the overall vehicle collision design).
Notes for Attention
Non-standard parts: The positions, diameters, and bushing stiffness vary greatly depending on the vehicle platform, and they need to be matched with the original factory specifications according to the VIN;
Failure manifestations: Loosening or fracture will cause the steering wheel to shake, veer, and produce louder noises, and even affect the steering response;
Distinguishing concepts: Different from the bumper bracket (external covering piece support) or the engine foot (directly fixing the power unit), this part belongs to a "chassis structure connection node", and during maintenance, it is necessary to simultaneously check whether the sub-frame body has deformed.
Note: Some manufacturers supply "left rear mounting bracket" as a separate component of the sub-frame assembly. When replacing, it is recommended to perform the operation in pairs and carry out torque calibration and four-wheel alignment.
