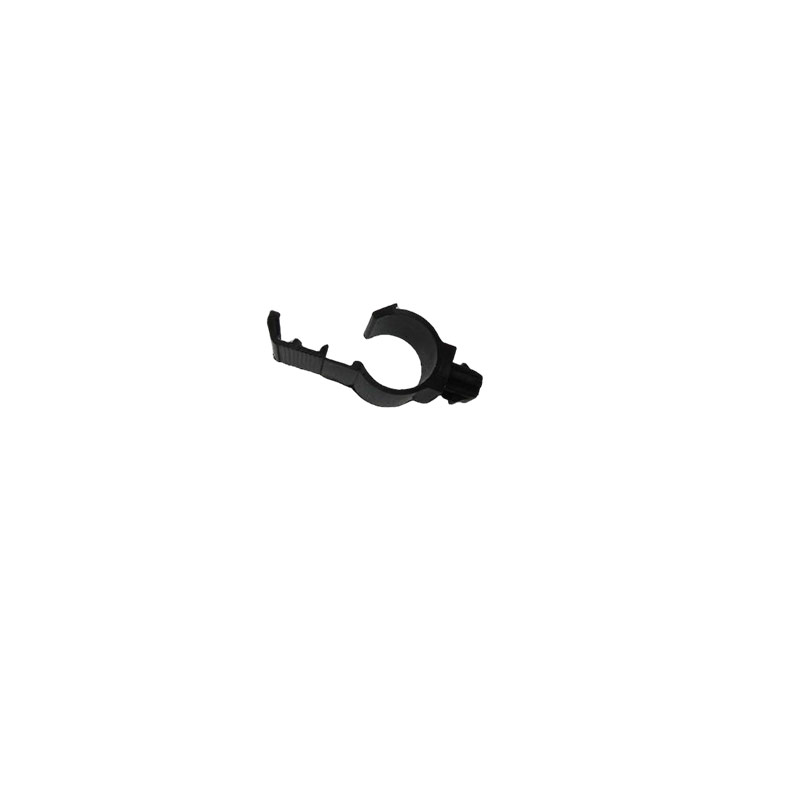

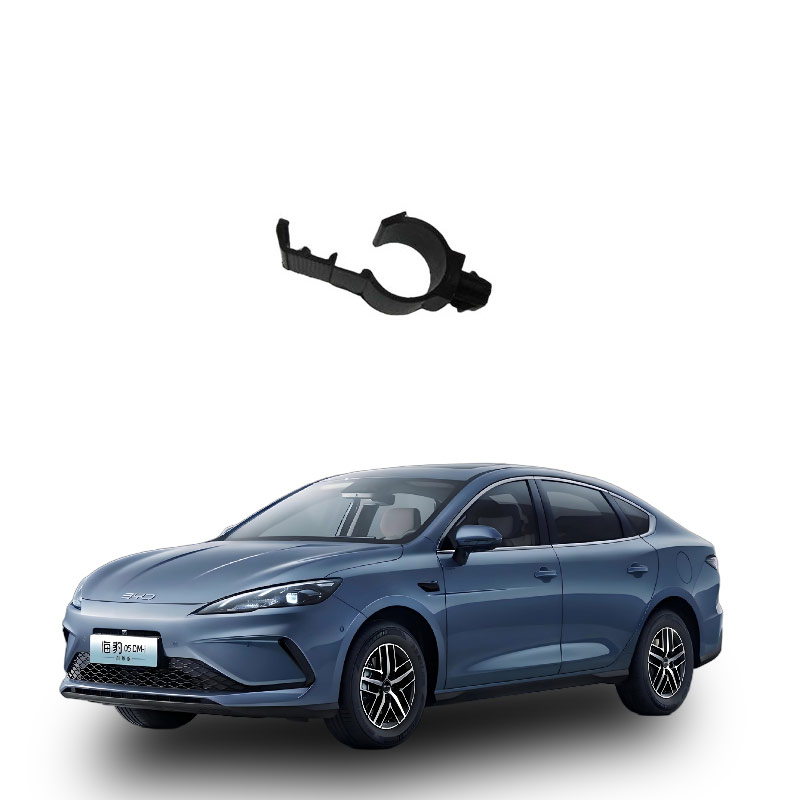

What is the car rear water pipe clamp?
The "rear water pipe clamp" of a car is not a standard term. It usually refers to two different components, which need to be distinguished based on their specific location and function:
If it refers to the fastening component at the rear end of the engine/cooling system's water pipe
It is essentially a water pipe clamp (throat clamp), not a plastic "clip", used to clamp the rubber hose and metal connector to prevent coolant leakage.
Common types:
Spring clamp (Japanese style): Made of 65Mn spring steel, it automatically compensates for thermal expansion and contraction, widely used in original factory cooling pipelines;
Screw-type throat clamp: Stainless steel band + bolt adjustment, convenient for maintenance and disassembly;
Note: Critical high-temperature and high-pressure areas (such as the cylinder block, radiator interface) must not use ordinary plastic clamps instead of metal clamps.
Position reference: Mostly located at the rear of the engine, near the firewall, connecting the radiator, heating water tank or turbocharger pipeline.
If the rear water gutter fixing piece of the car roof is mistakenly called a "rear water pipe clamp"
It is actually a vehicle drainage groove installation clamp (plastic material), its function is to fix the water guiding strip on the sheet metal, guiding the rainwater to drain, not involved in liquid transportation, unrelated to the cooling/oil circuit.
Such clamps are prone to aging and cause the water gutter to fall off and leak water into the cabin, but they belong to vehicle accessories, not power/thermal management components.
Usage Suggestions
Confirming the fault phenomenon: If there is coolant leakage or abnormal water temperature → Check if the metal clamps are loose or rusted;
If it is water seepage from the roof or tailgate area → Check if the plastic clips of the water drainage channels are broken;
When replacing, it is essential to match the original vehicle specifications (inner diameter, wall thickness, temperature resistance grade), and preferentially use OEM or compliant with QC/T 625 standard spring clamps.
Note: There is no clear national standard naming for "rear water pipe clamp", it is recommended to provide the vehicle model + the specific location of leakage/looseness, or consult the "Coolant Hose Clamp" illustration in the repair manual for positioning.
Core function: The "clamp" of the rear water pipe (usually referring to the pipeline at the rear end of the cooling system or heating system) is actually a type of fastener such as a clamp or pipe clamp. Its core function is to reliably lock the rubber hose and metal joint under high-temperature and vibration conditions, ensuring the sealing circulation of coolant and preventing leakage and pipeline detachment.
Key function description:
Sealing and leakage prevention: By uniformly radially clamping the sealing ring (such as EPDM rubber) between the hose and the joint, resisting the internal pressure of the cooling system (standard clamping force ≥ 25N·m at room temperature), to avoid coolant leakage under high-temperature and high-pressure conditions.
Anti-vibration and stability: Absorbing high-frequency vibrations from the engine and driving, preventing the hose from being worn, cracked, or the joint from loosening due to repeated friction and displacement.
Temperature resistance compatibility: Using materials such as stainless steel or high-temperature-resistant nylon, maintaining elasticity stability in the -40℃ to 120℃ cyclic conditions, avoiding loosening failure due to thermal expansion and contraction.
Safety redundancy: As the "last physical line of defense" of the cooling system, failure of the clamp can directly cause water temperature to soar, engine overheating, and even cylinder body deformation.
Notes for Attention
Term Differentiation: In a strict sense, "snap-in" usually refers to plastic tool-free connectors (used for interiors/liners); the critical pressure-bearing parts of water pipes actually use metal clamps (spring type, screw type, double steel wire type, etc.), which require special tools for installation and disassembly.
Risk Warning: Poor-quality or aged clamps are prone to loosening. Do not use iron wire as a substitute; when replacing, it is necessary to match the original factory specifications and test the sealing performance.
Specific Position: If "rear water pipe" refers to the liquid cooling circuit of the new energy battery, the snap-in of this part also needs to meet additional requirements such as insulation and resistance to electrolyte corrosion.
Note: In daily maintenance, clamps are often casually referred to as "clips/ snap-ins", but when it comes to the safety of the cooling system, it is necessary to confirm that they are the dedicated fastening devices in accordance with standards such as SAE J1684.
