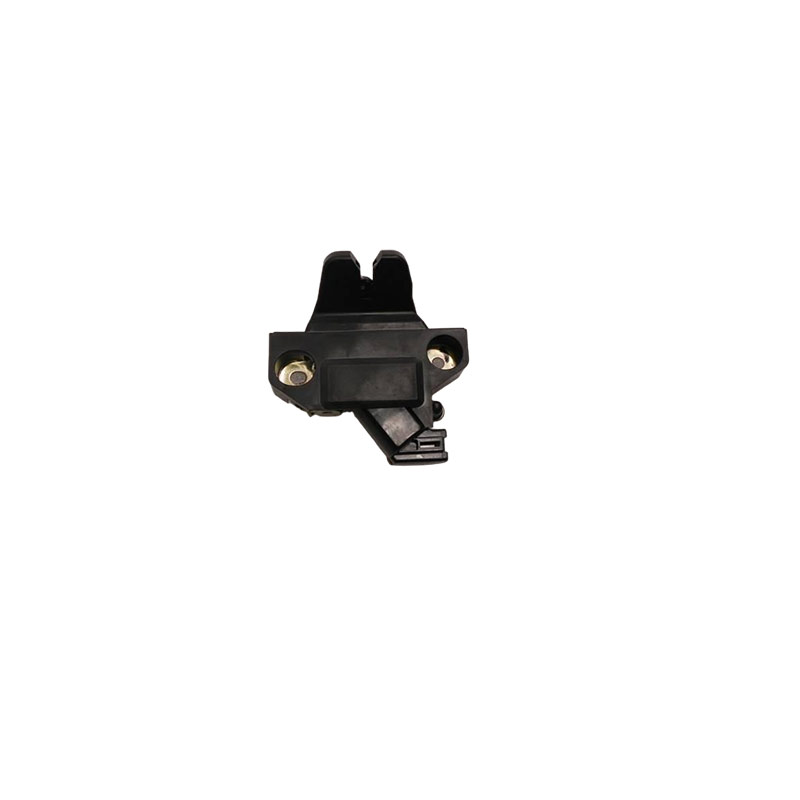

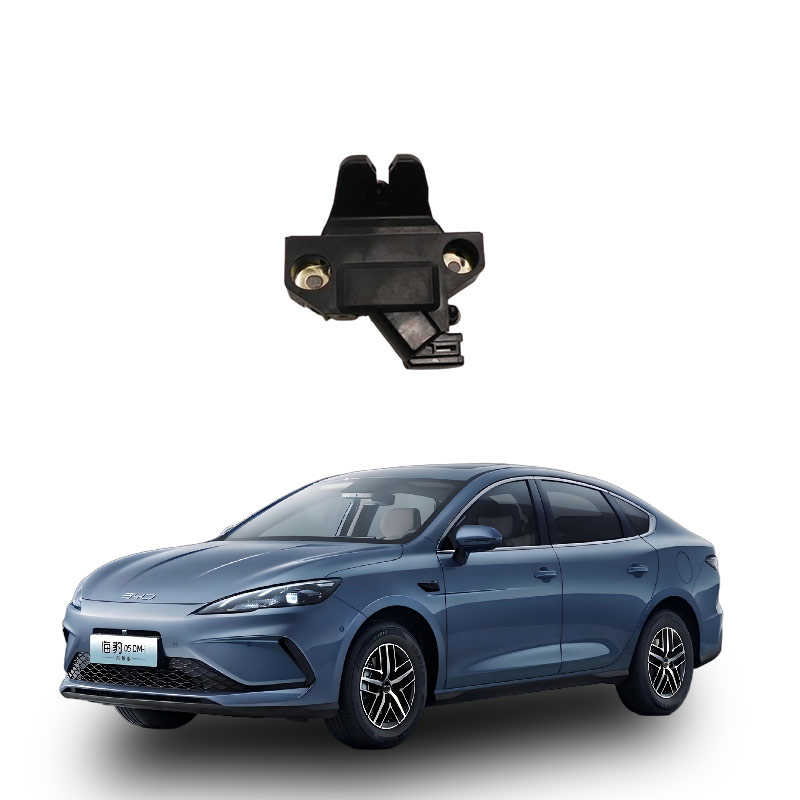

What is the car luggage lock assembly?
The automotive luggage lock assembly refers to the mechanical and electronic integrated components installed in the closing system of the car luggage compartment (tailgate/backdoor), used to achieve reliable locking, unlocking, and status feedback of the tailgate. It is not the lock mechanism of the travel suitcase.
Core definition and composition
Function positioning: Ensure that the tailgate does not accidentally open during driving, provide anti-theft security, maintain the sealing of the vehicle body (airtight/waterproof), and cooperate with the central locking system or intelligent system.
Main components:
Lock body assembly: Includes lock tongue, ratchet, return spring, trigger lever, etc., to achieve "semi-lock → full-lock → unlock" physical engagement;
Execution/control unit: Some models integrate motors (electric tailgate), microswitches, button trigger modules, and receive signals from the BCM (body control module);
Auxiliary accessories: Lock catch (fixed on the vehicle body corresponding mating part), pull wire/lever, anti-misoperation mechanism, position sensor, etc.
Key features
The working logic is mainly mechanical engagement, supplemented by electronic signals (pure mechanical type is still common in basic models);
It needs to meet collision safety standards (should not open by itself under high-speed impact);
Highly likely failure points: Wear and jam of the lock tongue, fatigue of the spring, burnout of the motor, abnormal wiring, often manifested as "not closing tightly", "false lock", "unable to remotely open".
Note: In daily use, it is easily confused with "travel suitcase lock", but the two have completely different application scenarios and structural principles - the former belongs to the automotive body accessory system, while the latter is a portable luggage accessory.
The "automotive luggage lock assembly" usually refers to two different components, and the function should be distinguished according to the installation location:
Backseat (tailgate) locking assembly (the most common meaning)
Core function: Lock/Unlock the backseat cover to ensure that the tailgate does not accidentally open during driving, prevent luggage from falling or being stolen.
Safety mechanism: Through the physical engagement of the lock tongue, ratchet and lock catch, maintain the closed state under bumpy and sudden braking conditions; some models are linked to the central locking system to achieve synchronized locking of the entire vehicle.
Additional value: Improve sealing (prevent rain and dust), trigger opening sensing (such as electric tailgate), integrate anti-theft alarm (trigger alarm for abnormal unlocking).
Key components: Lock body, lock core (mechanical/electronic), lock catch, pull wire or motor drive mechanism.
Top luggage rack fixation lock assembly (rare, belongs to modification or specific configuration)
Core function: Firmly lock the crossbar on the roof, luggage frame or luggage compartment to the vehicle guide rail, prevent loosening or theft due to high-speed vibration.
Characteristics: Mostly independent key lock core + mechanical latch structure, emphasizing wind resistance and anti-pickpocketing; When not an original factory standard configuration, attention to compliance (such as height ≤ 0.5m, filing requirements).
Note: This is not a basic safety component of the vehicle, and is often seen in SUV/limousine add-on scenarios.
In daily use, "automotive luggage lock" is generally referred to as the backseat locking assembly, which is a key execution unit for driving safety and anti-theft; if it involves the roof load system, it should be clearly referred to as "top luggage rack locking device". It is recommended to consult the vehicle manual to confirm the specific configuration type.
Confirm the fault manifestation: Is it "unable to open", "unable to close/lock" or "no response from the remote control"? Different phenomena correspond to different priority handling.
Quick self-check (can be completed within 5 minutes)
Mechanical type: Check if the lock catch/lock tongue is dirty, rusted, or has foreign objects stuck; use compressed air or dedicated lock core cleaner to clean, then spray "silicone-based lubricating grease" (do not use WD-40 for long-term replacement) to test opening and closing.
Electronic type: - Replace the remote key battery (common CR2032);
Try the mechanical key emergency unlocking (most models have an emergency pull rope/holes under the lock core cover or behind the rear seat);
Observe if there is a "backseat not locked/fault" prompt on the dashboard (the prompt requires reading the fault code).
Structure category: Check if the screws of the trunk lid hinge are loose, and if the lid body is deformed causing the lock tongue not to align properly; Confirm that the internal emergency pull rope has not been triggered by items and is not mistakenly activated.
If there is a risk of automatic opening during driving, temporarily fix the lock tongue with tape or avoid loading valuable items and have it repaired as soon as possible.
Situations requiring professional repair (suggested to go directly to the dealership)
Motor burnout, circuit short circuit, control module failure (often accompanied by no response/ intermittent malfunction);
Total wear of the lock body assembly, broken connecting rod, damage to the lock core inside;
Faults of the electric tailgate/integrated lock system (involving CAN bus matching, replacing by oneself may cause functional abnormalities).
Replacement/repair points
Matching parts: Must select original or certified aftermarket parts according to the vehicle model and year (the electronic lock needs to be compatible with the vehicle body network protocol);
Construction key points: Disconnect the negative terminal of the battery → Remove the interior panel → Power off and unplug the connector → Record the wiring sequence → Install and conduct multiple opening and closing + remote control linkage tests afterwards;
Special attention: For MPV/SUV electric tailgate models and vehicles with keyless entry systems, after replacement, it may be necessary to initialize/match (not simply reinstalling will not be usable).
It is recommended to contact the brand 4S store or a professional repair shop with diagnostic equipment; if operating by oneself, be sure to refer to the repair manual of this vehicle model to avoid damaging the wiring or triggering the anti-theft lock. (Note: At present, there is no specific vehicle model information. The above is a general plan; providing the brand/year/fault details can provide further precise guidance.)
