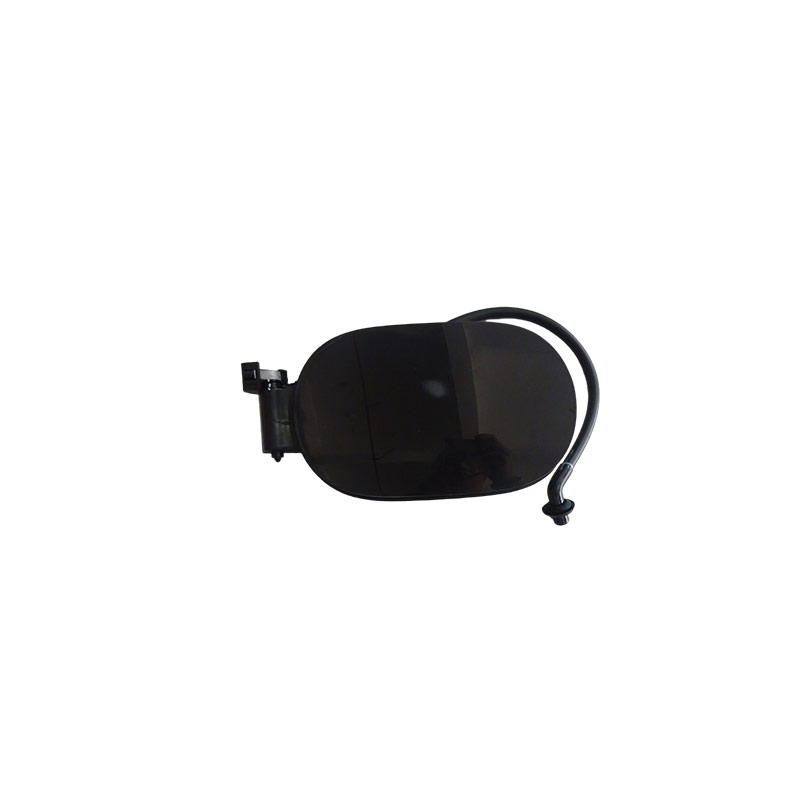

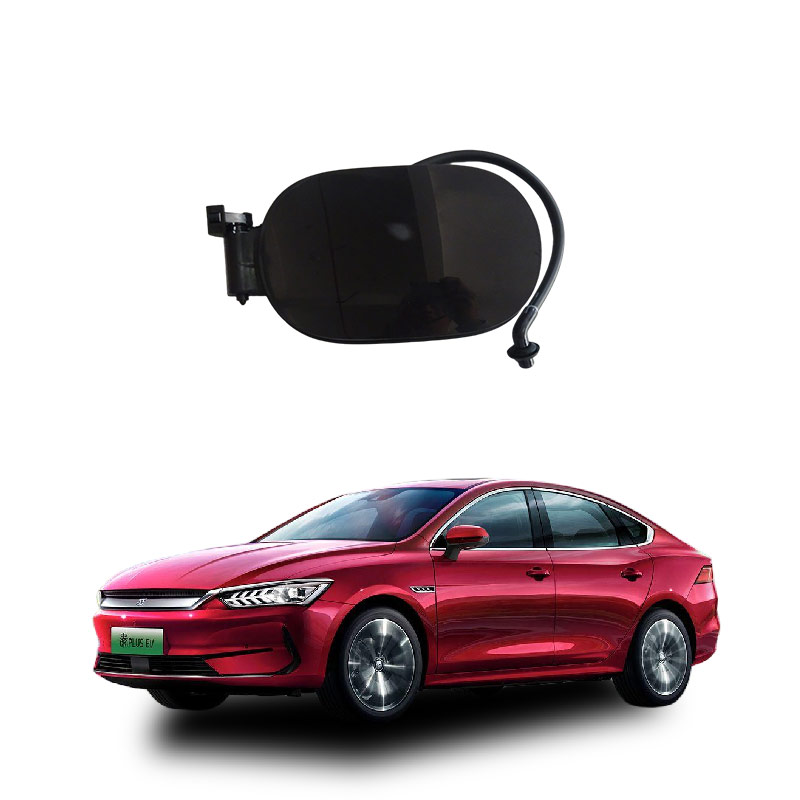

What is the car charging port cover assembly?
The car charging port cover assembly is an integrated exterior and functional component on new energy vehicles used to protect the charging interface. It is similar to the fuel tank cap of a gasoline vehicle, but it has higher requirements for sealing and intelligent control.
Core Definition
It is a complete assembly consisting of a cover plate, a base (installation seat), a locking mechanism and a driving device. Its main function is to close the charging port when not in use, preventing dust, rain and foreign objects from entering, and ensuring the safety of the high-voltage electrical system.
Main Components
Cover Plate: The exposed part that can be directly seen, usually made of engineering plastics (such as PPE + PA) to reduce weight and ensure the appearance texture, and the surface is often the same color as the body.
Base/Installation Seat: Fixed to the side panel or bumper of the vehicle, the interior accommodates the charging socket, providing the rotating or sliding track for the cover plate.
Locking and Driving System:
Mechanical Type: Relying on springs, hinges and manual pressing to open, the structure is simple.
Electric Type: Includes a motor, actuator, connecting rod or gear set, supporting automatic opening and closing through a vehicle key, the central control screen or NFC, some high-end models have the function of automatic reset.
Sealing Components: Including waterproof rubber strips, dust covers, ensuring a protection level of IP54 or higher, preventing water and electricity leakage during washing or rainy days.
Core Function
Safety Protection: Physically isolating water vapor and dust, avoiding oxidation, corrosion or poor contact of the charging contacts, and preventing overheating risks caused by poor charging.
Aesthetic Integration: When closed, it is flush with the body surface, maintaining the streamlined design of the entire vehicle, and some components also integrate ambient lighting or brand logos.
Intelligent Interaction: Modern components often interact with the vehicle's BMS (Battery Management System), automatically unlocking during charging, closing after unplugging the gun, and improving usability.
In short, it is not just a simple "lid", but a key automotive component integrating sealing protection, structural support and intelligent control.
The core function of the car charging port cover assembly is to achieve protection sealing and safety interaction, including the following key functions:
Dust-proof and water-proof sealing: Through rubber sealing rings to block dust, sand and rain from entering the charging socket interior, preventing oxidation, corrosion or formation of an insulating layer of the metal contacts, and avoiding charging contact failure, short circuit and electrical system damage.
Physical protection and foreign object prevention: As the first physical barrier, it prevents minor scratches on the interface during driving and blocks foreign objects (such as stones, inserted by humans) from entering, reducing the risk of accidents.
Intelligent locking and safety linkage: Integrating mechanical or electronic locking mechanisms, automatically locking during driving or charging, preventing the cover from accidentally opening; some models support remote/NFC unlocking and emergency mechanical opening, balancing convenience and emergency usability.
Aesthetics and aerodynamic optimization: Covering exposed interfaces to maintain the body appearance integrity, some designs also consider reducing noise and air resistance.
This component is a key exterior part ensuring the long-term stable operation of the charging system and electrical safety, and regular inspection of the aging of the sealing strips is necessary to ensure the protective efficiency.
Common fault manifestations and emergency handling of car charging port cover failures are divided into three categories: mechanical jamming, electronic lock failure, and shell damage. First, determine the specific phenomenon and then take corresponding measures. Do not use violent operations to avoid expanding the damage.
Common Fault Manifestations and Emergency Handling:
Unable to open (jamming/without response):
Check the vehicle status: Confirm that the vehicle is powered on or unlocked, some models do not respond to the electronic lock in the power-off/locked state.
Try soft reset: Repeat the "unlock-lock vehicle" operation through the central control screen, mobile phone app or remote key to eliminate signal delay or logic deadlock. Use Emergency Unlock: Refer to the manual to find the emergency pull rope (usually located in the front cabin, the inner side of the wheel arch, or behind the trunk cover), and manually pull to release the locking mechanism.
Thaw/Remove Debris: In winter when there is ice, use a hair dryer to heat the gap at low temperature; clean the edges of sand and foreign objects to avoid forcefully prying.
Unable to Close/Lock:
Clean the Track: Check if there are leaves, stones stuck in the hinges and sliding rails, and clean them. Apply a small amount of silicone-based lubricating grease afterwards.
Check Motor/Position Sensor: If you hear the motor sound but the cover does not move, it may be due to gear slippage or a fault in the position sensor. Professional repair is required.
Shell Crack/Seal Failure: Immediately stop using and cover the interface to prevent water from seeping in and causing corrosion or short circuit of the high-voltage interface. Replace the original factory parts as soon as possible.
Analysis of Core Fault Causes
Electronic System: 12V low-voltage battery voltage is too low (<11V), causing the control module to lose power protection; the locking motor is damaged, the wiring harness is loose, or the control module is faulty.
Mechanical Structure: Spring fatigue failure, plastic snap rings break (especially due to low-temperature brittleness), the shaft is worn or lacks lubrication.
Environmental Factors: Mud, sand, water accumulation jamming, ice freezing, salt fog corrosion causing rust of metal parts.
Maintenance Suggestions and Prohibitions
Prohibited Actions: Do not use metal tools to forcefully pry the cover; do not charge when the interface is not dry; do not disassemble the high-voltage circuit module by yourself.
Professional Repair: If the emergency method is ineffective, or if it involves motor, wiring harness, or control module faults, please go to the authorized service center to read the fault code and replace the original factory parts. Non-original factory parts may not meet the waterproof and dustproof standards.
Daily Prevention: Regularly clean foreign objects in the gap of the cover; avoid forcibly operating when the vehicle is completely frozen in winter; after charging in rainy weather, make sure the cover is tightly closed.
If the vehicle is still within the warranty period, non-human damage is usually free to replace; damage caused by external force requires payment, the cost is usually between several hundred to several thousand yuan, and the specific amount is subject to the brand's after-sales inspection.
