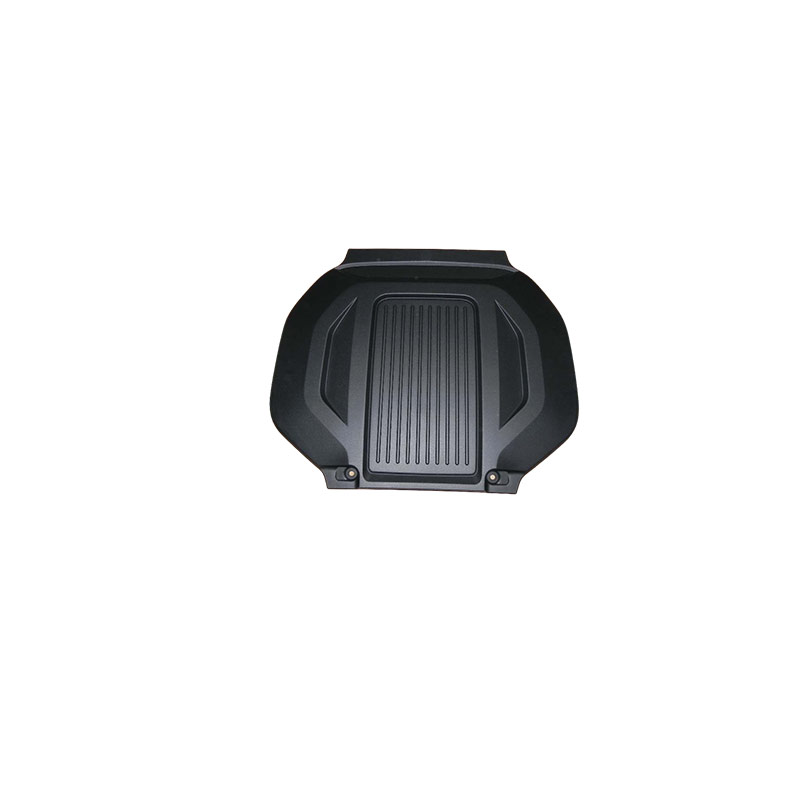

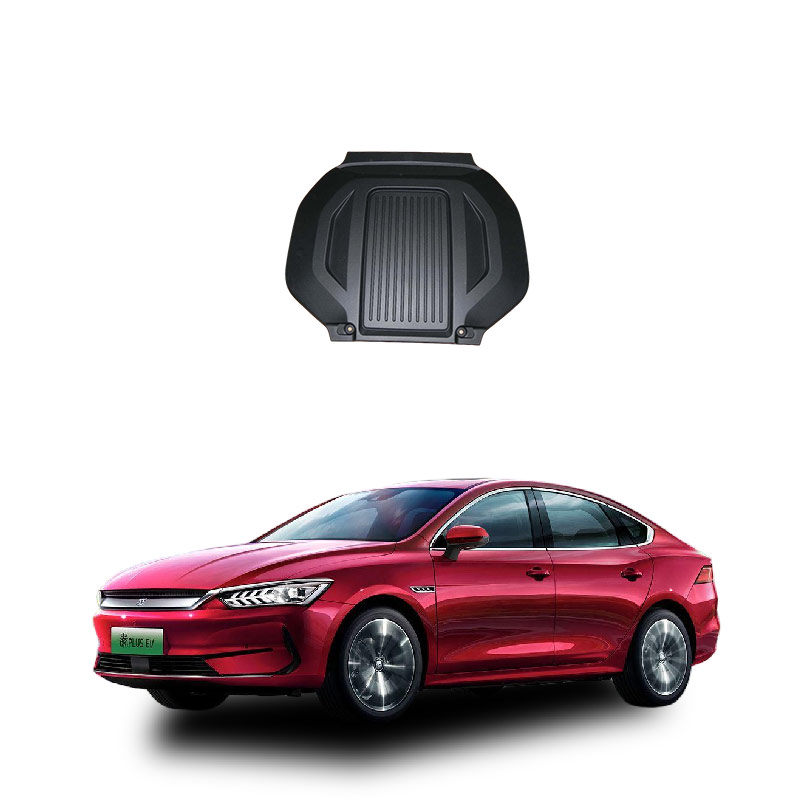

What is the automotive motor cover assembly?
"The automotive motor cover assembly" typically refers to the end cover assembly that drives the motor or generator. It is a key structural component that encloses the two ends of the motor, supports the rotor, and protects the internal core components. It does not refer to the engine hood (hatch) at the vehicle's front.
Core Definition and Composition
Basic Definition: The cover-shaped component installed at both ends of the motor stator core, divided into the front cover and the rear cover. Together with the motor housing, it forms a closed cavity.
Main Components: Usually includes the bearing seat (for installing rolling bearings), the sealing structure (oil seal/dust cap), the wiring box interface (partly integrated in the rear cover), and the heat dissipation ribs.
Material and Process: Mostly made of aluminum alloy casting, aiming for lightweight, low magnetic leakage, and excellent heat dissipation performance. Core function
Mechanical support: As the fixed part of the rotor shaft for the bearing housing, it ensures the coaxiality and stability of the rotor during high-speed rotation.
Sealing protection: It prevents dust, moisture and coolant from entering, and prevents internal windings from short-circuiting or bearings from rusting.
Auxiliary integration: The rear end cover often integrates the brush holder (for traditional generators), the sensor for rotational speed variation (for new energy vehicles), or the cooling air duct.
Clarification of common misunderstandings:
≠ Engine hood (hood): The metal cover that can be opened at the front of the vehicle is called "engine hood" or "engine cover", and it covers the engine compartment and has nothing to do with the internal structure of the motor.
Application differences: For fuel vehicles, it mainly involves the end cover of the AC generator; for new energy vehicles, it involves the end cover of the drive motor, which has higher requirements for sealing and heat dissipation, and is often designed in conjunction with water cooling or air cooling systems.
The "motor cover assembly" of a car usually refers to the end cover or housing of the drive motor or generator. Its core function is to support the rotor bearings, protect the internal components from contamination and provide auxiliary heat dissipation, rather than referring to the engine hood of the vehicle. Core function
Mechanical Support and Positioning: As the bearing housing, it fixes the ends of the motor shaft to ensure that the rotor and stator maintain an accurate air gap and can bear the weight of the rotor and the operating load.
Sealing and Protection: It blocks dust, moisture, and oil from entering the motor interior, protecting the windings and commutators/slip rings, and preventing short circuits or corrosion.
Heat Dissipation Assistance: Some end covers are designed with ventilation holes or heat dissipation ribs, and are combined with fans to guide the airflow, helping to discharge the heat generated by the motor operation.
Structural Integration: Some components are integrated into the wiring box installation positions or sensor interfaces, facilitating electrical connections and maintenance.
Common Misconceptions Clarification
If you are referring to the "engine hood" (hood) that can be opened at the front of the vehicle, its function is to cover the engine compartment, provide sound insulation and heat insulation, and absorb energy in case of a pedestrian collision. It has nothing to do with the internal components of the motor. In the context of electric vehicles, "motor hood" specifically refers to the enclosed structural components inside the electric drive system.
"Faults of the Motor Hood Assembly" usually refer to the rupture or deformation of the starter/generator end cover, or the failure of the motor lock to lock the electric fuel tank cover or charging port cover. The causes and handling logic are completely different. Please match the specific components:
Fault of the Power Motor End Cover (Starter/Generator)
Such faults often manifest as abnormal noise, oil leakage, or inability of the motor to operate. The core problem lies in the mechanical structure damage.
Common Causes
Destruction due to disassembly: Original factory end covers are mostly fixed with sealant. Forceful knocking or improper tools can easily cause the aluminum end cover to crack or deform.
Loose assembly: Long-term vibration causes the fixing screws to loosen, causing the end cover to shift, wear, or even crack.
Manufacturing error: Excessive tolerance in the end cover size and excessive clearance between the parts accelerate the wear of the bearings and cause structural fatigue.
Solution Measures
Minor deformation: If it does not affect the concentricity of the bearing housing, try to correct it and replace the high-strength bolts and apply thread locking agent.
Bursting/Severe Deformation: It is necessary to replace the end cover assembly. Do not weld for repair, as it will cause uneven air gaps and burn out the coils.
Standard Operating Procedures: During maintenance, use specialized pullers to remove, and strictly prohibit hitting the edge of the end cover. Clean the sealant before installing and evenly tighten the screws.
Body Panel Motor (Fuel Tank Cover/Charging Port Cover) Faults
Such faults manifest as the cover not being able to open, locking failure, or the motor being silent. They belong to electrical system problems of the vehicle body.
Common Causes
Mechanical Stagnation: Rusty hinges, foreign objects blocking, or overly stretched pull lines cause the motor to stop due to excessive load.
Motor Damage: Wear of internal gears, depletion of brushes, or open circuits in the coils, common in high mileage vehicles.
Circuit Faults: Loose wiring connectors, loss of signals from the control module, or blown fuses.
Troubleshooting and Resolution
Emergency Unlocking: Most models have an emergency pull wire behind the rear lining of the trunk. Pulling it can mechanically unlock the cover.
Basic Inspection: Confirm that the vehicle is unlocked, check if the wiring connectors are loose, and try repeatedly pressing the unlock button to rule out poor contact.
Component Replacement: If the motor does not rotate when powered or the gears slip, it is necessary to disassemble the lock body assembly and replace the entire locking motor module (replacing the motor alone is costly and unreliable).
Low Temperature Handling: When frozen in winter, use a hair dryer to heat the gap or use antifreeze, and never forcefully pry to avoid damaging the plastic parts.
Key Recommendations
Prioritize Diagnosis: First distinguish whether it is the "powertrain motor" or the "small body motor". The former involves the core power, while the latter is a convenience configuration.
Do Not Force Operation: Ruptured end cover during operation will ruin the entire motor; frozen fuel tank cover during forced prying will break the latch and increase the repair cost.
Professional Intervention: The end cover of the power motor involves precise cooperation. It is recommended to have it repaired by a professional technician using specialized tools. If the small motor on the vehicle needs to be disassembled to access the interior, you can either replace it yourself according to the vehicle manual or bring it to the dealership for handling.
