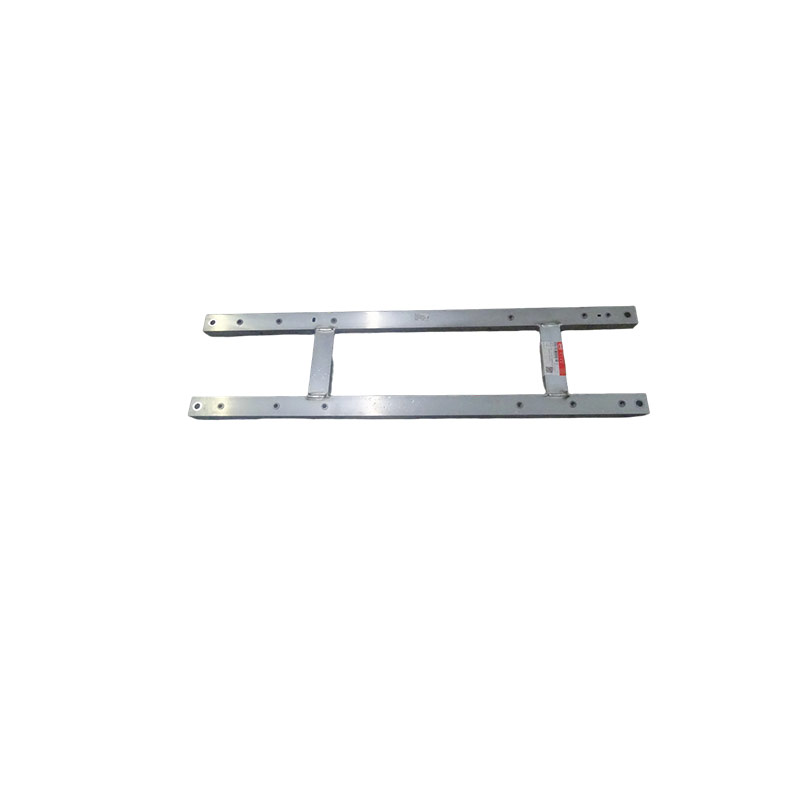

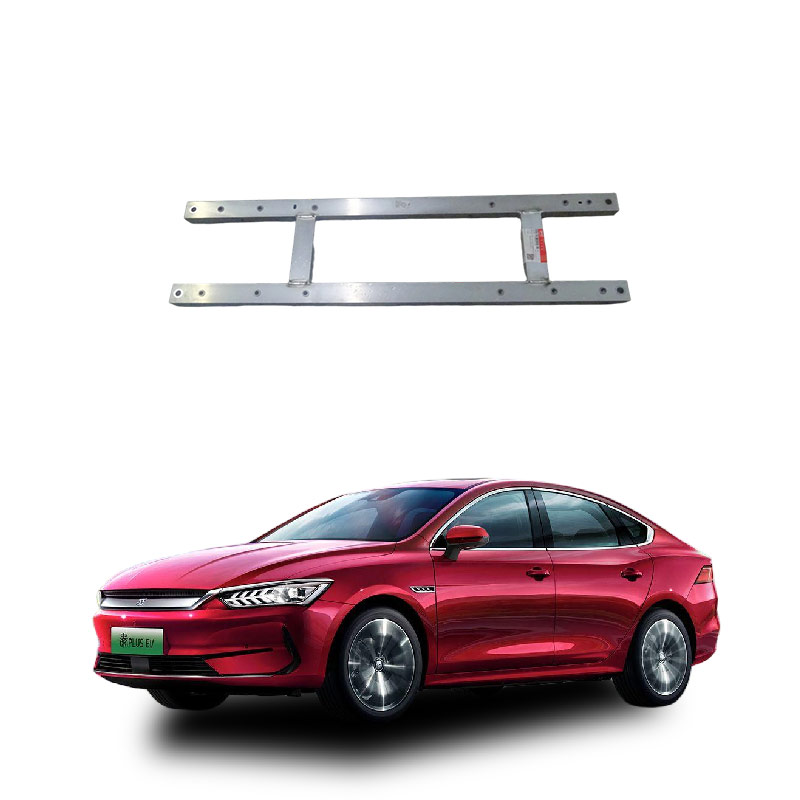

What is the front cabin crossbeam assembly of a car?
The front cabin crossbeam assembly is a transverse structural component located at the front end of the engine compartment and connecting the left and right front longitudinal beams. It is usually positioned behind the front bumper and is a key component of the vehicle's frame.
Core Definition and Location
Location: Spanning the front of the vehicle, it is located inside the front bumper, in front of the radiator (water tank), and directly connects the left and right front longitudinal beams.
Composition: It is not a single part, but an assembly component consisting of the crossbeam body, mounting bracket, energy absorption box, and connecting pieces.
Alternative Names: It is often referred to as the front crossbeam, front impact beam (structural part), or front frame crossbeam sub-assembly. Main function
Collision energy absorption: During low-speed frontal collisions, energy is absorbed through controlled collapse to protect the longitudinal beams and engine and other core components; in high-speed collisions, it helps to disperse the impact force.
Strengthening stiffness: Connecting the left and right longitudinal beams laterally significantly enhances the torsional stiffness of the vehicle's front section, improving driving stability.
Support and fixation: As an installation reference, it supports and fixes the bumper, radiator, condenser, and some suspension system components.
Materials and processes
Material: Mainly uses high-strength steel (with strength typically ≥ 600 MPa) or aluminum alloy to balance strength, weight, and energy absorption effect.
Process: Mostly uses stamping forming, hydraulic forming, or back-to-back connection of channel-shaped profiles. Some high-end models use multi-cell structures to optimize NVH performance.
In summary, it is the "horizontal skeleton" inside the vehicle's front end, responsible for supporting vehicle components daily and serving as the first structural defense line in an accident.
The front cabin crossbeam assembly (usually referring to the front bumper crossbeam or front fender crossbeam) is the core structural component at the front end of the vehicle, mainly responsible for collision energy absorption protection and structural support stability.
Core function
Collision safety and energy absorption: As the first longitudinal protective structure in a frontal collision, it is made of high-strength steel (typically ≥ 600 MPa) or aluminum alloy. During a collision, it absorbs approximately 60% of the impact energy through controlled collapse and combines with the energy absorption box to form a secondary protective barrier, effectively reducing the impact force transmitted to the passenger compartment.
Enhancing vehicle stiffness: Connecting the left and right front longitudinal beams laterally forms a stable triangular frame structure, significantly enhancing the torsional stiffness of the frame (some designs can increase by more than 80%). It disperses longitudinal and lateral loads generated during sudden acceleration, braking, or cornering, maintaining the overall geometric stability of the vehicle.
Key component support base: As an installation reference, it directly supports the front bumper system, radiator (water tank), condenser, and some engine accessories, ensuring that these components maintain a relative position fixed during driving vibrations and preventing pipe rupture or cooling failure due to displacement.
Additional functions
Load dispersion: Quickly disperses concentrated stress from road bumps or local impacts to the side longitudinal beams and the main body of the vehicle, avoiding excessive local stress that may cause structural failure.
Environmental protection: Specific structural design can withstand external static pressure (such as snow accumulation), protecting internal precision components from being crushed and damaged.
This component is located behind the front bumper and in front of the radiator, being a key framework component that balances vehicle lightweighting, handling stability, and passive safety. If the vehicle experiences a front-end collision, it is necessary to carefully check if this crossbeam is deformed to assess the integrity of the vehicle structure.
