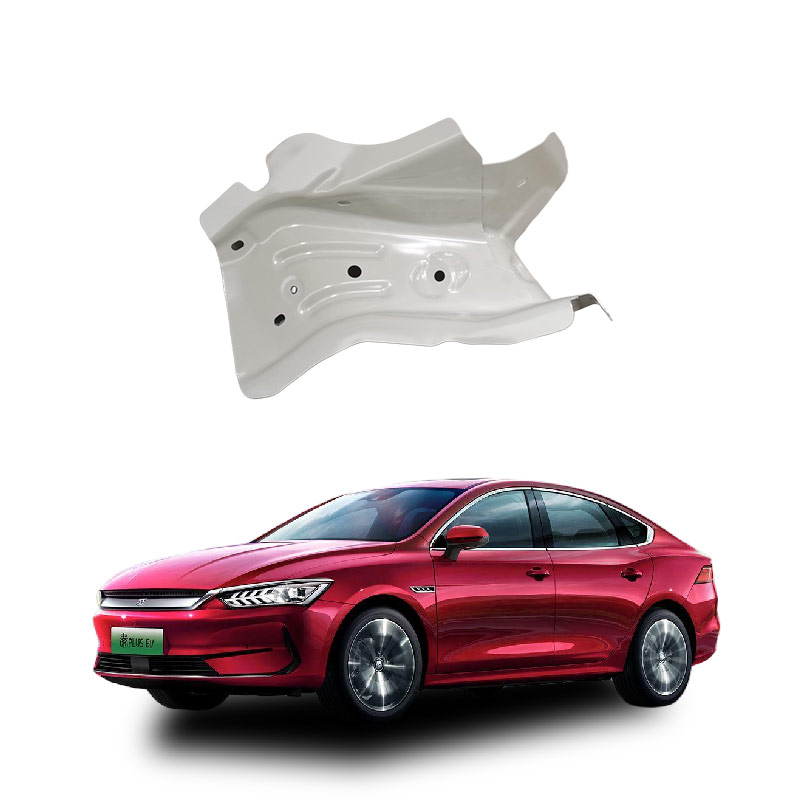

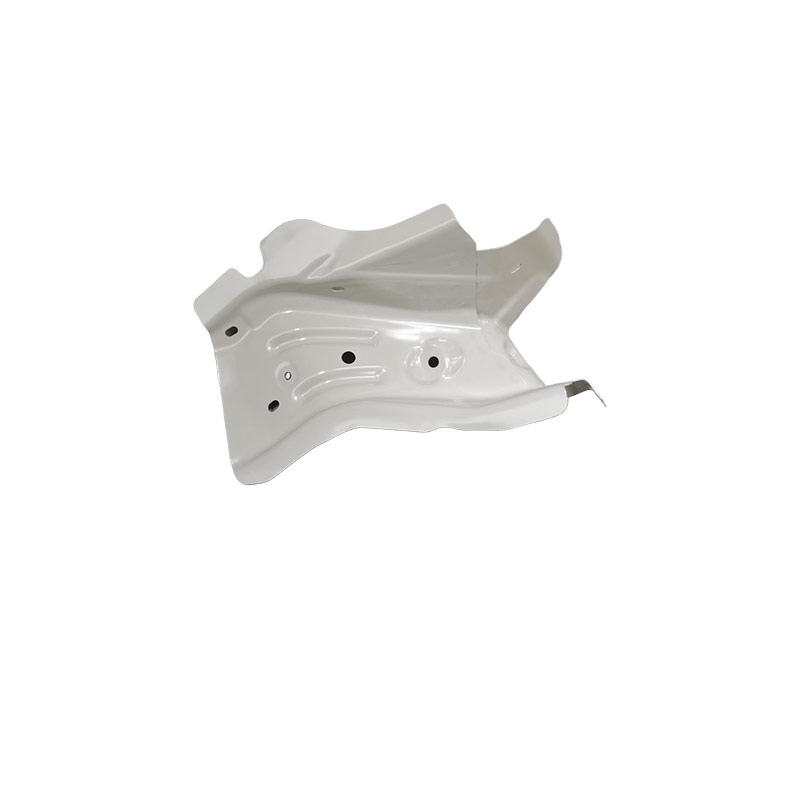

What is the left bracket assembly of the middle rear upper crossbeam of the car?
The left bracket assembly of the middle rear crossbeam of the car is a specific connecting component in the vehicle body frame. It is mainly located on the left side of the upper rear structure of the vehicle (such as the rear crossbeam of the roof or the middle crossbeam area on the rear floor), and is used to fix the transverse beam to the vehicle side panel or pillar.
Core definition and function:
Positioning: It belongs to the left end support subassembly of the "rear crossbeam assembly". It is usually installed at the connection point between the left side panel of the vehicle (near the C-pillar/D-pillar) and the rear crossbeam.
Function: It bears the load transfer, enhances torsional stiffness, and provides an installation reference. It distributes the force of the rear crossbeam to the vehicle body structure and ensures the assembly accuracy of the crossbeam in automated production through locating pins/cylinders.
Structural form: It is mostly a high-strength steel stamping and welding component, including support plates, locating bolts, installation flanges, and reinforcing ribs. Some designs also reserve electroplating fluid outlet holes.
Common application scenarios:
This naming is highly specific to the vehicle model. It is commonly found in the following structures:
Rear crossbeam system of the roof: As the left support component, it fixes the left end of the roof crossbeam, supporting the rear door hinges or the roof structure.
Upper rear floor structure: In the area below the rear seats or above the battery pack, it is the left fixed bracket of the middle crossbeam, supporting the seats or battery accessories.
Commercial vehicle cab: Used for the left hydraulic lock or shock absorber bracket assembly of the rear suspension crossbeam of the cab. Notes for Attention
Non-standard parts: This name describes the specific part number. Different brands (such as Volkswagen, Toyota, Hongqi, etc.) have significant structural differences, and for repair or replacement, it is necessary to strictly match the vehicle model year and VIN code.
Maintenance correlation: If this bracket deforms, it may cause the position of the rear crossbeam to shift, affecting the sealing performance of the rear door, the rigidity of the vehicle body, or causing abnormal noises. Usually, it requires overall correction or replacement of the bracket assembly.
If you need to confirm the specific part number or drawing of a particular vehicle model, it is recommended to provide the vehicle brand, model, and year, or consult the official aftermarket parts catalogue (EPC).
The "left bracket assembly of the middle rear upper crossbeam of the car" is not a standard general term. It usually refers to the connection and fixation parts on the left side of the rear upper crossbeam in the body frame (such as the rear cover, hat rack area, or rear floor reinforcement beam). Its core functions are as follows:
Structural connection and positioning: As a key connection point, it firmly fixes the rear upper crossbeam (transverse reinforcement) to the left longitudinal beam or side panel of the vehicle body, ensuring the precise position of the crossbeam and maintaining the geometric shape of the vehicle body.
Enhancing torsional stiffness: Through rigid connection to form a closed force structure (often combined with the right bracket and the top beam of the rear shock absorber tower to form a "damper ring"), it significantly enhances the torsional resistance of the vehicle's rear end, reducing vehicle body deformation during driving.
Load transfer and dispersion: It effectively transfers the vertical load, vibration shock, and collision force from the rear to the left main load-bearing structure, avoiding stress concentration that leads to local fracture.
Component installation base: It provides a stable installation support point for rear windshield glass, rear door hinges, interior panels (such as hat racks), or rear suspension tower top, etc.
Note: The specific functions vary depending on the vehicle platform (conformal/non-conformal). If repair or replacement is involved, it is necessary to strictly match the original factory specifications to ensure passive safety performance.
The "middle rear upper crossbeam left bracket assembly of the car" is not a standard general term. It usually refers to the left support bracket of the rear crossbeam of the body frame or the left connection bracket of the rear sub-frame/chassis structure. The failure of this component often manifests as metal fatigue fracture, rubber bushing aging, or bolt loosening, directly affecting the torsional stiffness of the vehicle body and the rear NVH performance.
Core fault phenomena
Abnormal noise and vibration: When driving over bumpy roads or making sharp turns, the rear part of the car (below the rear windshield) emits a "clicking" metal friction sound or a dull impact sound. Pressing the top of the rear seatback may feel abnormally loose.
Structural displacement: If it is the sub-frame bracket of the chassis, it will cause the rear suspension to lose alignment, resulting in tire uneven wear, vehicle drift, or rear axle shaking.
Appearance damage: Inspection reveals cracked welding points of the bracket, fallen rubber buffer blocks, or elongated and deformed installation holes.
Fault causes
Metal fatigue: Long-term bearing the torsional load of the vehicle body, especially in harsh road conditions, the root of the bracket is prone to stress concentration and crack.
Corrosion and rusting: If the protective layer of the chassis bracket is damaged, it is prone to rusting and perforation in a humid salt and alkali environment, with a significant decrease in strength.
Installation failure: The original factory bolts were not tightened to the standard torque, or after repair, non-original factory parts were used, resulting in excessive clearance between the parts. Handling suggestions
Immediate inspection: Check the connection point of the left rear support for any obvious cracks, rust penetration or missing bolts; Shake the rear seat top to confirm if there are any abnormal gaps.
Prohibit forced driving: If fractures or severe loosening are found, avoid high-speed and heavy-load driving to prevent further damage to the vehicle structure or component detachment and potential safety accidents.
Professional replacement: Such structural components usually require overall replacement rather than welding repair (welding will alter the metal heat treatment properties and there is a risk of fracture). Special lifting equipment is needed for disassembly, and the bolts should be tightened step by step according to the manufacturer's specified torque.
Matching parts: Make sure to check the vehicle model year and VIN code, and prefer to choose original or certified brand parts to ensure the material and craftsmanship meet safety standards.
Note: If your vehicle is a commercial vehicle (such as a heavy truck), this component may involve the cab suspension system. A malfunction can cause abnormal shaking of the cab, and it is necessary to carefully check the hydraulic lock and suspension rubber pad conditions.
