What is the rear connecting plate on the right side of the car floor?

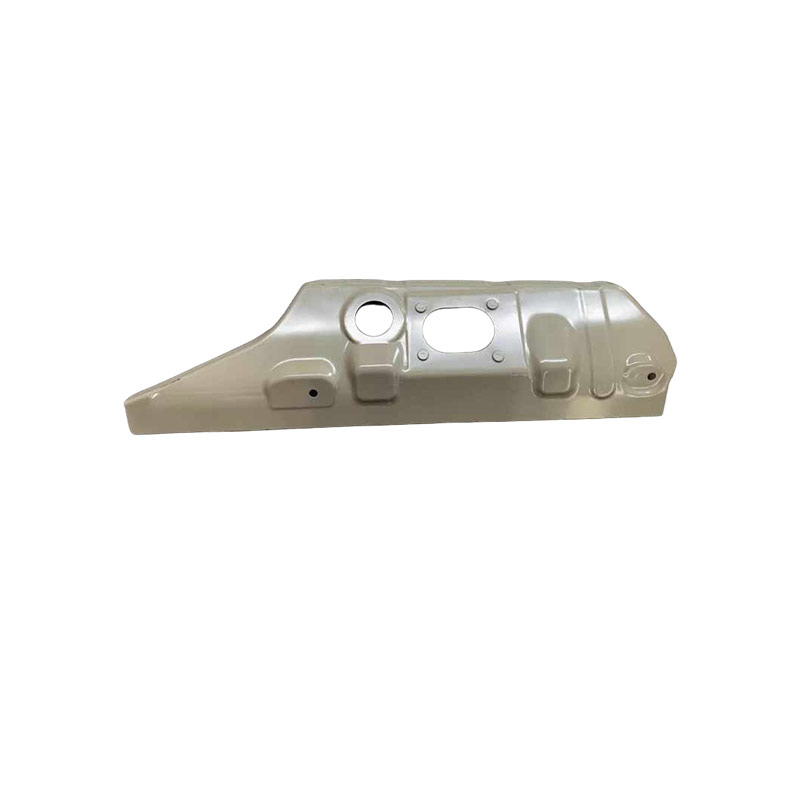

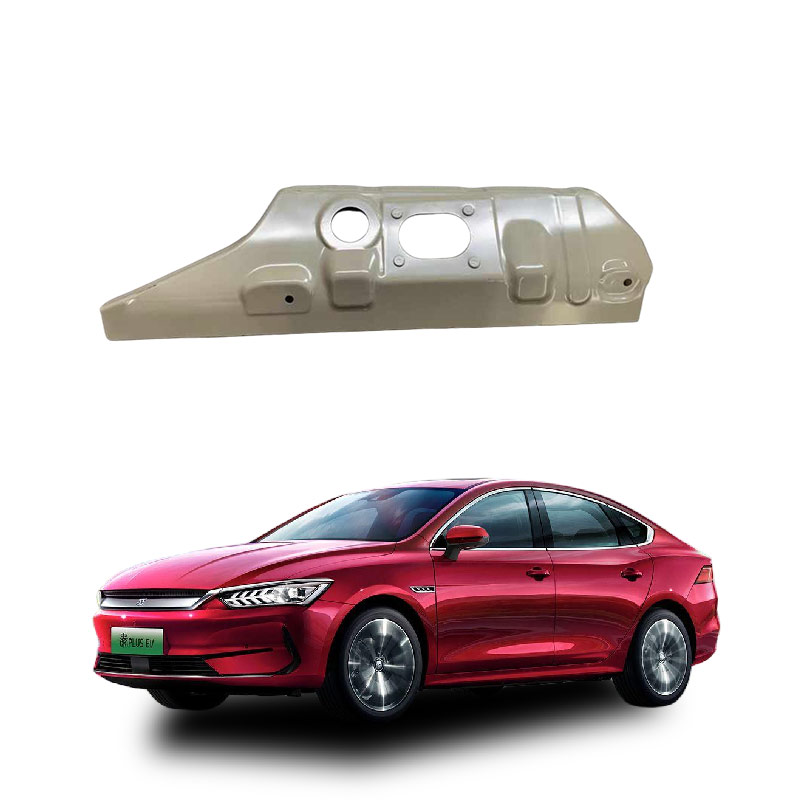

The "right rear floor rear connection plate" is not a standard general term. It usually refers to a metal reinforcing connection piece in the white body chassis structure, located at the right rear of the vehicle and used to connect the rear floor panel with the body longitudinal or cross beam.
Core Definition and Position
Essence: It is a structural reinforcement component (not an exterior covering part) belonging to the vehicle body frame, mostly made of high-strength steel through stamping.
Position: It is located in the right rear area of the vehicle chassis, specifically at the edge of the rear floor on the right side and the junction with the right longitudinal beam or rear cross beam.
Function: As a "bridge", it welds and fixes the floor panel to the main frame, enhancing the vehicle's torsional stiffness, impact resistance, and collision safety.
Common Confusion and Distinguishing
This name is prone to confusion with the following components, and the actual context should be used to distinguish:
Right rear fender (wingside panel): An exterior covering part above the right rear wheel, mainly for aesthetics and splash protection, and does not belong to the floor structure.
Rear bumper/liner: A protective/separator part at the bottom of the trunk or under the chassis, with functions focusing on noise isolation or protecting the fuel tank, rather than connecting to the floor frame.
Decorative panel bracket: Some commercial vehicles (such as Iveco, FAW-Jiefang) have "right rear floor decorative panel connection bracket", which is only used to fix the interior plastic panel and has no structural load-bearing function.
Maintenance and Identification Suggestions
If it involves maintenance or component procurement:
Confirm the vehicle model: Different brands (such as SAIC, Foton, Jianghuai) have significant naming differences for this part, often called "right rear floor connection plate", "right rear crossbeam connection plate", or "floor reinforcement plate".
Check the VIN code: Query the original factory parts catalog through the frame number to avoid purchasing the wrong part due to different common names (incorrect installation of structural parts will affect safety).
Damage Judgment: If this connection plate is deformed, it usually indicates that the chassis has suffered a significant impact, and professional inspection of the vehicle's geometric dimensions is required. Simple钣金 repair is not allowed.
In short， it is a key structural iron plate hidden inside the chassis， responsible for locking the right rear floor to the frame. It is usually not visible and is only focused on during disassembly or accident repair.
The core function of the right rear floor rear connection plate (usually referring to the structural connection piece between the rear floor and the side panel， rear crossbeam or wheel well) is to：
Force transmission and dispersion： In the event of a side or rear impact， it effectively transmits the impact force from the impact point to the vehicle's main frame (such as the threshold beam， rear crossbeam)， avoiding local stress concentration that causes the passenger compartment to deform.
Enhance torsional stiffness： As a key node of the underbody， connecting the rear floor with the right side panel/crossbeam， it significantly enhances the vehicle's torsional rigidity， improving handling stability and driving quality.
Support and positioning： Providing precise installation benchmarks for the right rear suspension mounting points and rear seat fixation points， ensuring the stability of the suspension geometry and the firmness of the seats.
Sealing and sound insulation： Combined with sealing strips or process holes， it blocks the entry of chassis noise， moisture， and dust into the passenger compartment， improving NVH (noise， vibration， and sound insulation) performance.
Note： This component is a structural part of the white body， not an exterior covering part. It is usually not visible in daily life； if maintenance is involved， professional equipment is required to correct to ensure collision safety.
The "right rear floor rear connection plate" is not a standard general term for faults. It usually refers to the welding cracking/rusting of the vehicle body structure components (such as rear floor crossbeam connection plate， longitudinal beam connection point)， or mistakenly referring to the hydraulic/electrical connection components of the tail panel as the floor connection plate. Please match according to the actual phenomenon：
If referring to vehicle body structure components (white body frame)
This component is located at the right rear bottom of the trunk， responsible for connecting the floor with the crossbeam， mainly bearing torsional stiffness. Common Fault Manifestations: When the vehicle crosses an uneven surface, there is a metallic friction/impact noise coming from the right rear part, the trunk lid does not close tightly, and cracks or severe rust can be seen on the inner side of the right rear fender.
Cause Analysis: Long-term bumps cause metal fatigue, substandard welding techniques after accident repair, and electrochemical corrosion due to the vehicle's chassis getting wet.
Treatment Suggestions:
Minor Rust: Sandblast to remove rust, apply anti-rust glue, and install reinforcing plates.
Cracked/Worn Weld Seam: Do not attempt to weld yourself; it is necessary to conduct non-destructive testing at a professional body shop. If necessary, cut and replace the entire rear floor frame assembly to restore collision safety.
Note: This is a structural damage issue. If cutting and replacement is involved, the vehicle will be classified as an "accident vehicle", which will seriously affect its resale value.
If referring to the hydraulic tailboard connection mechanism
If your vehicle is equipped with a rear lifting tailboard, "the connecting plate" may refer to the hinge or hydraulic pipe joint that fixes the tailboard to the vehicle body.
Common Fault Manifestations: The tailboard lifting is stuck, one side is tilted, the hydraulic pipeline leaks oil, or the electrical plug is loose.
Troubleshooting Steps:
Check Mechanical Connection: Check if the right hinge bolt is loose and if the pin shaft is worn or broken.
Check Hydraulic System: Observe if the right oil cylinder pipe joint is leaking oil, and if the one-way throttle valve is stuck and causing slow descent.
Check Circuit: Confirm if the right limit switch and grounding wire are not in good contact, causing the motor to stop abnormally.
Treatment Suggestions: Tighten loose bolts, replace damaged seals; if it involves hydraulic pressure adjustment or circuit short-circuiting, it is recommended to contact the tailboard manufacturer for professional repair to avoid high-pressure oil spraying injuries.
Emergency Action Guide
Safety First: If the vehicle structure component cracks, avoid high-speed cornering or heavy loading and send it for inspection as soon as possible.
Precise Location: Take clear photos of the faulty area (including weld seams, rust, or oil leakage points), consult a 4S store or professional chassis repair shop to determine if it is a "structural component" or an "accessory equipment".
Avoid Blind Repair: The repair of force-bearing components of the vehicle body must comply with the original factory torque and welding standards. Non-professional operation will damage the vehicle's rigidity and increase the risk of secondary collision.
