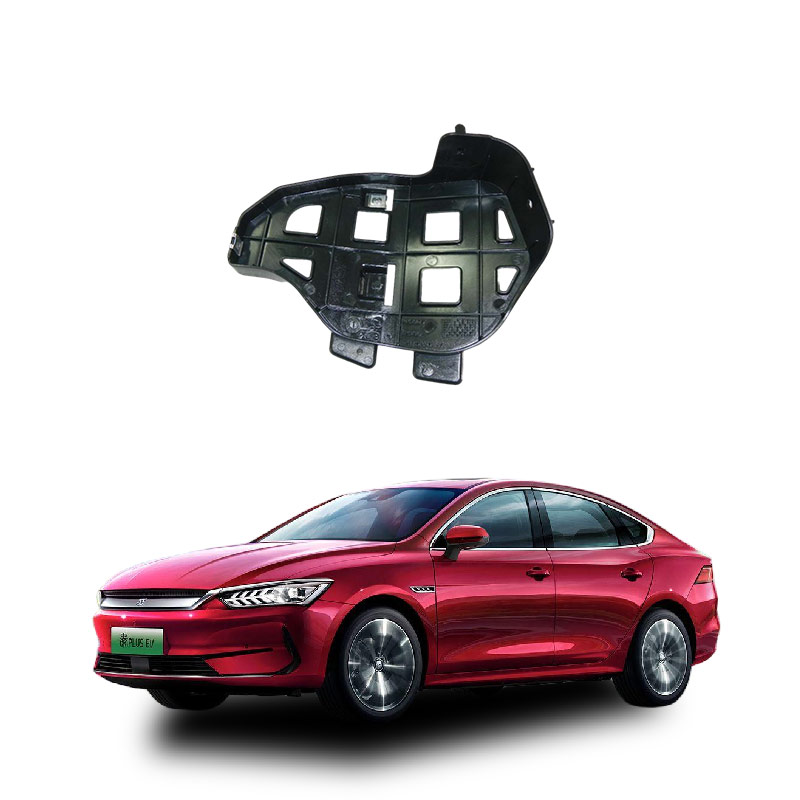

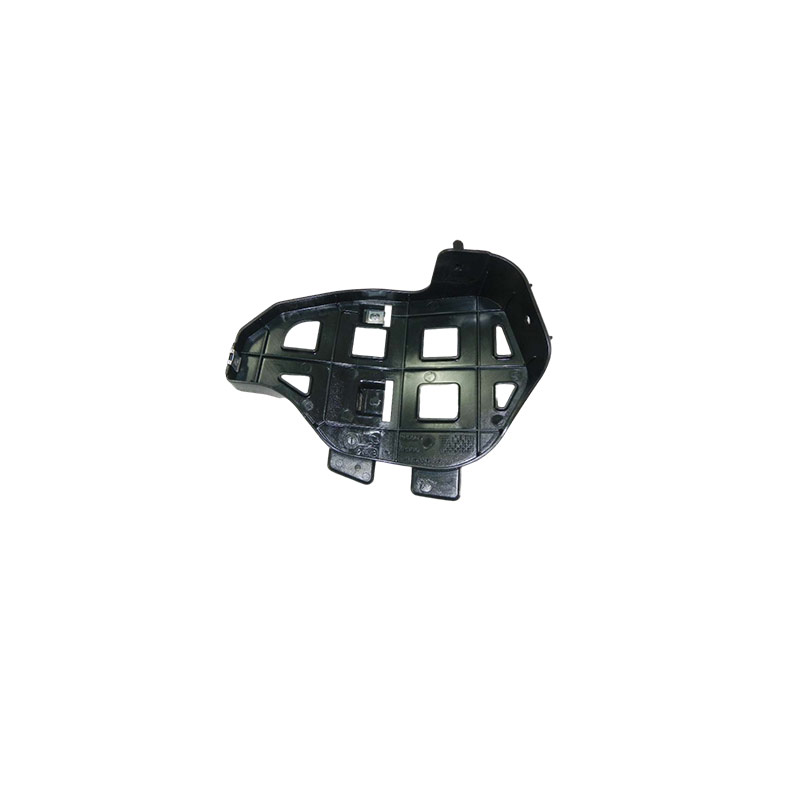

The Function and Fault Analysis of the Right Lower Support Frame Assembly of the Car Rear is the most crucial protective structure at the rear of the vehicle. To ensure that the rear insurance bumper fits the vehicle body tightly and is stable in force distribution， multiple small support frames are needed to distribute the force.
Among them， the right lower support frame of the rear insurance bumper is a key supporting component located at the lower right of the bumper. This small component hidden at the bottom of the bumper is rarely noticed by car owners， but it directly determines the installation stability and impact resistance of the right lower area of the rear insurance bumper. Clarifying the core function of the right lower support frame assembly， mastering the influence and handling methods of its common faults， can help car owners avoid major problems caused by small components and ensure the normal operation of the rear insurance bumper's protective function.
The core function of the right lower support frame assembly of the rear insurance bumper
The right lower support frame of the rear insurance bumper is mostly made of high-strength engineering plastics or lightweight stamping steel. One end is fixed to the right rear longitudinal beam or the underbody guard plate of the chassis， and the other end is connected to support the right lower skin of the rear insurance bumper. It is a key load-bearing component connecting the rear insurance bumper to the chassis. The core function mainly manifests in four aspects：
First， support the right lower area of the bumper to ensure installation accuracy. The rear insurance bumper is of a relatively long overall length. Only relying on the upper parts on both sides and the fixed points with the C-pillar of the vehicle body and the trunk lid cannot fully support the bottom area. Without additional support in the right lower position， it is easy to cause sagging or misalignment. The right lower support frame can lift the right lower skin of the rear insurance bumper from the bottom， precisely limit the installation position of this area， make the edge of the rear insurance bumper on the right lower side maintain uniformity with the side skirt and the rear fender， ensure the assembly accuracy of the rear end appearance， and avoid problems such as excessive gap at the bottom and asymmetrical sagging of the right lower area， maintaining the overall aesthetic of the rear end.
Second， distribute the force and enhance the overall stability of the bumper. During vehicle operation， the rear end will continuously be subjected to vibrations caused by road bumps. The right lower area of the rear insurance bumper is close to the wheels and will also be subjected to additional force from the impact of stones kicked up by the tires and road bumps. Without support from the support frame， long-term force application will cause the fixed clips of the rear insurance bumper to fatigue and break， resulting in the entire bumper loosening. The right lower support frame can distribute the force of the right lower area of the rear insurance bumper to the chassis structure， reducing the load on the upper fixed clips， improving the overall structural stability of the rear insurance bumper， and reducing the probability of loosening and sagging over time. During daily reversing， low-speed bumping， or collisions with raised obstacles， the support frame can also absorb part of the external force， preventing the rear insurance bumper from directly falling off and reducing the damage to the main body of the rear insurance bumper and the chassis.
Third， buffer and dampen vibrations， suppress abnormal sounds. The right lower area of the rear insurance bumper is close to the wheels， and the vibration amplitude during driving is greater. The right lower support frame itself has a buffer pad or relies on plastic elasticity deformation， which can absorb the vibration energy of the bumper， reducing the rigid collision between the right lower area of the bumper and the side skirt and the rear fender， avoiding resonance abnormal sounds at the right lower corner during driving on bumpy sections， and improving the interior quietness. At the same time， the support frame can fill the gap between the bottom of the bumper and the chassis， reducing wind noise caused by air flow entering the gap during driving， optimizing the NVH performance of the rear end.
Fourth， assist in buffering impacts and protect chassis components. When the vehicle reverses at low speed or collides with raised obstacles during driving， the right lower area is the first contact position with the impact. The right lower support frame can absorb part of the impact force through its own deformation， reducing the direct transmission of the impact force to the rear insurance bumper body and the chassis longitudinal beam， and also avoiding the deformation and squeezing of the chassis oil pipes and wiring harnesses by the right lower area of the bumper， protecting the core components of the rear chassis to a certain extent， and reducing maintenance costs. Even if the support frame is damaged by the impact， its replacement cost is much lower than that of the rear insurance bumper body and chassis components， equivalent to a low-cost protective buffer.
Common faults and handling of the right lower support frame assembly of the rear insurance bumper Due to its position close to the bottom of the chassis, it is constantly exposed to the erosion of road mud and water, as well as the impact of gravel and vibrations. As a result, the right lower support frame is prone to the following common faults:
The most common fault is impact fracture or deformation. Collisions with the shoulder during reversing, being pressed by raised obstacles during driving, or a low-speed rear-end collision at the right lower part of the vehicle can easily cause the right lower support frame to fracture under direct force, while the steel support frame may deform and bend. Once the support frame breaks, the right lower area of the rear bumper loses its bottom support and will visibly sag. During driving, it will produce resonance noise, and the noise will be particularly noticeable on bumpy roads. Long-term sagging will also cause the upper fixed clips of the rear bumper to be subjected to excessive force and fracture, and even cause the entire rear bumper to fall off. At the same time, it will also scrape the sidewall of the tires, posing safety risks. Such faults are generally unreparable and can be directly replaced with the original factory support frame for the corresponding model. The cost of the parts is mostly between 40 yuan and 150 yuan. During the replacement process, only the fixing parts on the right lower part of the rear bumper need to be removed, and then repositioned and installed. The process is simple, and the maintenance cost is very low.
The second common fault is loose and detached fixation. Long-term driving vibrations can cause the fixing bolts of the support frame to loosen and the clamps to age and break. In addition, the chassis is eroded by mud and water, causing the bolts to rust. This easily leads to the support frame detaching from the chassis or the bumper, losing its supporting function. If only the bolts are loose and rusted, cleaning the rust and re-tightening the bolts can be done; if the clamp breaks, replacing the corresponding plastic clamp can re-fix it, without the need to replace the entire support frame. The repair cost is extremely low. For some models, the support frame is fixed by welding. After impact, weld points may also become loose. Re-welding and reinforcing can restore its function.
The third fault is aging, rusting, and brittleening. The plastic support frame is exposed to high temperatures from the chassis and erosion by mud and water for a long time, resulting in aging and brittleness, with its strength gradually decreasing and gradually deforming. The steel support frame is prone to rusting. Rusting will gradually reduce the structural strength and even cause rust-through and rotting. Even if the aging and rusted support frame does not fracture, its strength is no longer sufficient to meet the supporting requirements. It is prone to sudden damage under force. Therefore, it is recommended to replace it in time when aging and rusting is detected to avoid sudden faults causing greater damage.
The fourth fault is caused by installation misalignment and resulting noise. After the rear bumper is disassembled and repaired, if the right lower support frame is not aligned with the positioning holes, it will cause gaps between the support frame and the bumper and the chassis guard plate, resulting in friction and collision during driving, causing noise. This fault does not require replacing components. Just loosen the fixing bolts, adjust the installation position of the support frame, align the positioning holes, and then tighten to eliminate the noise.
The right lower support frame of the rear bumper is a typical "hidden at the bottom, crucial in function" small component. Its cost is not high, but after the fault occurs, it will directly affect the stability of the rear bumper and even cause safety hazards. In daily driving, pay attention to avoiding hitting the right lower area against the shoulder when reversing. During regular maintenance, check the fixation and aging of the support frame. If there is fracture or loosening, replace it in time to avoid sudden faults causing greater damage.
