The Function and Fault Analysis of the Automotive Electronic Accelerator Pedal Assembly
Traditional automobiles mostly adopt pull-rope type accelerator pedals, where the throttle valve is directly controlled by steel wires to regulate the intake volume. With the development of automotive electronics, the electronic accelerator pedal has completely replaced the traditional pull-rope structure and has become a standard configuration for current fuel vehicles and electric vehicles. As the core component for drivers to control the vehicle's power output, the electronic accelerator pedal assembly directly determines the smoothness of the power response and also affects driving safety. Clarifying the core function of the electronic accelerator pedal assembly and mastering the troubleshooting methods for common faults can help car owners avoid risks in a timely manner and ensure driving safety.
The Core Function of the Electronic Accelerator Pedal Assembly

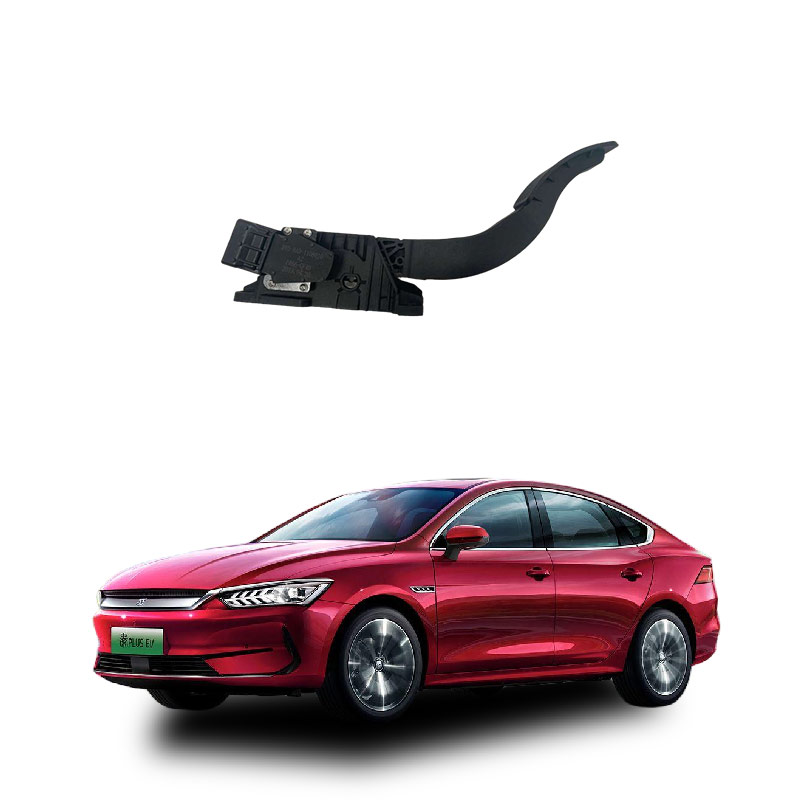

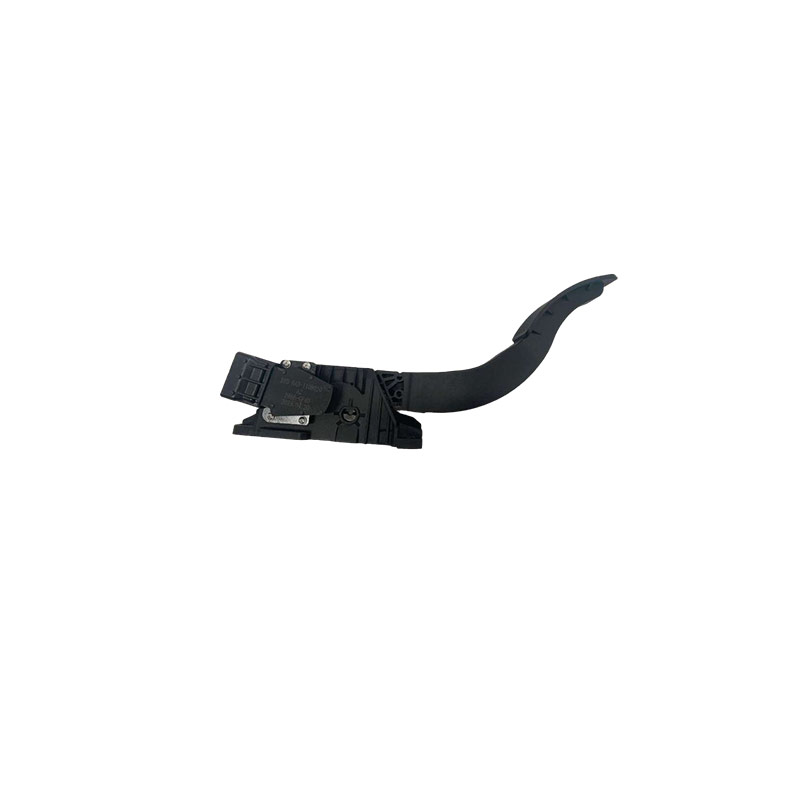

The electronic accelerator pedal assembly mainly consists of the pedal body, position sensor, return spring, and wiring interface. Some high-end models also integrate adjustable stroke motors and anti-slip modules. Its core function is different from the traditional pull-rope structure. It converts the driver's acceleration intention into an electrical signal and transmits it to the on-board control unit to achieve precise power control. Its specific functions are reflected in three aspects: First, precisely transmit the driver's acceleration intention. When the driver steps on or releases the pedal, the two position sensors inside the pedal will convert the pedal's stroke and stepping speed into corresponding voltage signals and transmit them to the engine ECU or the vehicle controller of electric vehicles. The controller will adjust the throttle opening (for fuel vehicles) or the motor output torque (for electric vehicles) based on the signals to achieve precise power control. Compared with the traditional pull-rope structure, the signal transmission accuracy of the electronic pedal is higher, which can more accurately match the driver's acceleration requirements. Moreover, to ensure signal accuracy, most electronic pedals adopt a dual-sensor design, with the two sensors' signals mutually verifying to avoid signal errors caused by a single sensor failure. Second, cooperate with the vehicle's electronic system to achieve multiple intelligent functions. The electronic accelerator pedal is the core input component of the vehicle's electronic control system. Combined with ESP, ACC adaptive cruise control, automatic parking, etc., it can achieve automatic power adjustment: when ESP detects that the vehicle is skidding, it will adjust the power output based on the pedal signal to prevent starting skidding; when the ACC adaptive cruise control is working, the system can directly adjust the power output without the driver stepping on the pedal, and can also recognize the driver's pedal operation in real time and quickly exit the cruise state; when the vehicle activates the automatic start-stop function, the electronic pedal signal can also determine the driver's starting intention and quickly start the engine to ensure smooth starting. In addition, the electronic pedal can also help achieve cruise control, slope assistance, and other functions, and is an indispensable signal input end for the intelligent driving assistance system. Third, optimize fuel economy and reduce emissions. The signal of the electronic accelerator pedal can be accurately identified by the control unit, and the control unit can combine the current vehicle's speed, load, and road conditions, etc., to more accurately control the fuel injection volume and intake volume, avoiding fuel waste caused by mechanical errors in the traditional pull-rope structure, helping the vehicle achieve better fuel consumption and reducing exhaust emissions, which complies with environmental protection standards. For electric vehicles, precise pedal signals can also help the control system optimize motor output and reduce unnecessary power consumption, improving the range.
Common Faults and Troubleshooting of the Electronic Accelerator Pedal Assembly
The electronic accelerator pedal is repeatedly stepped on and, due to being squeezed by the floor mat, eroded by dust and oil, several common faults are likely to occur: The most common fault is abnormal signal, and the power response is disordered. Aging sensors, carbon deposits inside the pedal, and worn contacts can all lead to inaccurate signal output, manifested as delayed power response after stepping on the pedal, or sudden increase in power when lightly stepping on the pedal, or unstable idle, or no response when stepping on the pedal. Some models will directly light up the fault indicator. For such faults where the internal contacts of the pedal are merely contaminated with oil, they can be resolved by removing the pedal, cleaning the contact points, and recalibrating. If the sensor itself is worn out or damaged, the entire pedal assembly needs to be replaced. After replacement, a diagnostic tool should be used to match the signals to ensure the output accuracy. The second type of fault is abnormal pedal return. The return spring undergoes elastic degradation due to long-term use, or the pedal shaft gets clogged with dust or the footpad presses against the pedal, causing the pedal to fail to fully return after releasing it. This results in the vehicle's speed not decreasing after releasing the accelerator, the idle speed being too high, and even the pedal may become stuck or jammed, seriously affecting driving safety. If the footpad is pressing or the shaft gets dusty, adjusting the position of the footpad, cleaning the shaft, and applying a special lubricant can solve the problem. If the return spring undergoes elastic degradation, simply replacing the spring is sufficient. The spring is relatively inexpensive and does not require the replacement of the entire pedal. The third type of fault is connection line faults. The wiring harness interface of the electronic pedal is prone to loosening and oxidation of the pins due to vibration and shock over time, leading to signal transmission interruption. This is manifested as the vehicle suddenly losing power, the fault light coming on, and the situation may return to normal after restarting. However, such faults may recur during driving. Generally, this type of fault does not require replacing the pedal; simply remove the interface, clean the oxidation layer of the pins, and reinsert and fix the interface. If the pins are damaged, the wiring harness interface needs to be repaired. The fourth type of fault is cracking or damage to the pedal shell. Prolonged use and temperature changes inside the vehicle cause the plastic pedal shell to age and crack, affecting the pedal's feel and potentially exposing the internal sensors, which can be damaged by dust. If the cracking does not affect the internal structure, it can be repaired by bonding; if the cracking is severe, the entire pedal assembly needs to be replaced. It is important to note that electronic pedal faults directly affect power output. Once there is abnormal power response, it is necessary to go to a repair shop and use a diagnostic tool to read the fault code, identify the cause of the fault, and do not drive with a faulty vehicle to avoid safety accidents. In daily driving, do not use overly thick foot pads to press against the pedal. Regularly clean the dust at the shaft position to effectively reduce the occurrence of faults and ensure stable and reliable power output.
