The Function and Fault Analysis of the Rear Crossbeam Assembly of the Car Roof
The rear crossbeam of the car roof is a horizontal supporting structure at the rear of the vehicle's roof cover, belonging to a hidden core component of the vehicle frame. It is usually not visible to the owners in their daily sight, but it is a key part that ensures the strength of the roof structure and the rigidity of the entire vehicle. Many car owners know very little about this component. In fact, it directly affects the overall stability of the vehicle body and the safety of passengers. Understanding its core function, grasping the hazards and handling methods of common faults, is crucial for ensuring the long-term safe use of the vehicle.
The Core Function of the Rear Crossbeam Assembly of the Roof Cover

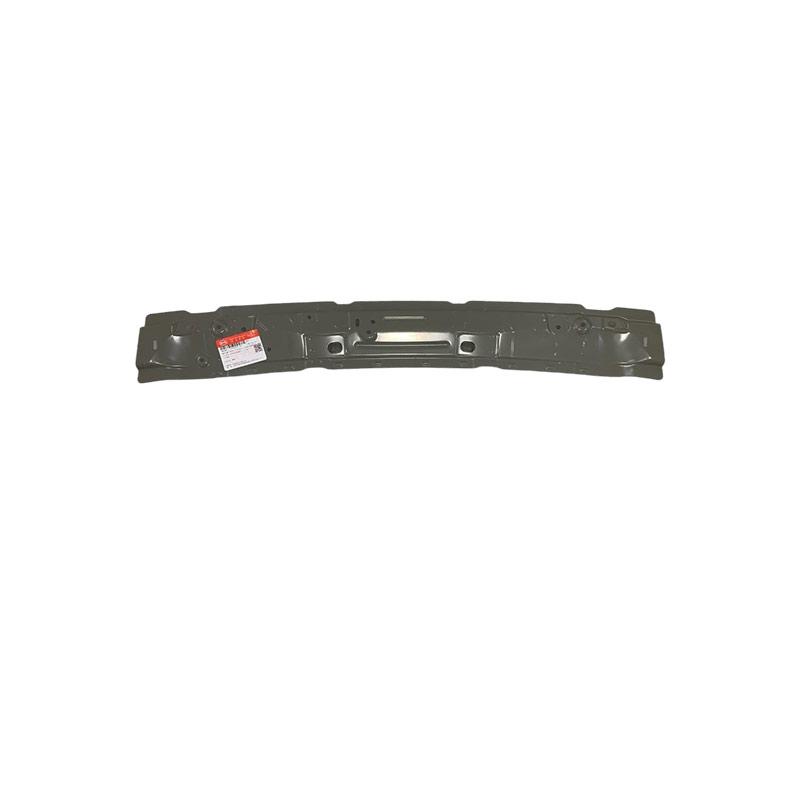

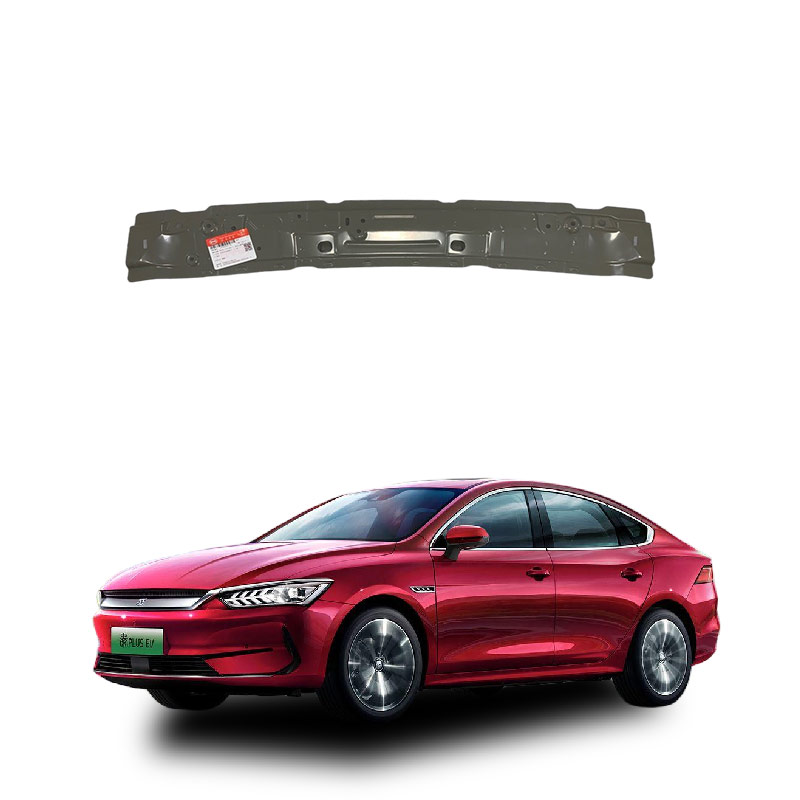

The rear crossbeam of the roof cover is generally made of high-strength steel or aluminum alloy by stamping. It horizontally connects the C-pillars on both sides of the vehicle and also connects the rear panel of the roof cover. It is an important component of the closed-loop structure of the vehicle frame. Its core functions mainly include four aspects: First, it enhances the overall rigidity of the vehicle body and prevents deformation. The vehicle body is a whole force-bearing structure. The rear crossbeam, as the horizontal support at the rear of the roof cover, can connect the left and right C-pillars into a stable whole, avoiding torsional deformation of the roof during long-term use. At the same time, it can increase the torsional stiffness of the entire vehicle, reducing the deformation amplitude of the vehicle body during cornering or driving on bumpy roads, and improving the driving stability and handling accuracy. For monocoque vehicles, the complete closed-loop structure of the frame is the foundation of rigidity, and the rear crossbeam is an indispensable horizontal connecting component of the closed-loop structure. Its absence or damage will directly lead to a decrease in the vehicle's rigidity. Second, it disperses impact forces and improves the safety of side and rear-end collisions. When a vehicle experiences a side collision, the impact force is transmitted through the B-pillar and C-pillar to the vehicle body. The rear crossbeam can disperse the impact force on one side of the C-pillar to the other side of the vehicle body, preventing excessive deformation of the single C-pillar from invading the passenger compartment and protecting the safety of the rear passengers. If a rear-end collision occurs, the rear crossbeam can also cooperate with the rear panel to absorb part of the impact force, reducing the transmission of impact force to the middle of the passenger compartment, reducing the harm to the occupants, and supporting components such as the rear lights and rear windshield, reducing the risk of component detachment after a rear-end collision. Third, it supports and fixes the functional components of the roof. Currently, the upper edge of the rear windshield, the roof spoiler, the rear inner lining, the high-position brake light, and even the rear end guide rail of the electric sunroof all need to be fixed on the rear crossbeam. The high-strength rear crossbeam can provide a stable installation foundation for these components, avoiding component loosening and displacement after long-term use. For example, the rear end support of the electric sunroof, without the reinforcement of the rear crossbeam, the sunroof is prone to sinking and abnormal noise during frequent opening and closing, affecting the service life of the sunroof. Fourth, it reduces the transmission of vibration and noise. After connecting the left and right C-pillars, the rear crossbeam can suppress the resonance of the C-pillars during driving, reducing the transmission of road vibrations to the roof, lowering the noise in the vehicle cabin, and reducing the resonance and resonance of the roof sheet metal, improving the interior quietness, and making the riding experience more comfortable. For SUVs and MPVs with large roof covers, the vibration-reducing effect of the rear crossbeam is more obvious, effectively avoiding obvious humming noises in the roof during high-speed driving.
Common Faults and Handling of the Rear Crossbeam Assembly of the Roof Cover
As a frame component of the vehicle body, the rear crossbeam itself has high strength and is unlikely to be damaged during normal use. Faults are mostly caused by collisions, production assembly problems, or rust. Common faults can be divided into three categories: The first category is deformation or fracture due to collision, which is the most common serious fault. If a vehicle experiences a rear-end collision or the rear part of the roof cover is hit, it is easy to cause deformation or even fracture of the rear crossbeam. Minor deformation will lead to a decrease in the rigidity of the vehicle body, increasing the twisting amplitude of the vehicle body during cornering and reducing the stability of the handling; Severe deformation or fracture will damage the closed-loop structure of the vehicle body frame, not only causing the rear windshield and sunroof to crack, but also making it unable to effectively disperse the impact force during a secondary collision, significantly reducing the overall safety performance of the vehicle. The handling of such faults requires judgment based on the degree of deformation: minor deformation can be restored to shape and position through sheet metal correction; severe deformation or fracture requires cutting and replacing a brand-new original factory rear crossbeam, and also requires four-wheel alignment and body size correction to ensure the installation accuracy meets the factory requirements. The second type is rust and decay, which is more likely to occur in old vehicles. When the drainage groove on the roof is blocked or the sealing glue ages and cracks, rainwater will seep into the connection between the rear crossbeam and the roof sheet metal, and long-term water accumulation will cause the rear crossbeam to start rusting from the inside, gradually forming decayed holes, reducing the structural strength. Initial rusting will only cause slight abnormal sounds on the roof, which is not easy to be detected. When the rusting is severe, the rear roof will sink at the tail, the gap between the rear windshield and the roof will widen, causing water leakage, and even local deformation of the roof. When dealing with such faults, mild rust can be removed and treated with anti-rust measures; if the rusted area exceeds one-third and decay has occurred, the component must be replaced in time to avoid insufficient strength causing safety hazards. The third type is abnormal noise caused by loose assembly. During vehicle production, if the connecting bolts between the rear crossbeam and the C-pillar, rear fender panel are not tightened, or the welding points fall off, after long-term driving and vibration, the connection will become loose. When the vehicle passes over bumpy roads, the rear crossbeam will rub and collide with surrounding components, generating low-frequency resonance abnormal noise, especially in the top area of the vehicle tail. The handling of this type of fault is relatively simple; re-tightening the connecting bolts, reinforcing the de-soldered position with welding, can eliminate the abnormal noise, and will not affect the structural strength of the vehicle body. The rear crossbeam of the roof is a typical "hidden but crucial" body component. In daily driving, it is necessary to avoid rear-end collisions, regularly clean the roof drainage groove to prevent rust caused by drainage blockage, and if you find roof deformation, abnormal sounds or water leakage problems, you should promptly check the status of the rear crossbeam. Small problems should be dealt with promptly to avoid small faults causing serious safety hazards and ensure the long-term stability and reliability of the vehicle body structure.
