The Function of the Right Positioning Block in the Front Module and Fault Analysis
The front module of a car is an integrated structure that combines multiple core components such as the bumper, radiator, headlights, and grille. To ensure the installation accuracy and operational stability of these components, the positioning block is an indispensable auxiliary component. Among them, the right positioning block, although small in size, directly affects the assembly accuracy of the entire front module and the performance of the entire vehicle. Understanding the core function of the right positioning block in the front module and grasping the influence and handling methods of common faults can help car owners detect problems in a timely manner and avoid major failures caused by small components.
The Core Function of the Right Positioning Block in the Front Module

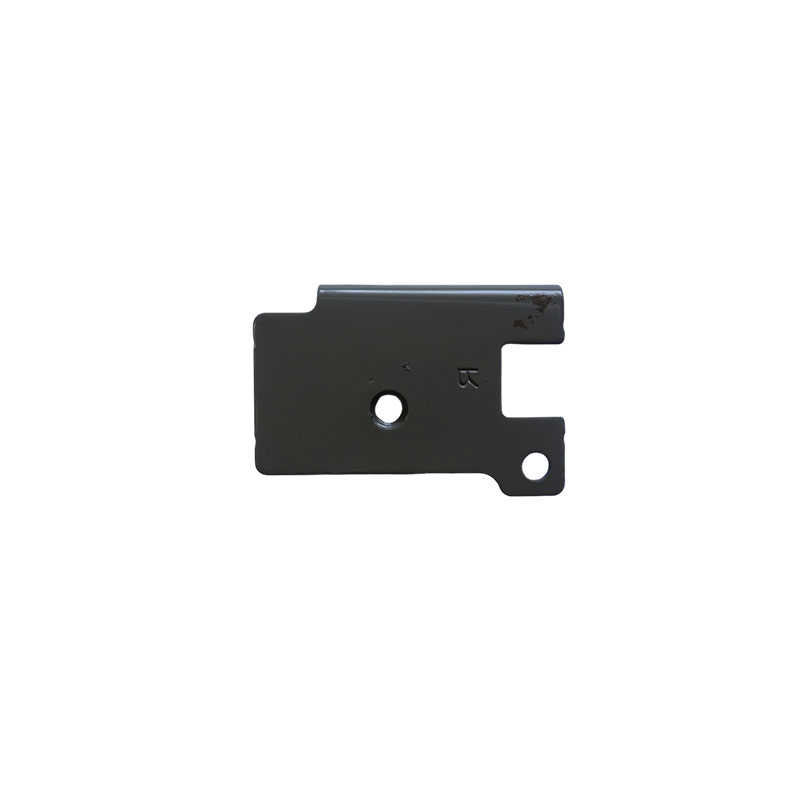

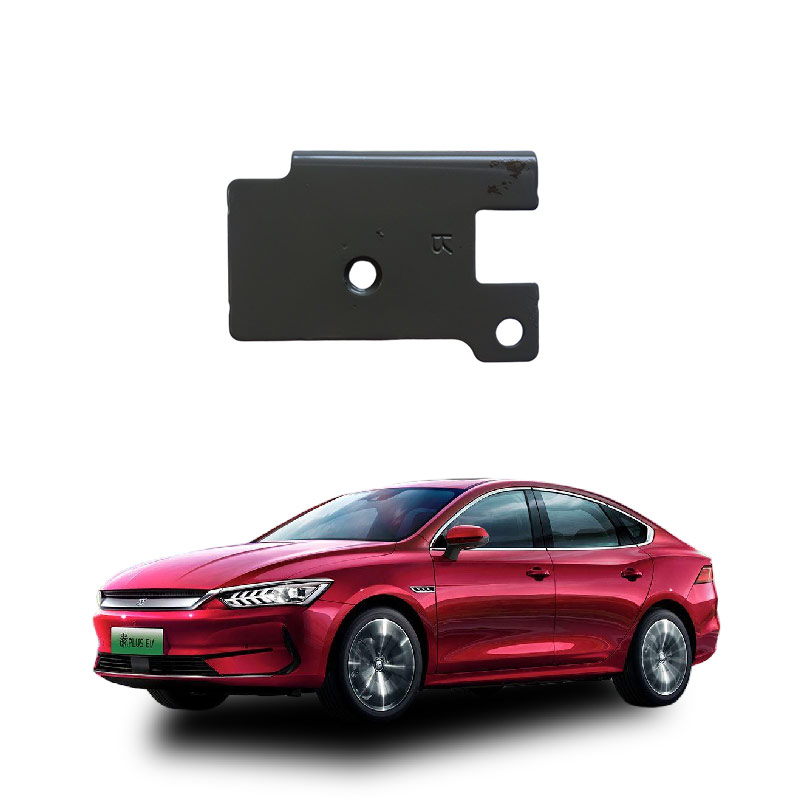

The right positioning block of the front module is mostly made of high-strength rubber or hard plastic and is fixed at the connection position between the front module and the body frame. Its core functions revolve around positioning, buffering, and protection. It is a key small component that ensures the stable operation of the front module: First, precise positioning to ensure assembly accuracy. The front module integrates dozens of components, and the relative positions of these components directly affect the assembly effect. For example, the gap between the headlights and the fender, and the alignment of the bumper and the grille, all require the positioning block to define the position. The right positioning block and the left positioning block cooperate to pre-limit the installation reference during the assembly of the front module, allowing the front module to quickly align with the body connection points, avoiding assembly misalignment, ensuring the uniformity of the gap and the consistency of the appearance of the front of the vehicle, and also reducing the probability of component misalignment during subsequent use. Especially in the current modular production, the accuracy of the positioning block directly affects the assembly efficiency and quality, and is an indispensable positioning reference for the installation of the front module. Second, buffering and shock absorption, absorbing driving vibrations. During vehicle operation, the front module will continuously be subjected to road bumps and vibrations generated by the engine. As an independent integrated structure, if it is directly connected to the rigid body, long-term hard contact will cause component wear and loosening. The positioning block can absorb vibration energy through its elastic deformation, reducing the rigid collision between the front module and the body, reducing vibration noise, and also protecting the precision components such as the headlights, radiator, etc. on the front module, reducing the impact of vibration on their service life. When the vehicle experiences low-speed collisions, the positioning block can also buffer the impact force, reducing the deviation of the overall position of the front module due to the impact, and reducing the difficulty of subsequent repair and correction. Third, limiting displacement and protecting surrounding components. During emergency braking or when driving on bumpy roads, the front module will experience a slight displacement due to inertia. The right positioning block can limit the displacement range of the front module, preventing excessive displacement that could cause interference between the radiator and the fan, pulling of the wire harness of the headlights, or misalignment and scraping of the bumper against the tires, ensuring that all components are always in a safe working position. In addition, the positioning block can fill the assembly gap between the front module and the body, reducing the noise caused by air intrusion during driving, and further enhancing the structural stability of the front of the vehicle.
Common Faults and Effects of the Right Positioning Block in the Front Module
Due to the long-term pressure and vibration, combined with material aging, after a period of use, the right positioning block is prone to the following types of faults: The most common is aging, damage, and deformation. Rubber materials of the positioning block are exposed to engine high temperatures and outdoor ultraviolet radiation, resulting in aging cracking, hardness reduction, or deformation. Hard plastic materials are prone to brittle cracking. Deformed positioning blocks cannot maintain the original positioning accuracy, causing the front module to shift to the right, resulting in misalignment of the headlights, uneven gaps between the bumper and the fender, affecting the appearance, and in severe cases, causing the headlights to have an offset angle, affecting night driving safety. The second type of fault is detachment of the fixation. The positioning block is generally fixed to the body through clips or bolts. Long-term vibration can cause the clips to break and the bolts to loosen, eventually causing the positioning block to fall off and lose its positioning function. When the positioning block falls off, the right side of the front module loses support. During driving, there will be obvious resonance and abnormal noises. The noise will be more pronounced when passing through bumpy sections. Long-term loosening will also cause the connecting bolts of the front module to be fatigued and worn, increasing the risk of component detachment. The third type of fault is displacement and damage after impact. If there is a scratch or low-speed collision on the right side of the vehicle head, it is very likely that the right positioning block will directly break or shift. Even if the appearance of the bumper is not obviously damaged, the positioning block may already be damaged. In this case, the positioning reference of the front module has become invalid. Long-term use will cause the radiator fixing bracket to crack due to uneven force, and even affect the normal operation of the condenser, increasing the probability of air conditioning system failure.
For different faults, the handling methods are relatively simple: slight deformation does not affect the positioning accuracy, so it can be observed and used; aging cracking, detachment or impact damage can be directly replaced with the corresponding model of positioning block. The cost of the parts is usually only a few dozen yuan, and the replacement process is not complicated. After replacement, repositioning the front module position can restore normal function.
The right positioning block of the front module of the car is a typical "small component with a big effect". During daily maintenance, pay attention to checking its aging and fixation conditions. In case of failure, replace it in time. This can ensure the stable operation of the front module at a very low cost and avoid more serious damage to the body components caused by small components.
