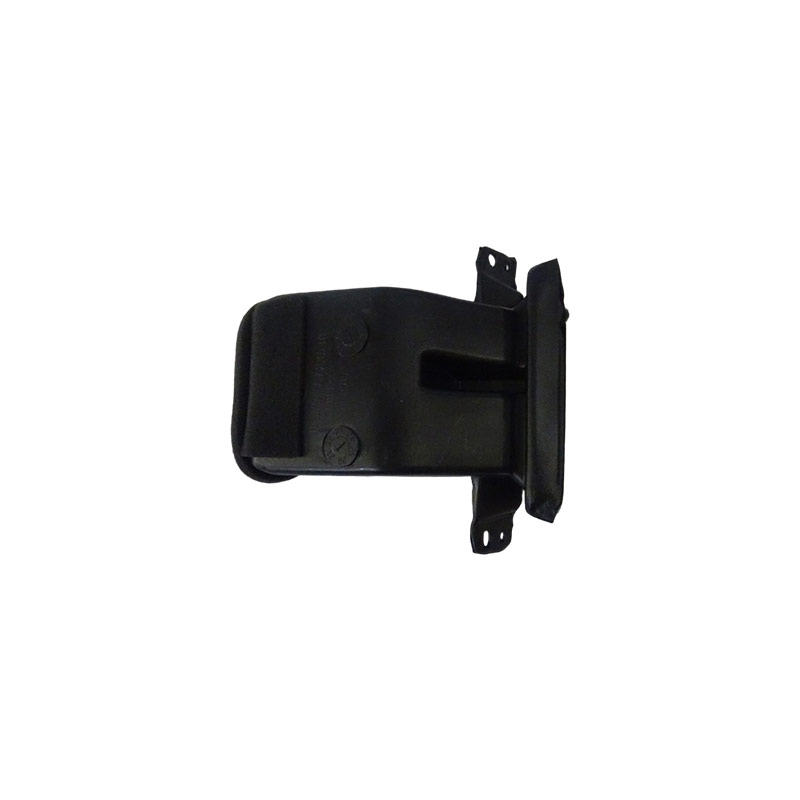

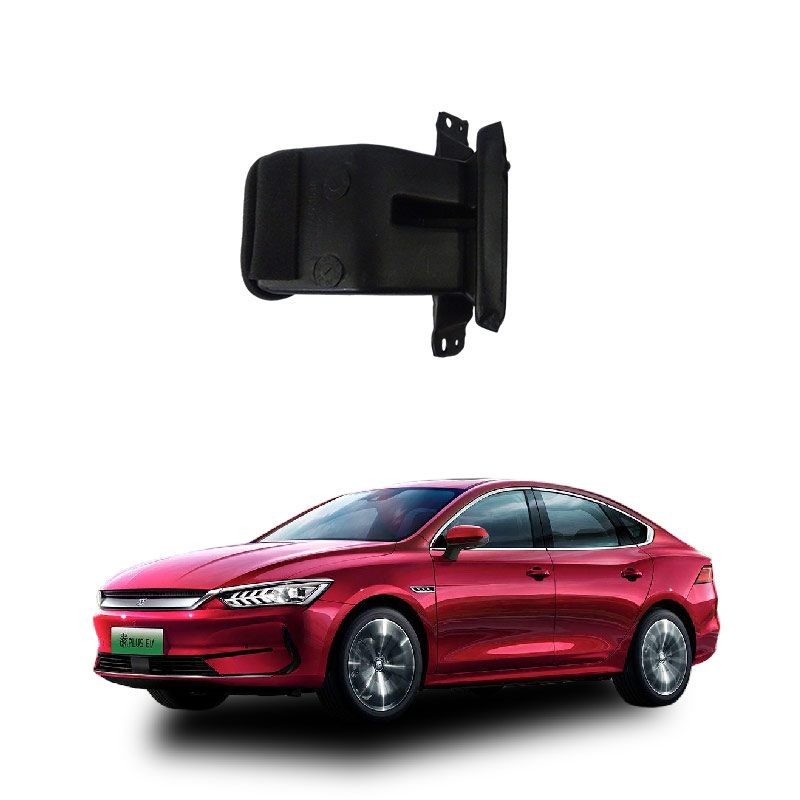

The Function and Fault Analysis of the Rear Air Conditioning Blowing Surface Air Duct Assembly
With the upgrade of automotive configurations, rear independent air conditioning has become a standard feature for many vehicle models. The rear air conditioning blowing surface air duct assembly, as the key structure connecting the air conditioning unit and the rear exhaust outlets, has a direct impact on the comfort of passengers in the rear seats. Understanding the core function of this assembly and mastering the troubleshooting methods for common faults can help car owners promptly solve rear air conditioning problems and enhance the driving experience.
The Core Function of the Rear Air Conditioning Duct Assembly
The essence of the rear air conditioning blowing surface air duct assembly is the "transportation channel" for air. It is an indispensable component of the rear air conditioning system. Its core functions mainly lie in three aspects: First, it precisely delivers cold and hot air to ensure a balanced temperature in the rear area. The evaporator and blower of the air conditioning are mostly located below the instrument panel. After being cooled or heated, the air needs to pass through the duct to be delivered to the rear passenger area. The reasonable layout design of the duct assembly can reduce the loss of air volume during transportation and deliver the preset temperature air stably to the rear exhaust outlet, ensuring uniform temperature in the front and rear areas of the vehicle and avoiding the temperature difference problem of "front area too cold and rear area too hot". Second, it meets personalized temperature control needs and enhances passenger comfort. Currently, most vehicles that support rear independent air conditioning have a duct assembly that cooperates with independent air vents and air volume control structures. Passengers in the rear can adjust the air volume and direction independently without changing according to the settings of the front air conditioning, meeting the body sensation needs of different passengers. For multi-member long-distance travel, this personalized adjustment ability can significantly improve the comfort of passengers in the rear. Third, it assists in dehumidification and ensures driving safety. Some vehicle models' rear ducts also have reserved interfaces for side window dehumidification, cooperating with the main ventilation channel to direct air to the rear side windows. In rainy and foggy weather, the ducts can quickly blow away the fog on the rear side windows, facilitating passengers to observe the rear road conditions and improving driving safety.
Common Faults and Their Effects of the Duct Assembly
As a plastic structural component used for a long time, the rear air conditioning duct assembly is affected by the usage environment and vehicle vibrations, and is prone to the following types of common faults: Firstly, pipe blockage, which is the most common type of fault. During vehicle use, dust and debris will enter the duct through the rear exhaust outlet. Over time, the accumulation of these particles will cause the duct to narrow or even become clogged. This not only significantly reduces the exhaust volume from the rear but also allows dust and mold to grow in the duct, resulting in an unpleasant air quality inside the vehicle. Secondly, duct leakage. This is also the main cause of no air or low air volume in the rear. The duct is mostly made of plastic and will be loosened and the sealing rubber strips will age due to long-term vibration of the vehicle. Or the plastic duct will age and develop cracks and damages, causing the air that should be delivered to the rear to leak from the damaged or loose areas. Eventually, the air volume reaching the rear exhaust outlet will significantly decrease, even if the air conditioning air volume is turned to the maximum, the rear still cannot feel a significant air flow. Thirdly, structural loosening causing abnormal sounds. The fixing clips of the duct will age and break over time, causing gaps between the duct and the surrounding interior, the frame, etc. When the vehicle travels on bumpy roads, the duct will collide with surrounding components due to vehicle vibration, generating continuous resonance sounds, affecting the interior quietness. In addition, the aging and stuck rotation shaft of the air door in the duct assembly, or the failure of the motor or pull wire controlling the air door, will cause the air door to fail to open and close normally, resulting in the inability to adjust the air volume or even directly causing the rear exhaust outlet to have no air flow.
Daily Prevention and Handling of Faults To extend the service life of the air duct components, regular maintenance is crucial: It is recommended that car owners clean the air ducts once a year, replace the air filter every 1-20,000 kilometers to prevent dust and debris from entering the ducts; inspect the air duct connections and fixing clips every six months, and tighten them promptly if they are loose to avoid damage caused by long-term vibration. If there is a malfunction, minor blockages can be cleared with professional duct cleaning agents, loose interfaces can be re-tightened and sealed, and if the duct is damaged, the fixing clips are broken or the air door control mechanism fails, it is recommended to replace the corresponding components at a professional repair shop to restore the normal operation of the rear air conditioning.
Although the rear air duct components of the car have a simple structure, they directly affect the comfort of the rear passengers. If maintenance is done properly on a daily basis, the probability of faults can be significantly reduced. After a problem occurs, precise troubleshooting can be carried out to solve the problem at a lower cost and ensure the overall comfort experience inside the vehicle.
