What are the upper components of the car dashboard?

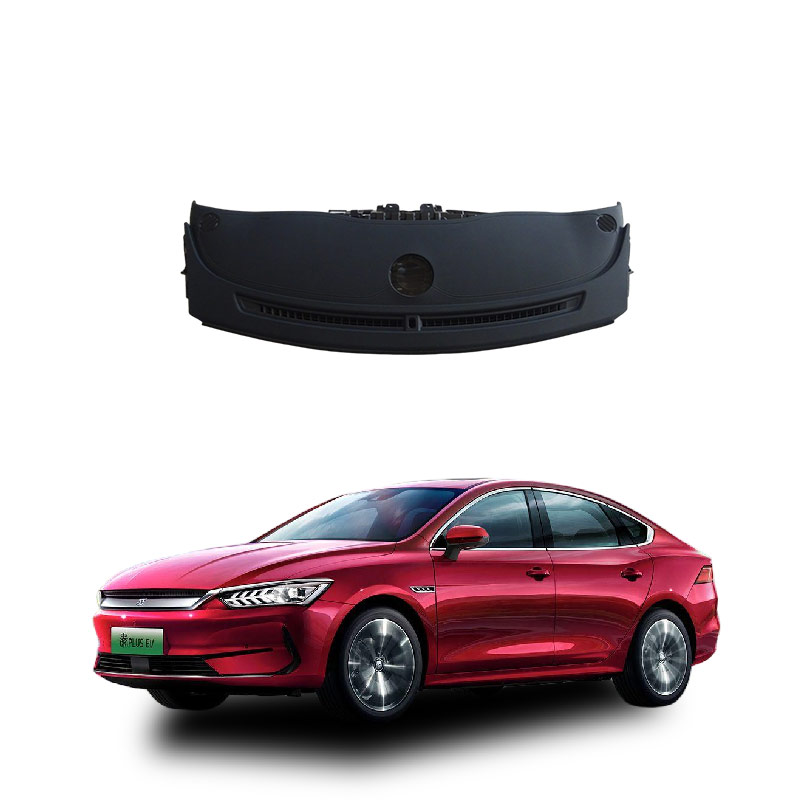

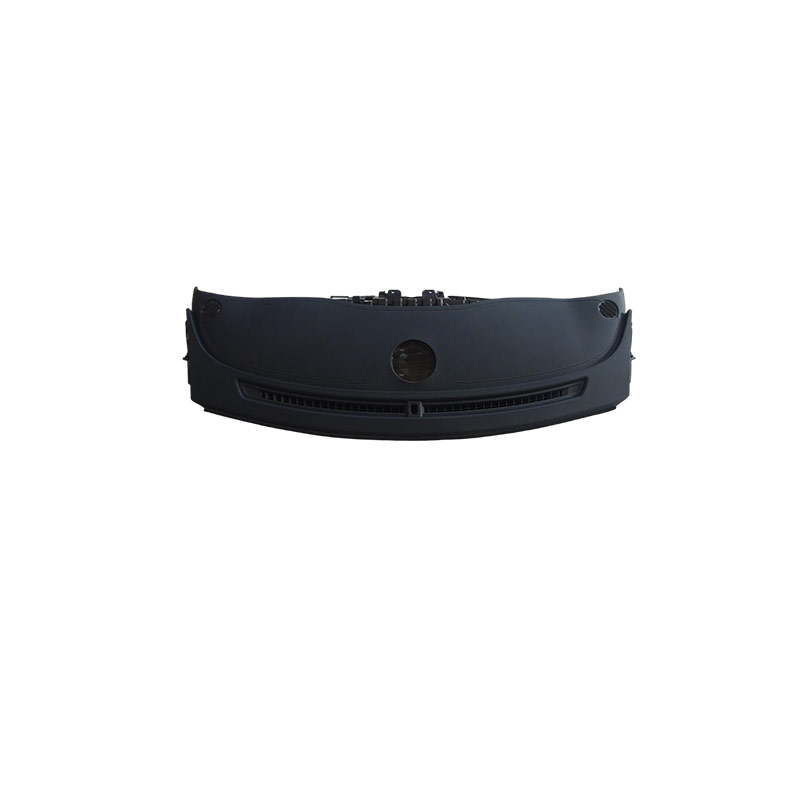

The upper components of the car dashboard are usually referred to as "dashboard housing" or "upper body of the dashboard", which is the top structural part of the dashboard assembly (Instrument Panel Assembly). It mainly covers the dashboard cover, airbag installation area, upper part of the air outlet, the decorative panel at the transition with the front windshield, etc.
Dashboard Housing (Upper Shell): Supports and integrates the dashboard, the instruments in the driver's main view area, warning lights, and some control units. It often includes the installation points for the front passenger side airbag.
Dashboard Cover/Outer Layer: A soft or hard decorative panel (PVC/TPO/foam material) covering the surface of the upper shell, affecting the feel and visual style.
Integrated Components: May include air conditioning outlets (upper row), ultraviolet/light sensors, speakers, defogging outlets, and decorative strips connecting to the windshield.
Structural Association: Connected to the dashboard crossbeam and pipe beam to form part of the rigid front frame of the passenger compartment, and having functions of collision energy absorption and decoration.
Note: "Dashboard" is a total assembly concept, and "upper" here is not an independent part but refers to the top area in front of the driver's seat relative to the auxiliary dashboard (central console/central aisle area); it is also commonly referred to as "dashboard" in daily language.
The upper components of the car dashboard (usually referring to the upper part of the dashboard body, covering the instrument area and the lower end area of the windshield) mainly serve to: centrally display critical driving information, integrate some control functions, and also take into account safety protection and ergonomic layout.
Information Display Core: Install speedometers, tachometers, fuel/water temperature and other traditional instruments or digital displays, providing real-time feedback on vehicle operation status, and alerting abnormalities through warning lights (such as airbag, ABS, oil pressure, etc.).
Control Integration Area: Often includes air conditioning outlets, temperature control knobs/touch areas, light/wiper control switches, driving mode selection, etc., facilitating driver operation without significantly shifting their gaze from the front.
Safety and Structural Functions: As the upper support of the dashboard assembly, it is connected to the A-pillar of the vehicle body and the lower crossbeam of the front windshield, participating in collision energy absorption (especially protecting the knees/heads of the occupants in frontal collisions), and providing an installation base for the airbag on the passenger side (if present).
Human-Computer and Comfort Design: Optimizes the surface and materials (such as soft foam/foam layer), reduces glare, and improves touch sensation; often sets up sunshade brackets or sensors (such as rain/illumination sensors) on the top, and some models integrate HUD projection areas or cameras.
Cable and Module Carrier: Accommodates the wiring of the instrument area, some interfaces of the vehicle control module (BCM), and CAN bus branches, supporting the stable operation of electronic systems.
It should be noted: "Upper part of the dashboard" in engineering context usually refers to the instrument area (Instrument Panel Cluster Area) of the main dashboard assembly, not including the auxiliary dashboard (central aisle/center console area); its design strictly follows the "H point" and "eye ellipse" standards for the driver's view, ensuring that critical information can be read without significant eye movement in a normal sitting position.
"Faults of the car dashboard upper components" usually refer to abnormalities of the dashboard assembly (combined instruments) or its associated circuits/sensors. Common causes include fuse blowouts, loose connectors, short circuits/open circuits, dashboard motherboard failures or CAN communication interruptions, and require reading fault codes before troubleshooting.
Priority check: Check if the fuse related to the dashboard (usually in the cockpit or engine compartment fuse box) has blown; if it has blown, replace it with a fuse of the same specification and check the source of the short circuit.
Disconnect the negative terminal of the battery and check if the connector at the rear of the dashboard assembly is loose, oxidized, or has bent pins; reinsert it tightly and clean. If the instrument panel is partially or completely blacked out, the pointers are shaking, or the warning lights are constantly on, it may be due to damage to the internal regulator/motherboard, or poor power supply/grounding (such as corrosion of the common grounding point).
Modern vehicle instruments rely on CAN bus communication. If the instrument fails to communicate with the ECU, ABS, etc. (such as the "CAN communication lost" fault code), a diagnostic tool should be used to test the network voltage and terminal resistance (usually around 60Ω).
Avoid disassembling the instrument assembly by yourself. The internal precision components (such as stepper motors, LCD screens, PCB boards) are prone to permanent damage due to static electricity or improper operation; if a hardware fault is confirmed, it is recommended to replace the assembly and match the mileage (for some models, programming is required).
If only some indicator lights are not lit or display abnormally (such as incorrect oil level or water temperature), it may be due to the failure of the corresponding sensor (such as the fuel pump float, water temperature sensor), not a problem with the instrument itself.
If the fault is accompanied by specific warnings such as the "engine check light" and "brake system", prioritize troubleshooting according to the corresponding system (such as brake fluid level, wheel speed sensor); if the instrument is completely unresponsive (black screen + no backlight), first confirm whether the battery voltage is ≥ 12V and whether the ignition switch signal is normally input to the instrument.
Do not continue driving if there are accompanying symptoms such as sudden engine stall, failure of braking/steering assist, etc.; only showing non-critical lights (such as exterior light failure) can be cautiously driven for a short distance, but quickly use an OBD2 diagnostic tool to read the specific fault codes (such as P0500, U0423, etc.) to locate the root cause. It is recommended to contact the brand's after-sales service or a professional electronic control repair shop for handling. The instrument assembly involves vehicle safety, and non-professional operation is prone to cause greater risks.
